DTP0-150-18T-FG-DG

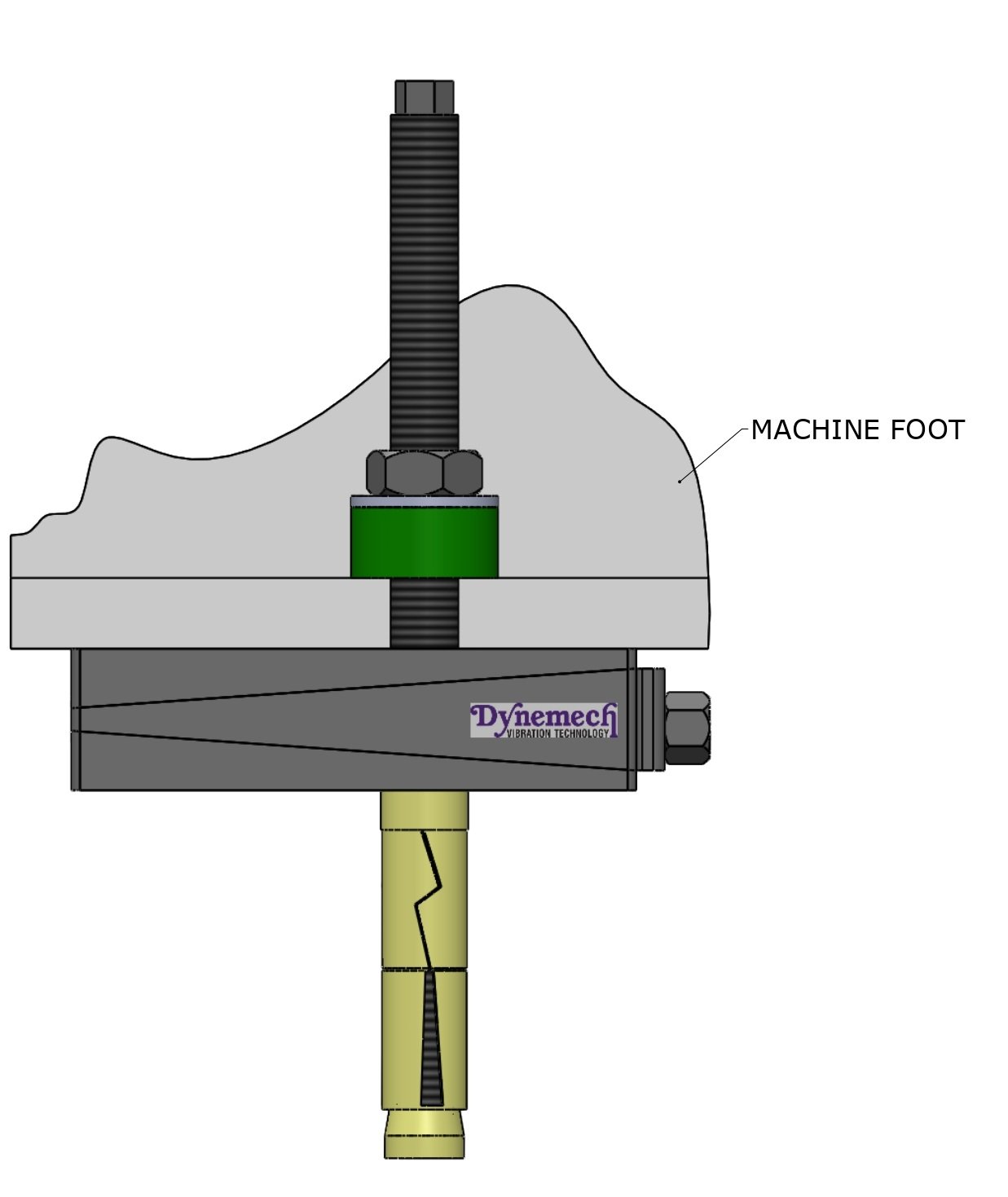

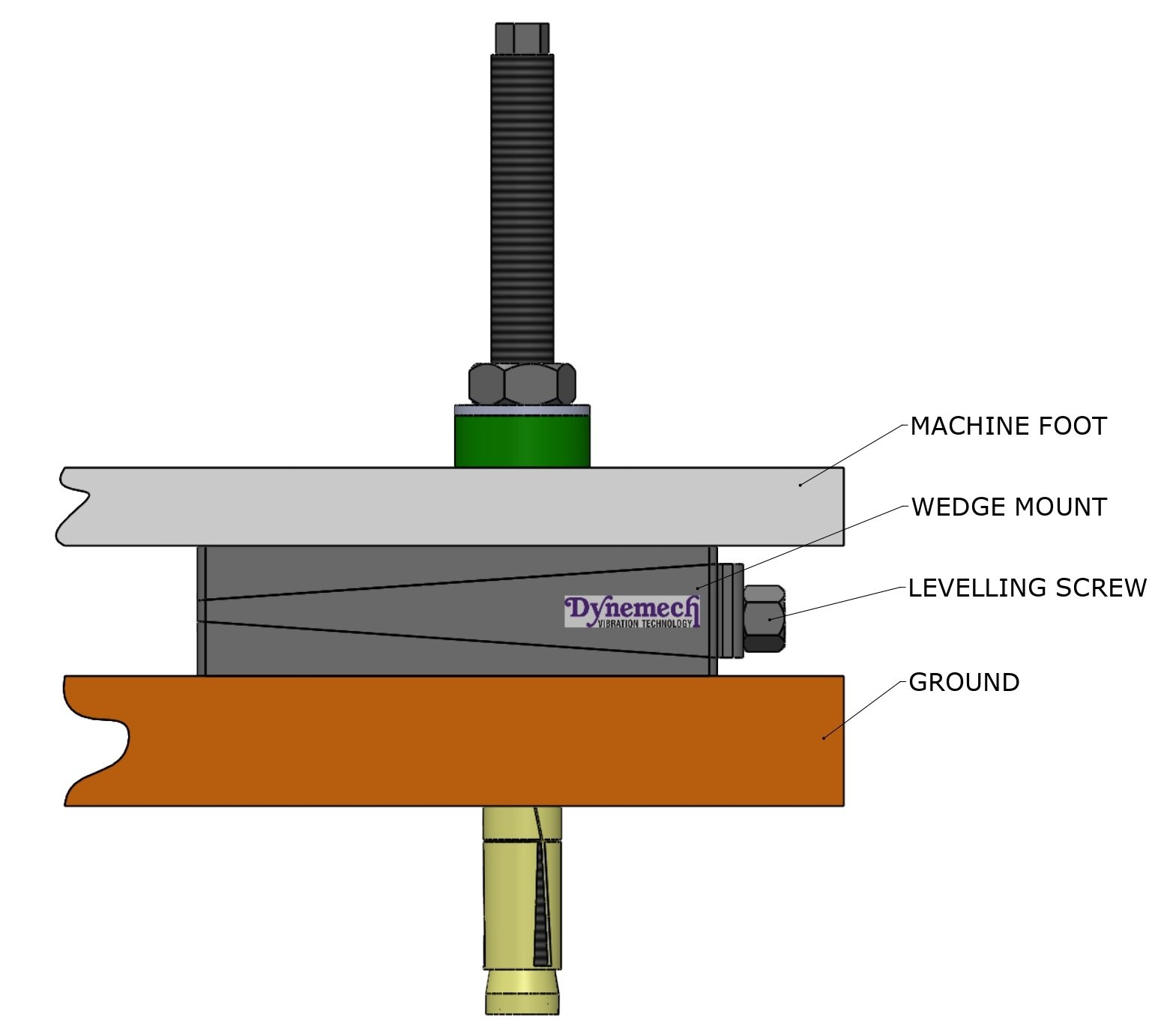

Dynemech Wedge mounts, Series DTP have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DT.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precicion Machines. |
| Load Capacity (Kg/Pc) | 2600 |

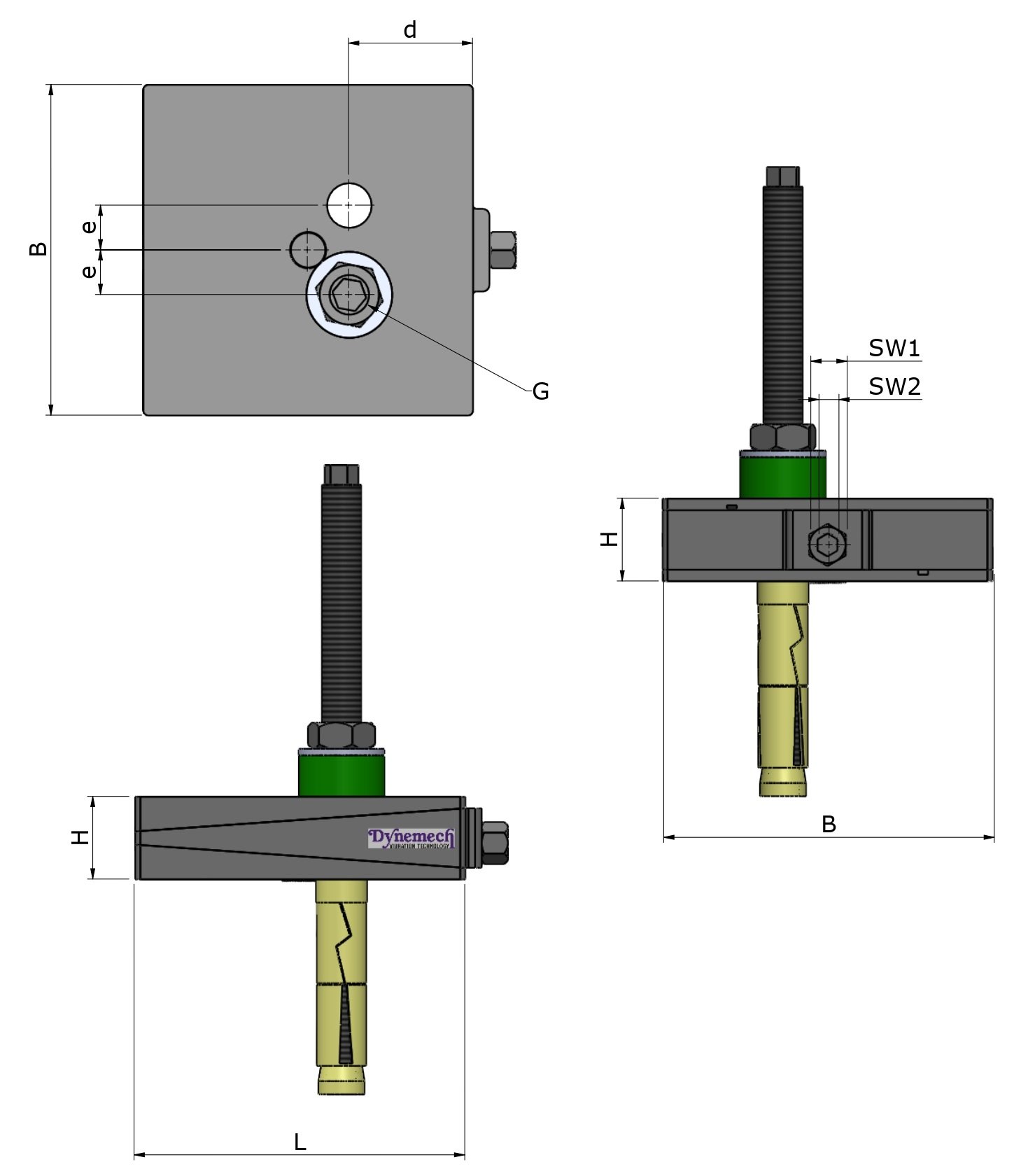

| Length L (Mm) | 100 |
| Width B (Mm) | 100 |
| Height H At Mean Position (Mm) | 150 |

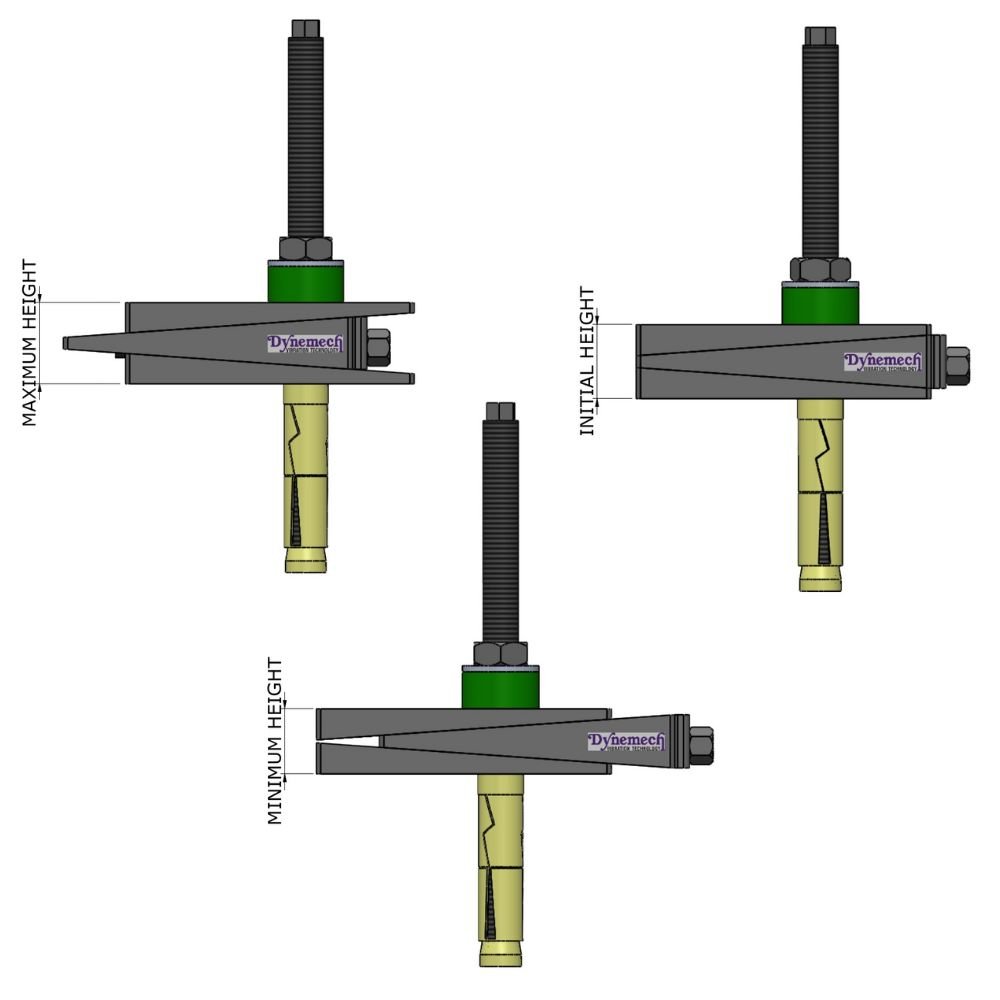

| Adjustment Range (Mm) | +3/-3 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Temperature Range (°C) | From -15 to 80 |
| Color | Dark Grey/Green |
| D (Mm) | 42 |
| E (Mm) | 23 |
| Bore G (Mm) | 18 |
