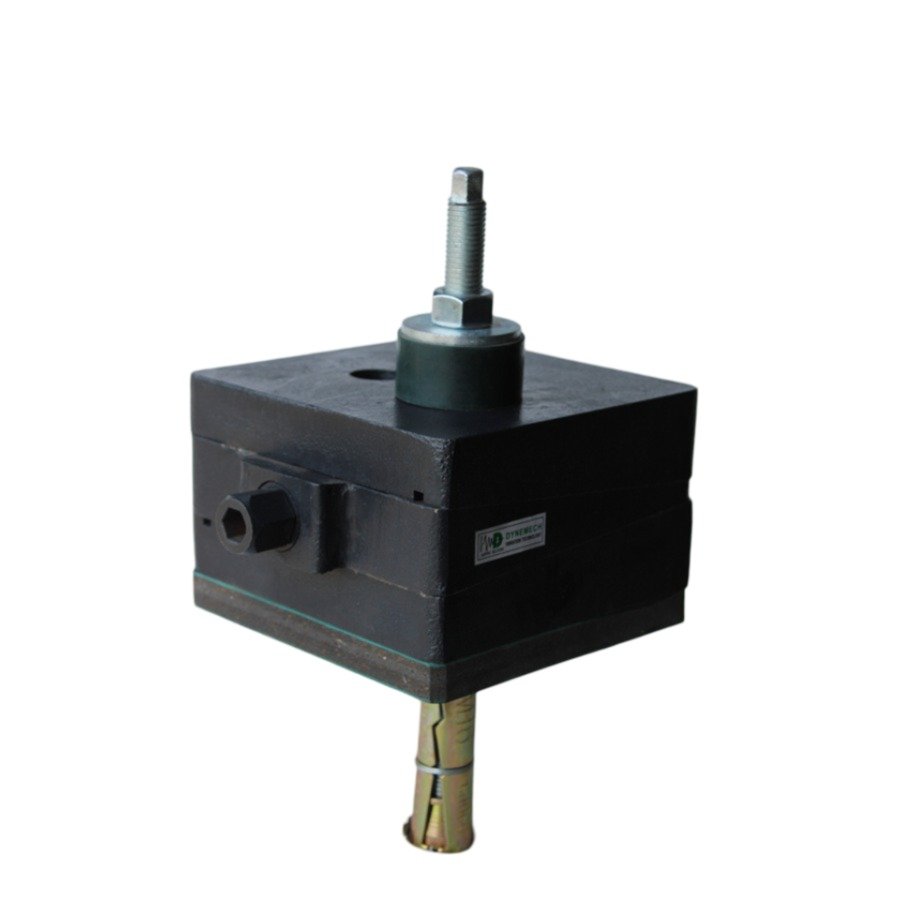

DTP5-m-150-28T-FG-DG
Dynemech Wedge mounts, Series DTP have a height of 150mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DT.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact. |
| Load Capacity (Kg/Pc) | 8000 |

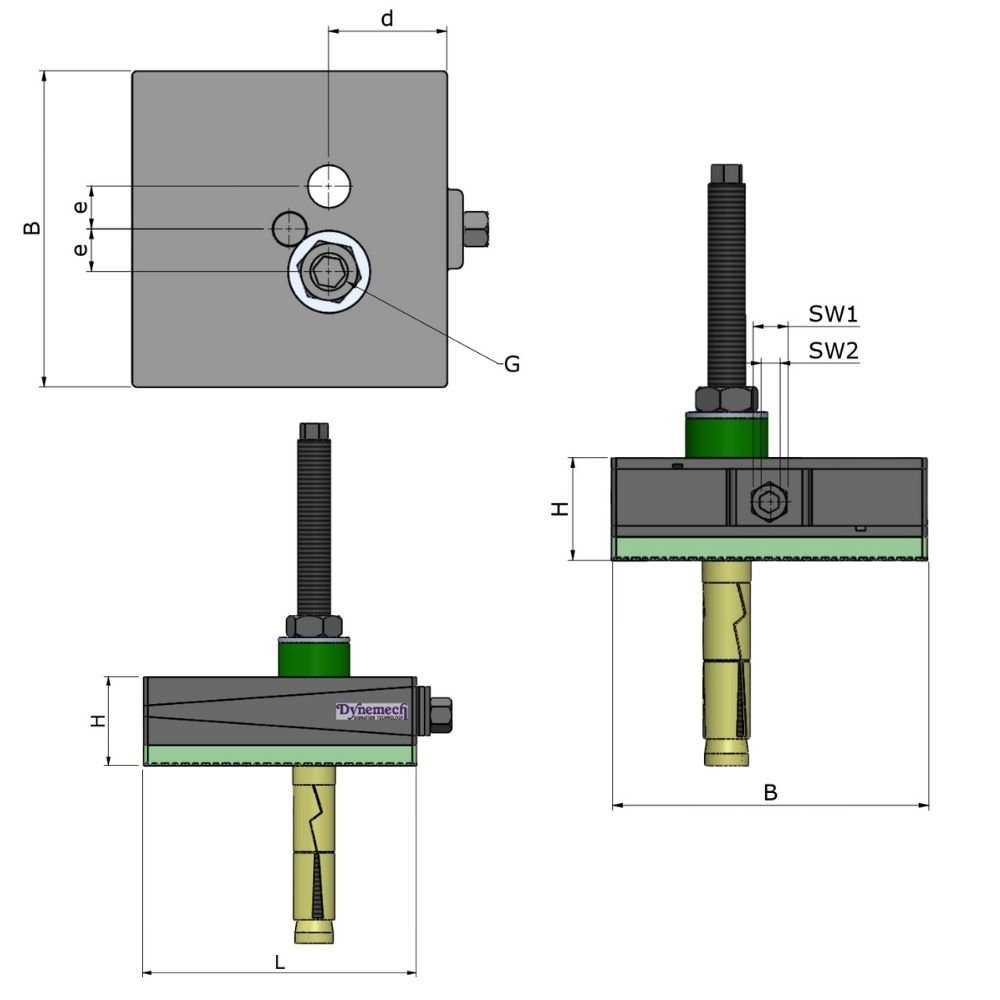

| Length L (Mm) | 250 |
| Width B (Mm) | 320 |
| Height H At Mean Position (Mm) | 150 |

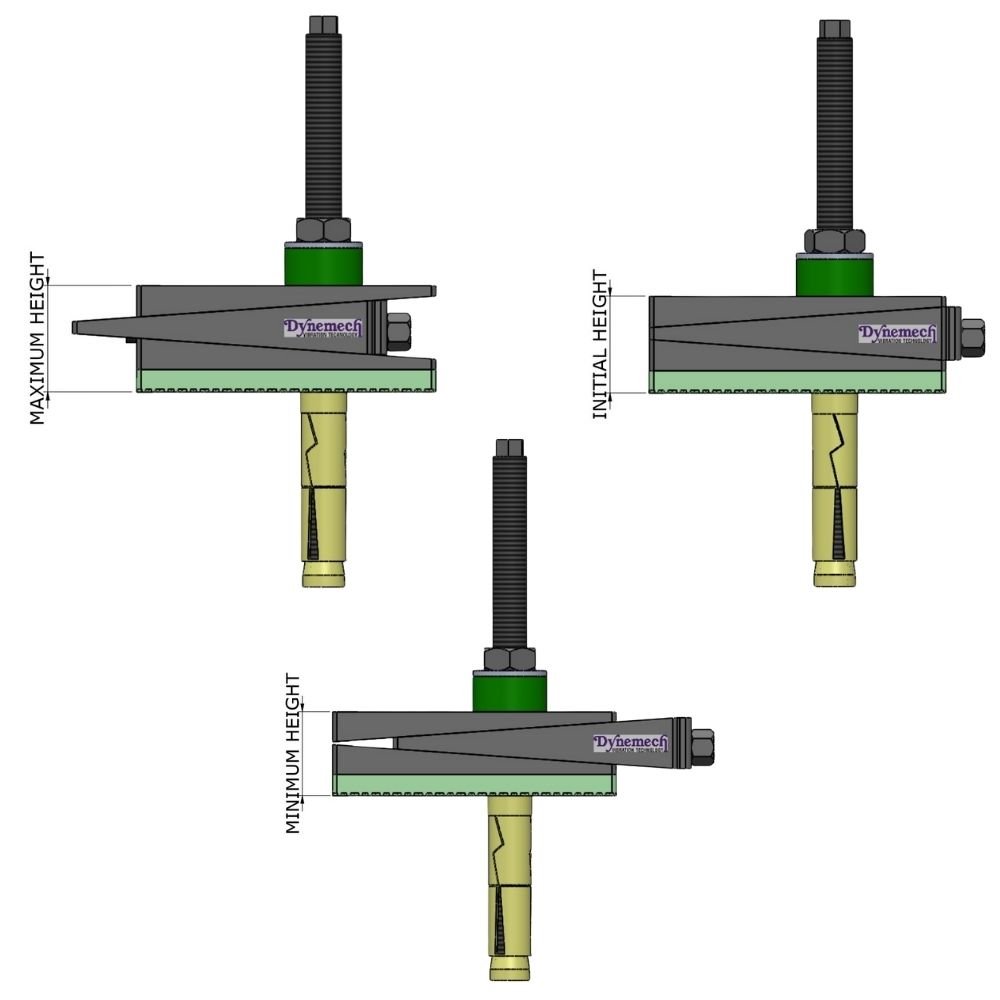

| Adjustment Range (Mm) | +9/-9 |
| Bottom Pad Type | Dm |
| Bottom Pad Thickness (Mm) | 15 |
| Sw1 (Mm) | 32 |
| Sw2 (Mm) | 18 |
| Coeff Of Friction Against Concrete | 0.7 |
| Natural Frequency At Max Load (Hz) | 30 |
| Temperature Range (°C) | From -15 to 80 |
| Color | Dark Grey/Green |
| D (Mm) | 125 |
| E (Mm) | 55 |
| Bore G (Mm) | 28 |
