DLC-p2

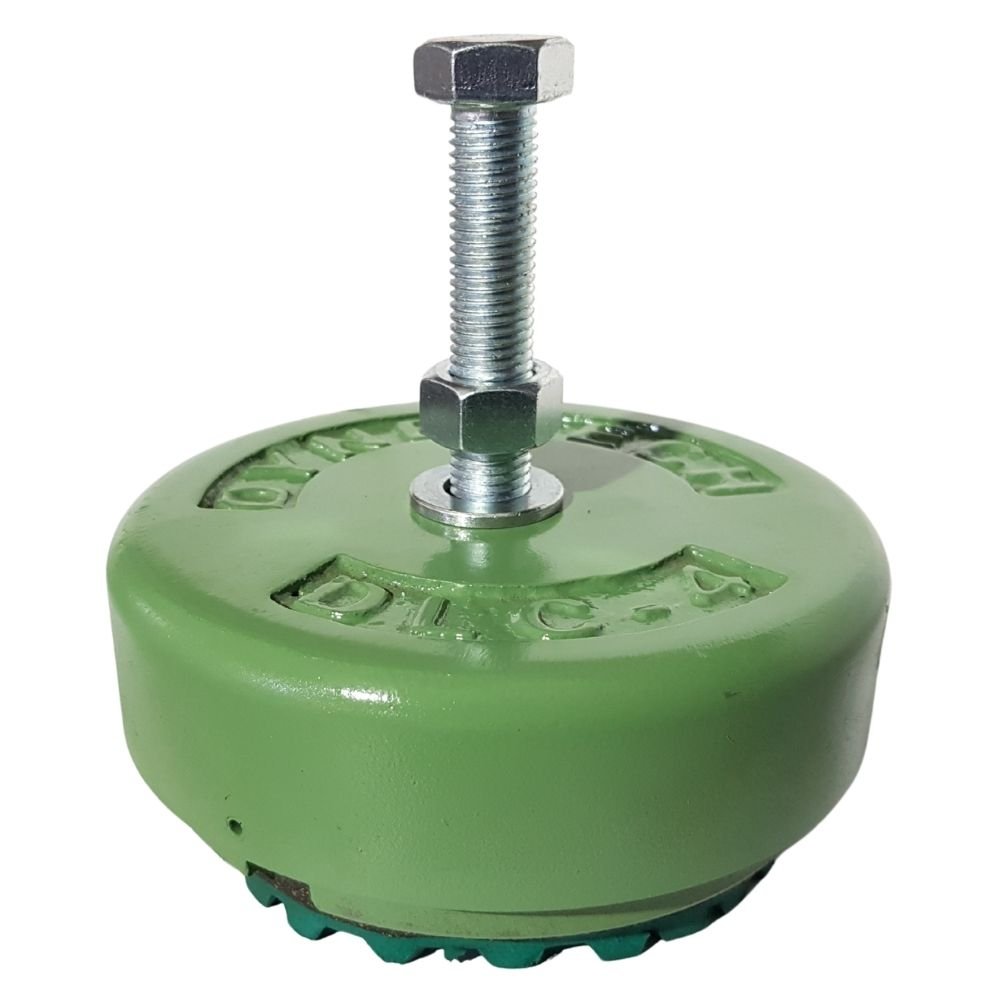

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Suitable for passive vibration control of Measuring & Testing Machines; maintains machine stability along the vibration reduction.
9 Models

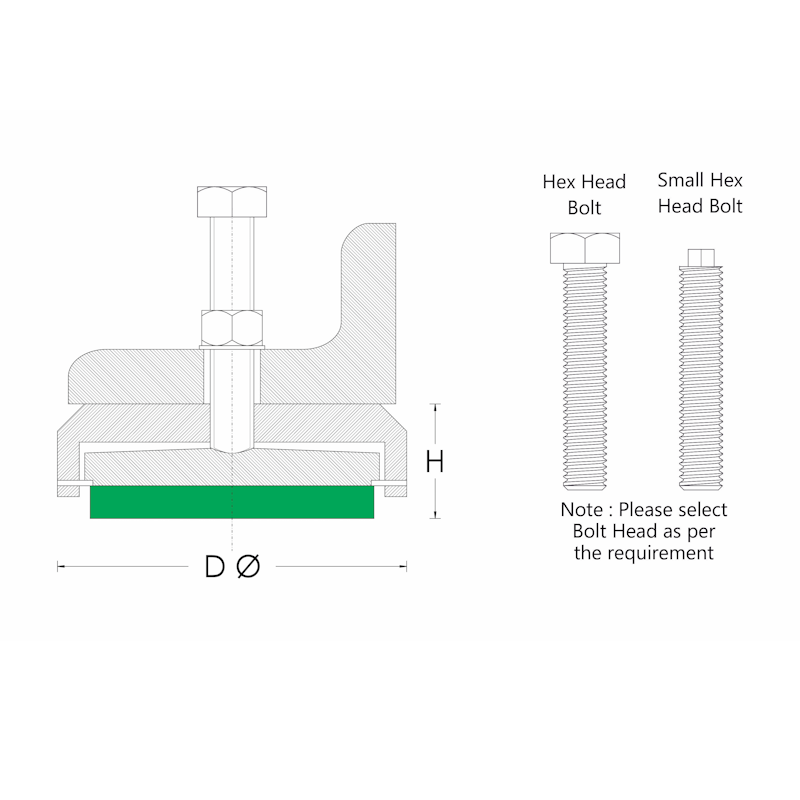

| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-p2-M12x1.75x100-B-Z-GR | 80 | 65 | 35 | M12X100 | +3 | M10/12/16/20 | 0.8 | 12 | From -16 to 90 |
| DLC2-p2-M12x1.75x100-B-Z-GR | 220 | 98 | 42 | M12X100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC3-p2-M16x2.0x100-B-Z-GR | 410 | 125 | 49 | M16X100 | +4 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC4-p2-M16x2.0x100-B-Z-GR | 620 | 150 | 51 | M16X100 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC5-p2-M18x2.5x150-B-Z-GR | 900 | 180 | 53 | M18X150 | +5 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC6-p2-M20x2.5x150-B-Z-GR | 1200 | 204 | 57 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC7-p2-M20x2.5x150-B-Z-GR | 1600 | 235 | 62 | M20X150 | +6 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC8-p2-M24x3.0x200-B-Z-GR | 2000 | 270 | 77 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
| DLC9-p2-M24x3.0x200-B-Z-GR | 2600 | 302 | 89 | M24X200 | +9 | M10/12/16/20/24 | 0.8 | 12 | From -16 to 90 |
