DLC-u-12

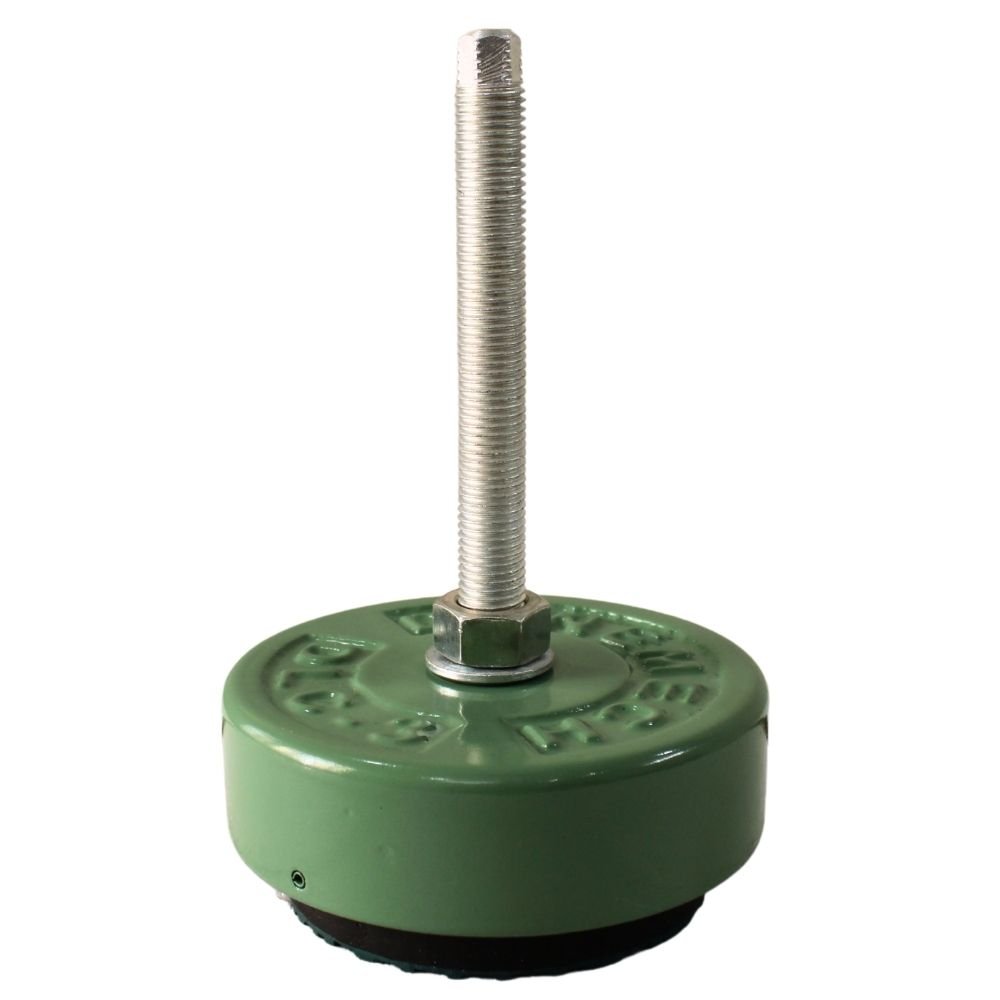

Dynemech DLC series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (for machines having high axial forces)
9 Models
| Model | Load Capacity (Kg/Pc) | Diameter D (Mm) | Height H (Mm) | Bolt Size (Mm) | Adjustment Range (Mm) | Possible Bolts | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DLC1-u-12-M12x1.75x100-B-Z-GR | 150 | 65 | 27 | M12X100 | +3 | M10/12/16/20 | 0.9 | 20 | From -16 to 90 |
| DLC2-u-12-M12x1.75x100-B-Z-GR | 350 | 98 | 34 | M12X100 | +4 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC3-u-12-M16x2.0x100-B-Z-GR | 600 | 125 | 41 | M16X100 | +4 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC4-u-12-M16x2.0x100-B-Z-GR | 900 | 150 | 43 | M16X100 | +5 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC5-u-12-M18x2.5x150-B-Z-GR | 1400 | 180 | 45 | M18X150 | +5 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC6-u-12-M20x2.5x150-B-Z-GR | 1900 | 204 | 49 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC7-u-12-M20x2.5x150-B-Z-GR | 2500 | 235 | 54 | M20X150 | +6 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC8-u-12-M24x3.0x200-B-Z-GR | 3500 | 270 | 69 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
| DLC9-u-12-M24x3.0x200-B-Z-GR | 4200 | 302 | 81 | M24X200 | +9 | M10/12/16/20/24 | 0.9 | 20 | From -16 to 90 |
