DB-a1

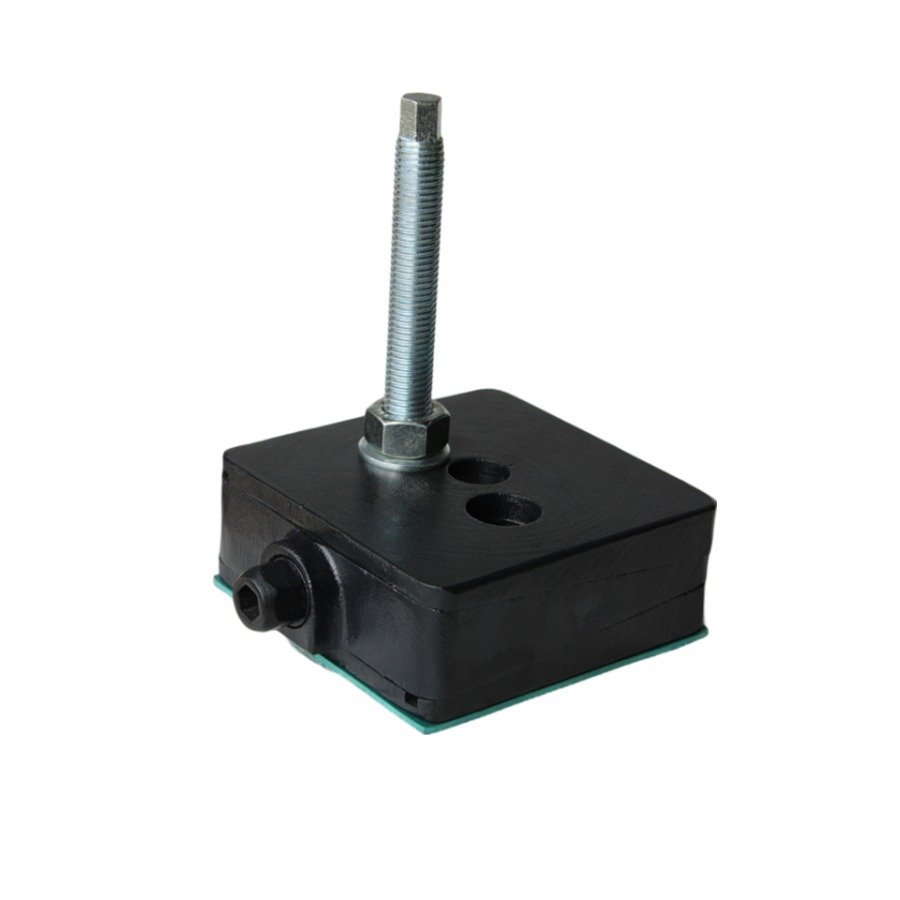

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
8 Models
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-a1-FG-M12x1.75x150-S-Z-8-DG | 1800 | 100 | 100 | 40 | +3/-3 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-a1-FG-M16x2.0x150-S-Z-8-DG | 2300 | 115 | 115 | 46 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-a1-FG-M18x2.5x150-S-Z-8-DG | 4000 | 150 | 150 | 52 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-a1-FG-M20x2.5x150-S-Z-8-DG | 7200 | 200 | 200 | 52 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-a1-FG-M20x2.5x200-S-Z-8-DG | 9000 | 200 | 250 | 72 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-a1-FG-M24x3.0x200-S-Z-8-DG | 14400 | 250 | 320 | 77 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-a1-FG-M24x3.0x200-S-Z-8-DG | 21600 | 300 | 400 | 77 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-a1-FG-M24x3.0x200-S-Z-8-DG | 36000 | 400 | 500 | 82 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
