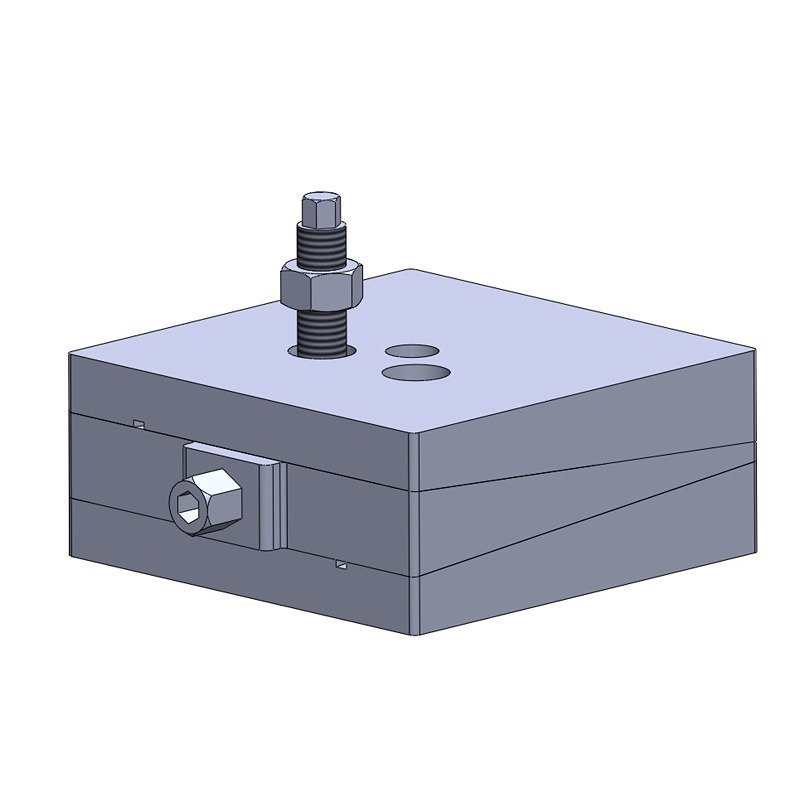

DB
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.

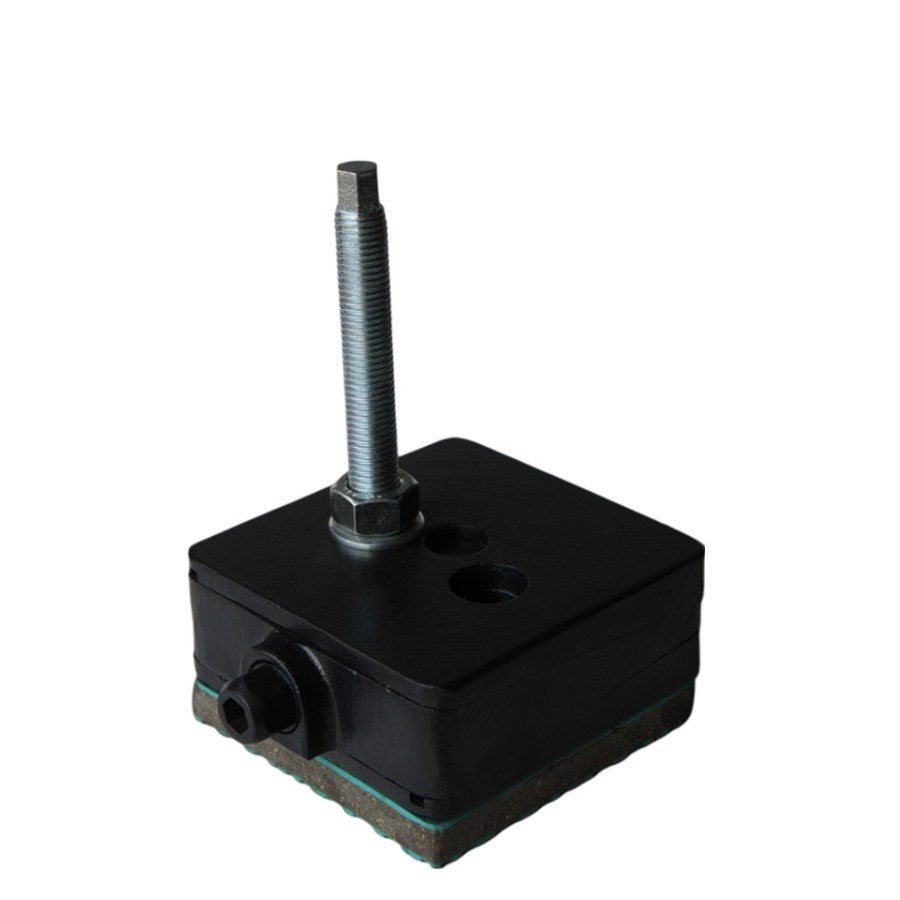

DB-u
Product
DB-u
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-u-FG-M12x1.75x150-S-Z-8-DG | 900 | 100 | 100 | 53 | +3/-3 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-u-FG-M16x2.0x150-S-Z-8-DG | 1100 | 115 | 115 | 59 | +4/-4 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-u-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 65 | +5/-5 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-u-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 65 | +6/-6 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-u-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 85 | +9/-9 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-u-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 90 | +9/-9 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-u-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 90 | +10/-10 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-u-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 95 | +10/-10 | Du | 15 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-u-10
Product
DB-u-10
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-u-10-FG-M12x1.75x150-S-Z-8-DG | 900 | 100 | 100 | 48 | +3/-3 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-u-10-FG-M16x2.0x150-S-Z-8-DG | 1100 | 115 | 115 | 54 | +4/-4 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-u-10-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 60 | +5/-5 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-u-10-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 60 | +6/-6 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-u-10-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 80 | +9/-9 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-u-10-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 85 | +9/-9 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-u-10-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 85 | +10/-10 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-u-10-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 90 | +10/-10 | Du-10 | 10 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-u-12
Product
DB-u-12
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-u-12-FG-M12x1.75x150-S-Z-8-DG | 900 | 100 | 100 | 50 | +3/-3 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-u-12-FG-M16x2.0x150-S-Z-8-DG | 1100 | 115 | 115 | 56 | +4/-4 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-u-12-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 62 | +5/-5 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-u-12-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 62 | +6/-6 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-u-12-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 82 | +9/-9 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-u-12-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 87 | +9/-9 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-u-12-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 87 | +10/-10 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-u-12-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 92 | +10/-10 | Du-12 | 12 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-m
Product
DB-m
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-m-FG-M12x1.75x150-S-Z-8-DG | 1000 | 100 | 100 | 53 | +3/-3 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-m-FG-M16x2.0x150-S-Z-8-DG | 1400 | 115 | 115 | 59 | +4/-4 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-m-FG-M18x2.5x150-S-Z-8-DG | 2200 | 150 | 150 | 65 | +5/-5 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-m-FG-M20x2.5x150-S-Z-8-DG | 4000 | 200 | 200 | 65 | +6/-6 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-m-FG-M20x2.5x200-S-Z-8-DG | 5000 | 200 | 250 | 85 | +9/-9 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-m-FG-M24x3.0x200-S-Z-8-DG | 8000 | 250 | 320 | 90 | +9/-9 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-m-FG-M24x3.0x200-S-Z-8-DG | 12000 | 300 | 400 | 90 | +10/-10 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-m-FG-M24x3.0x200-S-Z-8-DG | 20000 | 400 | 500 | 95 | +10/-10 | Dm | 15 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

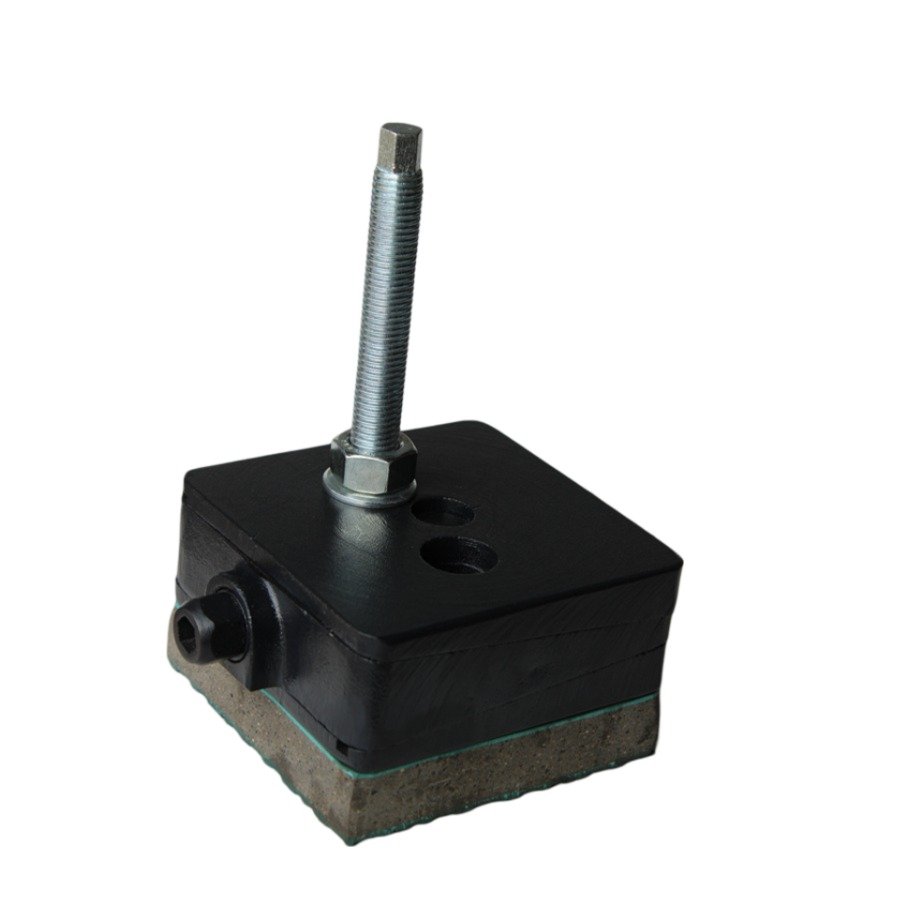

DB-i
Product
DB-i
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-i-FG-M12x1.75x150-S-Z-8-DG | 1400 | 100 | 100 | 63 | +3/-3 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-i-FG-M16x2.0x150-S-Z-8-DG | 1800 | 115 | 115 | 69 | +4/-4 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-i-FG-M18x2.5x150-S-Z-8-DG | 2900 | 150 | 150 | 75 | +5/-5 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-i-FG-M20x2.5x150-S-Z-8-DG | 5200 | 200 | 200 | 75 | +6/-6 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-i-FG-M20x2.5x200-S-Z-8-DG | 6500 | 200 | 250 | 95 | +9/-9 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-i-FG-M24x3.0x200-S-Z-8-DG | 10000 | 250 | 320 | 100 | +9/-9 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-i-FG-M24x3.0x200-S-Z-8-DG | 15000 | 300 | 400 | 100 | +10/-10 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-i-FG-M24x3.0x200-S-Z-8-DG | 26000 | 400 | 500 | 105 | +10/-10 | Di | 25 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-p1
Product
DB-p1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines.For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-p1-FG-M12x1.75x150-S-Z-8-DG | 400 | 100 | 100 | 53 | +3/-3 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-p1-FG-M16x2.0x150-S-Z-8-DG | 530 | 115 | 115 | 59 | +4/-4 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-p1-FG-M18x2.5x150-S-Z-8-DG | 900 | 150 | 150 | 65 | +5/-5 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-p1-FG-M20x2.5x150-S-Z-8-DG | 1600 | 200 | 200 | 65 | +6/-6 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-p1-FG-M20x2.5x200-S-Z-8-DG | 2000 | 200 | 250 | 85 | +9/-9 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-p1-FG-M24x3.0x200-S-Z-8-DG | 3200 | 250 | 320 | 90 | +9/-9 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-p1-FG-M24x3.0x200-S-Z-8-DG | 4800 | 300 | 400 | 90 | +10/-10 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-p1-FG-M24x3.0x200-S-Z-8-DG | 8000 | 400 | 500 | 95 | +10/-10 | Dp1 | 15 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

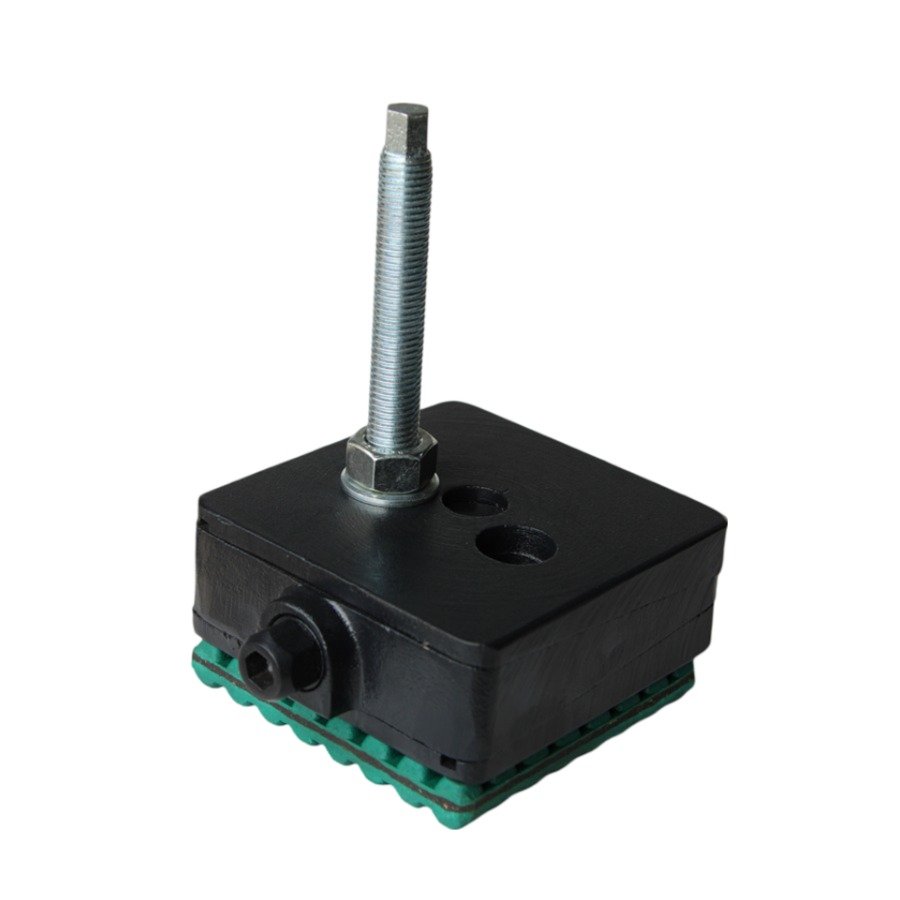

DB-p2
Product
DB-p2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-p2-FG-M12x1.75x150-S-Z-8-DG | 500 | 100 | 100 | 58 | +3/-3 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-p2-FG-M16x2.0x150-S-Z-8-DG | 660 | 115 | 115 | 64 | +4/-4 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-p2-FG-M18x2.5x150-S-Z-8-DG | 1120 | 150 | 150 | 70 | +5/-5 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-p2-FG-M20x2.5x150-S-Z-8-DG | 2000 | 200 | 200 | 70 | +6/-6 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-p2-FG-M20x2.5x200-S-Z-8-DG | 2500 | 200 | 250 | 90 | +9/-9 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-p2-FG-M24x3.0x200-S-Z-8-DG | 4000 | 250 | 320 | 95 | +9/-9 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-p2-FG-M24x3.0x200-S-Z-8-DG | 6000 | 300 | 400 | 95 | +10/-10 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-p2-FG-M24x3.0x200-S-Z-8-DG | 10000 | 400 | 500 | 100 | +10/-10 | Dp2 | 20 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

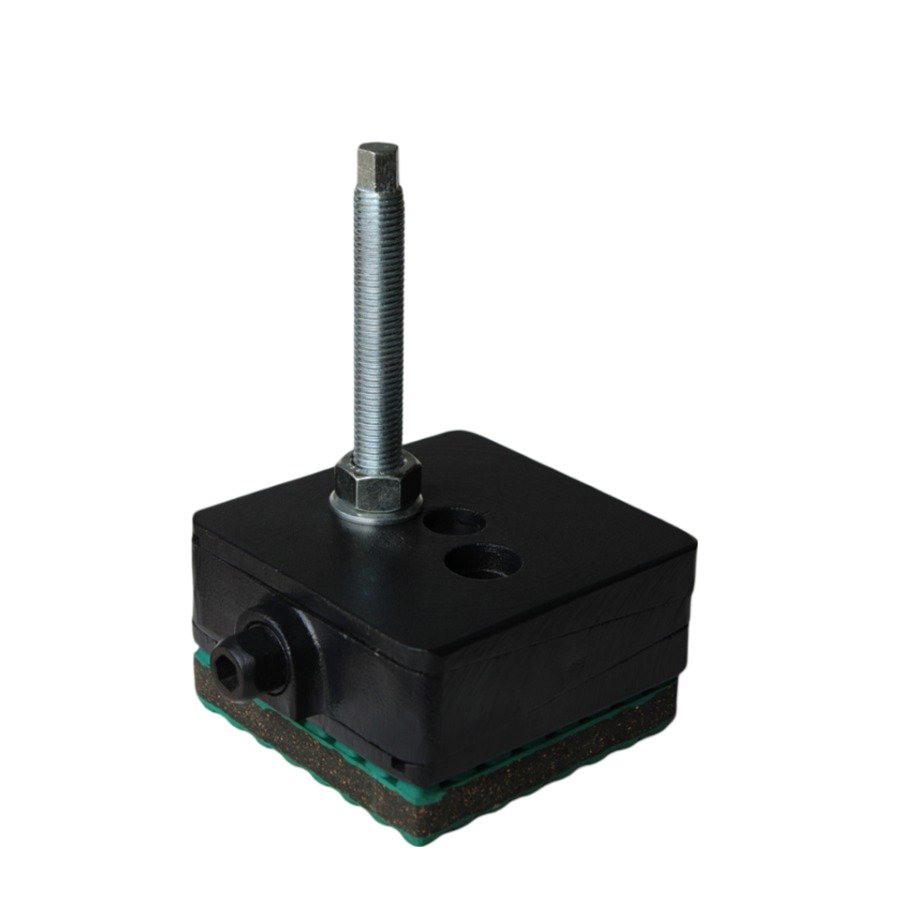

DB-p3
Product
DB-p3
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool RoomMachines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-p3-FG-M12x1.75x150-S-Z-8-DG | 600 | 100 | 100 | 62 | +3/-3 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-p3-FG-M16x2.0x150-S-Z-8-DG | 790 | 115 | 115 | 68 | +4/-4 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-p3-FG-M18x2.5x150-S-Z-8-DG | 1350 | 150 | 150 | 74 | +5/-5 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-p3-FG-M20x2.5x150-S-Z-8-DG | 2400 | 200 | 200 | 74 | +6/-6 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-p3-FG-M20x2.5x200-S-Z-8-DG | 3000 | 200 | 250 | 94 | +9/-9 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-p3-FG-M24x3.0x200-S-Z-8-DG | 4800 | 250 | 320 | 99 | +9/-9 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-p3-FG-M24x3.0x200-S-Z-8-DG | 7200 | 300 | 400 | 99 | +10/-10 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-p3-FG-M24x3.0x200-S-Z-8-DG | 12000 | 400 | 500 | 104 | +10/-10 | Dp3 | 24 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-s1
Product
DB-s1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool RoomMachines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-s1-FG-M12x1.75x150-S-Z-8-DG | 500 | 100 | 100 | 58 | +3/-3 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-s1-FG-M16x2.0x150-S-Z-8-DG | 600 | 115 | 115 | 64 | +4/-4 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-s1-FG-M18x2.5x150-S-Z-8-DG | 1000 | 150 | 150 | 70 | +5/-5 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-s1-FG-M20x2.5x150-S-Z-8-DG | 1800 | 200 | 200 | 70 | +6/-6 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-s1-FG-M20x2.5x200-S-Z-8-DG | 2200 | 200 | 250 | 90 | +9/-9 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-s1-FG-M24x3.0x200-S-Z-8-DG | 3500 | 250 | 320 | 95 | +9/-9 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-s1-FG-M24x3.0x200-S-Z-8-DG | 5200 | 300 | 400 | 95 | +10/-10 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-s1-FG-M24x3.0x200-S-Z-8-DG | 9500 | 400 | 500 | 100 | +10/-10 | Ds1 | 20 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

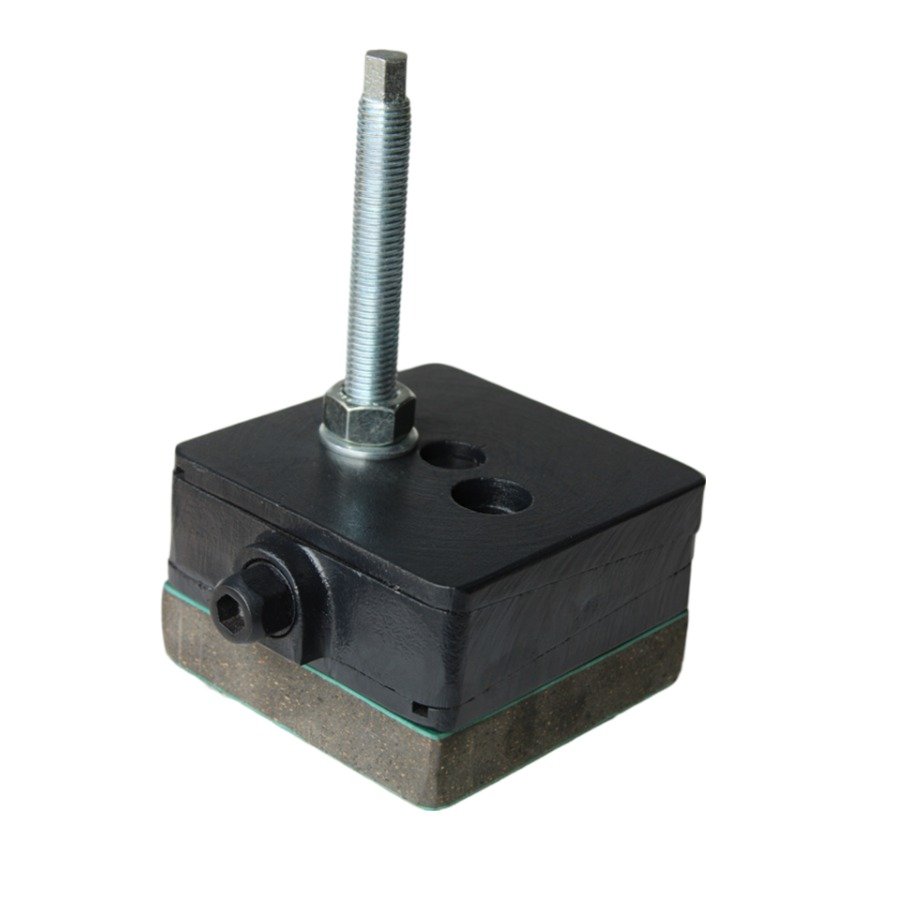

DB-s2
Product
DB-s2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines.For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-s2-FG-M12x1.75x150-S-Z-8-DG | 800 | 100 | 100 | 63 | +3/-3 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-s2-FG-M16x2.0x150-S-Z-8-DG | 950 | 115 | 115 | 69 | +4/-4 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-s2-FG-M18x2.5x150-S-Z-8-DG | 1600 | 150 | 150 | 75 | +5/-5 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-s2-FG-M20x2.5x150-S-Z-8-DG | 2800 | 200 | 200 | 75 | +6/-6 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-s2-FG-M20x2.5x200-S-Z-8-DG | 3500 | 200 | 250 | 95 | +9/-9 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-s2-FG-M24x3.0x200-S-Z-8-DG | 5500 | 250 | 320 | 100 | +9/-9 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-s2-FG-M24x3.0x200-S-Z-8-DG | 8500 | 300 | 400 | 100 | +10/-10 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-s2-FG-M24x3.0x200-S-Z-8-DG | 14000 | 400 | 500 | 105 | +10/-10 | Ds2 | 25 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-hs1
Product
DB-hs1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-hs1-FG-M12x1.75x150-S-Z-8-DG | 2000 | 100 | 100 | 103 | +3/-3 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-hs1-FG-M16x2.0x150-S-Z-8-DG | 2640 | 115 | 115 | 109 | +4/-4 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-hs1-FG-M18x2.5x150-S-Z-8-DG | 4500 | 150 | 150 | 115 | +5/-5 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-hs1-FG-M20x2.5x150-S-Z-8-DG | 8000 | 200 | 200 | 115 | +6/-6 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-hs1-FG-M20x2.5x200-S-Z-8-DG | 10000 | 200 | 250 | 135 | +9/-9 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-hs1-FG-M24x3.0x200-S-Z-8-DG | 16000 | 250 | 320 | 140 | +9/-9 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-hs1-FG-M24x3.0x200-S-Z-8-DG | 24000 | 300 | 400 | 140 | +10/-10 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-hs1-FG-M24x3.0x200-S-Z-8-DG | 40000 | 400 | 500 | 145 | +10/-10 | Dhs1 | 65 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-hs2
Product
DB-hs2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-hs2-FG-M12x1.75x150-S-Z-8-DG | 800 | 100 | 100 | 103 | +3/-3 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-hs2-FG-M16x2.0x150-S-Z-8-DG | 1060 | 115 | 115 | 109 | +4/-4 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-hs2-FG-M18x2.5x150-S-Z-8-DG | 1800 | 150 | 150 | 115 | +5/-5 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-hs2-FG-M20x2.5x150-S-Z-8-DG | 3200 | 200 | 200 | 115 | +6/-6 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-hs2-FG-M20x2.5x200-S-Z-8-DG | 4000 | 200 | 250 | 135 | +9/-9 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-hs2-FG-M24x3.0x200-S-Z-8-DG | 6400 | 250 | 320 | 140 | +9/-9 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-hs2-FG-M24x3.0x200-S-Z-8-DG | 9600 | 300 | 400 | 140 | +10/-10 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-hs2-FG-M24x3.0x200-S-Z-8-DG | 16000 | 400 | 500 | 145 | +10/-10 | Dhs2 | 65 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

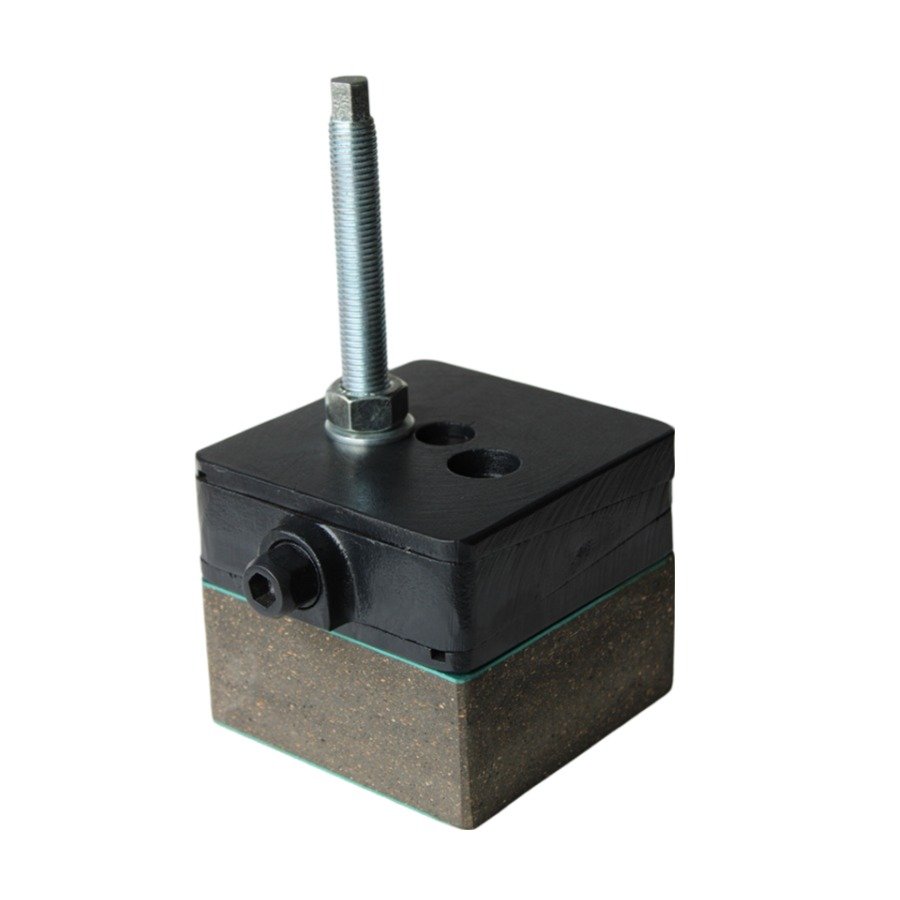

DB-hs3
Product
DB-hs3
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-hs3-FG-M12x1.75x150-S-Z-8-DG | 2800 | 100 | 100 | 88 | +3/-3 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-hs3-FG-M16x2.0x150-S-Z-8-DG | 3700 | 115 | 115 | 94 | +4/-4 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-hs3-FG-M18x2.5x150-S-Z-8-DG | 6300 | 150 | 150 | 100 | +5/-5 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-hs3-FG-M20x2.5x150-S-Z-8-DG | 11200 | 200 | 200 | 100 | +6/-6 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-hs3-FG-M20x2.5x200-S-Z-8-DG | 14000 | 200 | 250 | 120 | +9/-9 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-hs3-FG-M24x3.0x200-S-Z-8-DG | 22400 | 250 | 320 | 125 | +9/-9 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-hs3-FG-M24x3.0x200-S-Z-8-DG | 33600 | 300 | 400 | 125 | +10/-10 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-hs3-FG-M24x3.0x200-S-Z-8-DG | 56000 | 400 | 500 | 130 | +10/-10 | Dhs3 | 50 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-hs4
Product
DB-hs4
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three-piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti – skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-hs4-FG-M12x1.75x150-S-Z-8-DG | 1200 | 100 | 100 | 88 | +3/-3 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-hs4-FG-M16x2.0x150-S-Z-8-DG | 1580 | 115 | 115 | 94 | +4/-4 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-hs4-FG-M18x2.5x150-S-Z-8-DG | 2700 | 150 | 150 | 100 | +5/-5 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-hs4-FG-M20x2.5x150-S-Z-8-DG | 4800 | 200 | 200 | 100 | +6/-6 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-hs4-FG-M20x2.5x200-S-Z-8-DG | 6000 | 200 | 250 | 120 | +9/-9 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-hs4-FG-M24x3.0x200-S-Z-8-DG | 9600 | 250 | 320 | 125 | +9/-9 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-hs4-FG-M24x3.0x200-S-Z-8-DG | 14400 | 300 | 400 | 125 | +10/-10 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-hs4-FG-M24x3.0x200-S-Z-8-DG | 24000 | 400 | 500 | 130 | +10/-10 | Dhs4 | 50 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB-hs5
Product
DB-hs5
Description
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-hs5-FG-M12x1.75x150-S-Z-8-DG | 2800 | 100 | 100 | 118 | +3/-3 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-hs5-FG-M16x2.0x150-S-Z-8-DG | 3700 | 115 | 115 | 124 | +4/-4 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-hs5-FG-M18x2.5x150-S-Z-8-DG | 6300 | 150 | 150 | 130 | +5/-5 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-hs5-FG-M20x2.5x150-S-Z-8-DG | 11200 | 200 | 200 | 130 | +6/-6 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-hs5-FG-M20x2.5x200-S-Z-8-DG | 14000 | 200 | 250 | 150 | +9/-9 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-hs5-FG-M24x3.0x200-S-Z-8-DG | 22400 | 250 | 320 | 155 | +9/-9 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-hs5-FG-M24x3.0x200-S-Z-8-DG | 33600 | 300 | 400 | 155 | +10/-10 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-hs5-FG-M24x3.0x200-S-Z-8-DG | 56000 | 400 | 500 | 160 | +10/-10 | Dhs5 | 80 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

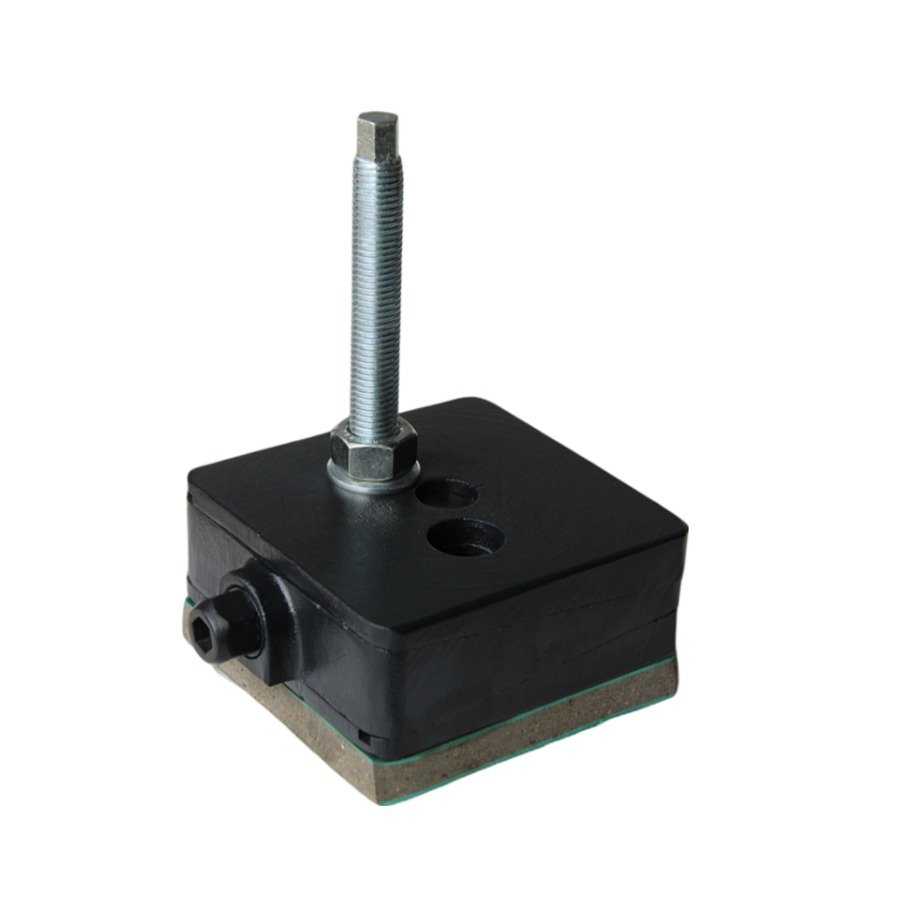

DB-h
Product
DB-h
Description
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-h-FG-M12x1.75x150-S-Z-8-DG | 3000 | 100 | 100 | 53 | +3/-3 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-h-FG-M16x2.0x150-S-Z-8-DG | 3970 | 115 | 115 | 59 | +4/-4 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-h-FG-M18x2.5x150-S-Z-8-DG | 6750 | 150 | 150 | 65 | +5/-5 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-h-FG-M20x2.5x150-S-Z-8-DG | 12000 | 200 | 200 | 65 | +6/-6 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-h-FG-M20x2.5x200-S-Z-8-DG | 15000 | 200 | 250 | 85 | +9/-9 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-h-FG-M24x3.0x200-S-Z-8-DG | 24000 | 250 | 320 | 90 | +9/-9 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-h-FG-M24x3.0x200-S-Z-8-DG | 36000 | 300 | 400 | 90 | +10/-10 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-h-FG-M24x3.0x200-S-Z-8-DG | 60000 | 400 | 500 | 95 | +10/-10 | Dh | 15 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

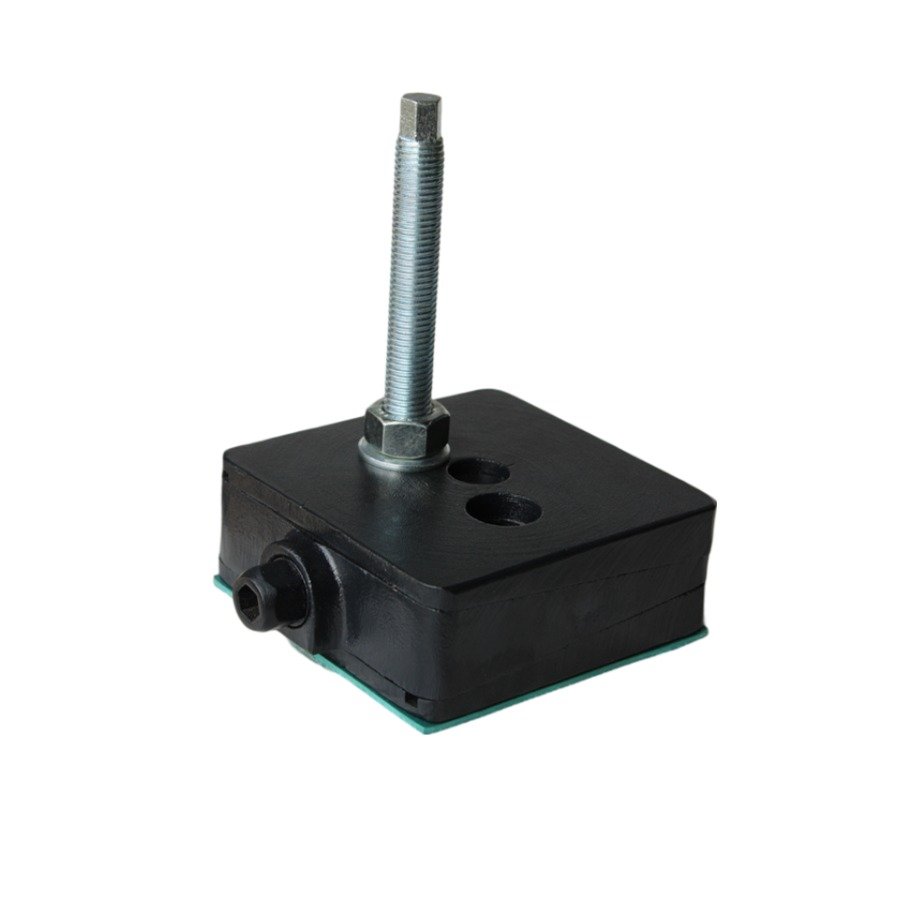

DB-a1
Product
DB-a1
Description
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-a1-FG-M12x1.75x150-S-Z-8-DG | 1800 | 100 | 100 | 40 | +3/-3 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-a1-FG-M16x2.0x150-S-Z-8-DG | 2300 | 115 | 115 | 46 | +4/-4 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-a1-FG-M18x2.5x150-S-Z-8-DG | 4000 | 150 | 150 | 52 | +5/-5 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-a1-FG-M20x2.5x150-S-Z-8-DG | 7200 | 200 | 200 | 52 | +6/-6 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-a1-FG-M20x2.5x200-S-Z-8-DG | 9000 | 200 | 250 | 72 | +9/-9 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-a1-FG-M24x3.0x200-S-Z-8-DG | 14400 | 250 | 320 | 77 | +9/-9 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-a1-FG-M24x3.0x200-S-Z-8-DG | 21600 | 300 | 400 | 77 | +10/-10 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-a1-FG-M24x3.0x200-S-Z-8-DG | 36000 | 400 | 500 | 82 | +10/-10 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |

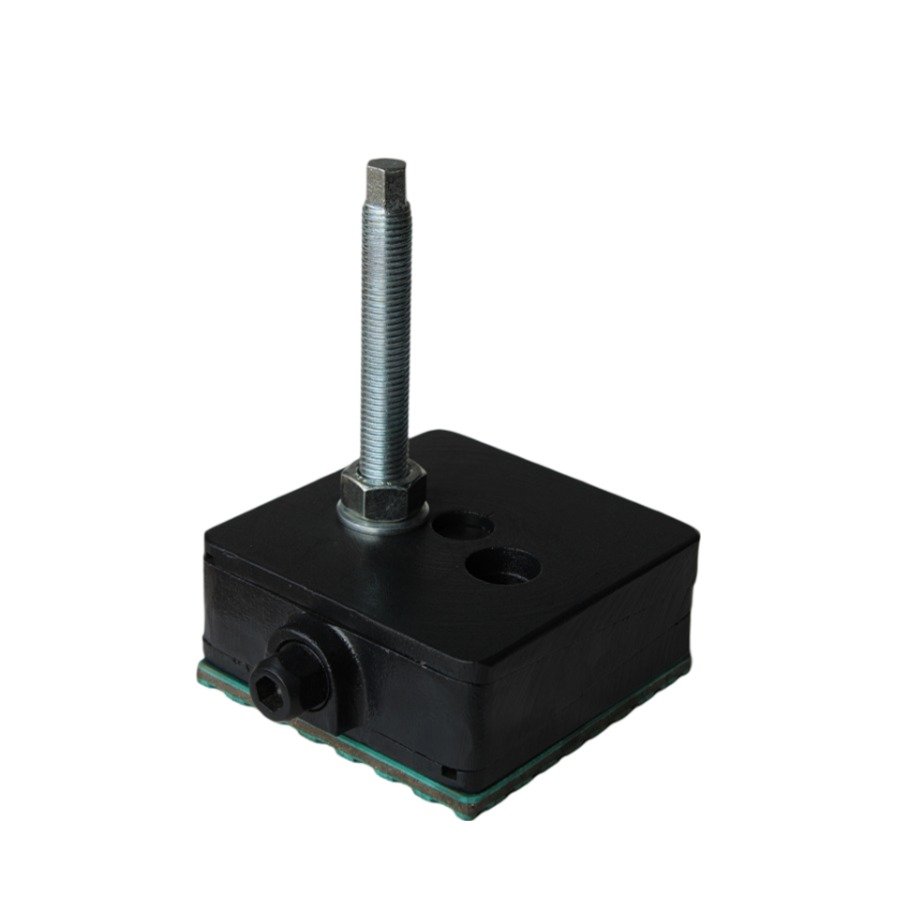

DB-a2
Product
DB-a2
Description
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-a2-FG-M12x1.75x150-S-Z-8-DG | 1000 | 100 | 100 | 46 | +3/-3 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-a2-FG-M16x2.0x150-S-Z-8-DG | 1300 | 115 | 115 | 52 | +4/-4 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-a2-FG-M18x2.5x150-S-Z-8-DG | 2250 | 150 | 150 | 58 | +5/-5 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-a2-FG-M20x2.5x150-S-Z-8-DG | 4000 | 200 | 200 | 58 | +6/-6 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-a2-FG-M20x2.5x200-S-Z-8-DG | 5000 | 200 | 250 | 78 | +9/-9 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-a2-FG-M24x3.0x200-S-Z-8-DG | 8000 | 250 | 320 | 83 | +9/-9 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-a2-FG-M24x3.0x200-S-Z-8-DG | 12000 | 300 | 400 | 83 | +10/-10 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-a2-FG-M24x3.0x200-S-Z-8-DG | 20000 | 400 | 500 | 88 | +10/-10 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | 200 | M24 | 70 |
DB
Product
DB
Description
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | D (Mm) | Bolt Size (Mm) | E (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DB0-FG-M12x1.75x150-S-Z-8-DG | 2600 | 100 | 100 | 38 | +3/-3 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | 42 | M12 | 23 |
| DB1-FG-M16x2.0x150-S-Z-8-DG | 3600 | 115 | 115 | 44 | +4/-4 | X | X | 19 | 10 | X | X | From -16 to 90 | Dark Grey/Green | 50 | M16 | 24 |
| DB2-FG-M18x2.5x150-S-Z-8-DG | 5800 | 150 | 150 | 50 | +5/-5 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 60 | M18 | 23 |
| DB3-FG-M20x2.5x150-S-Z-8-DG | 10400 | 200 | 200 | 50 | +6/-6 | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green | 75 | M20 | 27 |
| DB4-FG-M20x2.5x200-S-Z-8-DG | 13000 | 200 | 250 | 70 | +9/-9 | X | X | 27 | 14 | X | X | From -16 to 90 | Dark Grey/Green | 95 | M20 | 27 |
| DB5-FG-M24x3.0x200-S-Z-8-DG | 20000 | 250 | 320 | 75 | +9/-9 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 125 | M24 | 55 |
| DB6-FG-M24x3.0x200-S-Z-8-DG | 30000 | 300 | 400 | 75 | +10/-10 | X | X | 32 | 18 | X | X | From -16 to 90 | Dark Grey/Green | 148 | M24 | 50 |
| DB7-FG-M24x3.0x200-S-Z-8-DG | 52000 | 400 | 500 | 80 | +10/-10 | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green | 160 | M24 | 70 |
