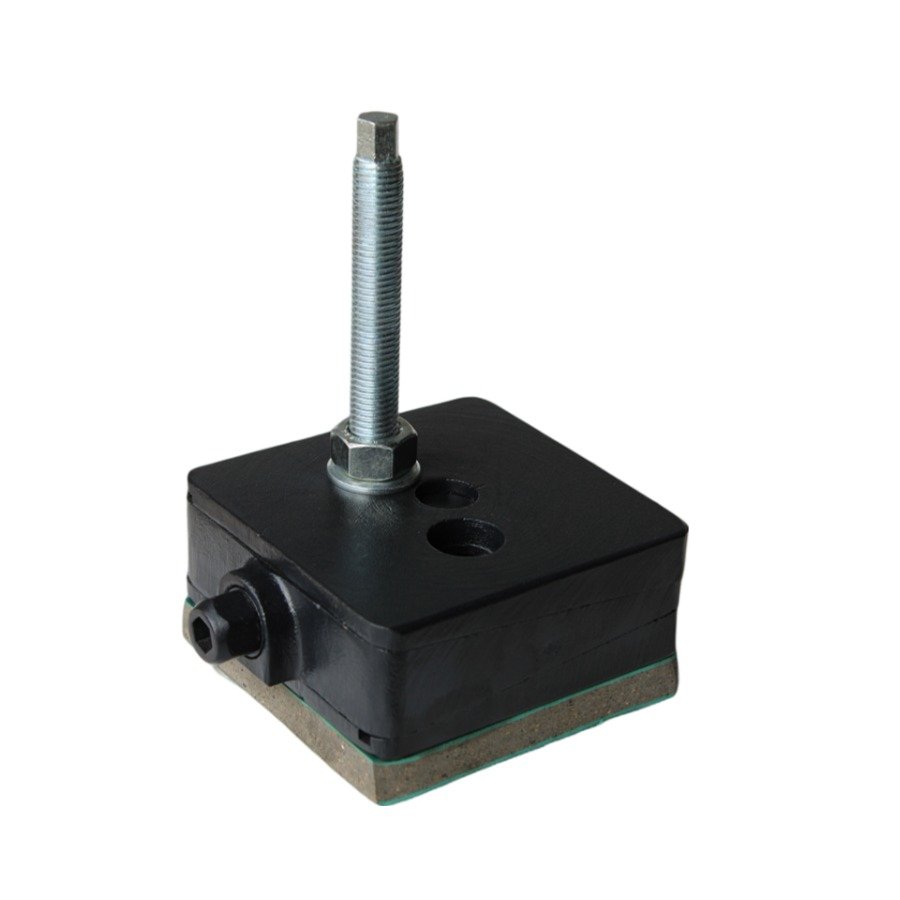

DB1-m-FG-M16x2.0x150-S-Z-8-DG
Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines, Drilling Machines, Turning Centres, Transfer Lines etc. |
| Load Capacity (Kg/Pc) | 1400 |
| Length L (Mm) | 115 |
| Width B (Mm) | 115 |
| Height H At Mean Position (Mm) | 59 |
| Adjustment Range (Mm) | +4/-4 |
| Bottom Pad Type | Dm |
| Bottom Pad Thickness (Mm) | 15 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Coeff Of Friction Against Concrete | 0.7 |
| Natural Frequency At Max Load (Hz) | 30 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 50 |
| Bolt Size (Mm) | M16 |
| E (Mm) | 24 |
