DB2-a2-FG-M18x2.5x150-S-Z-8-DG

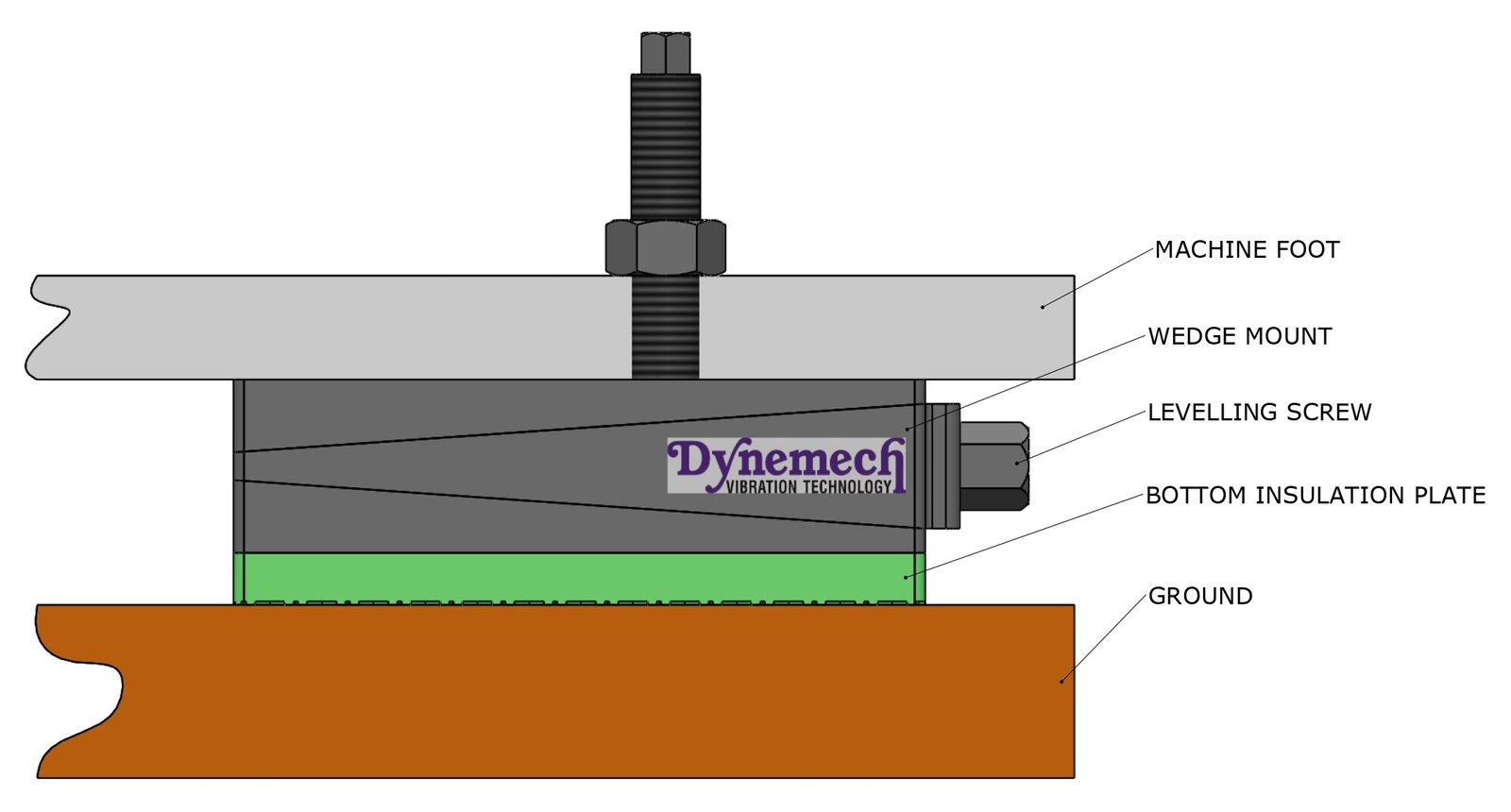

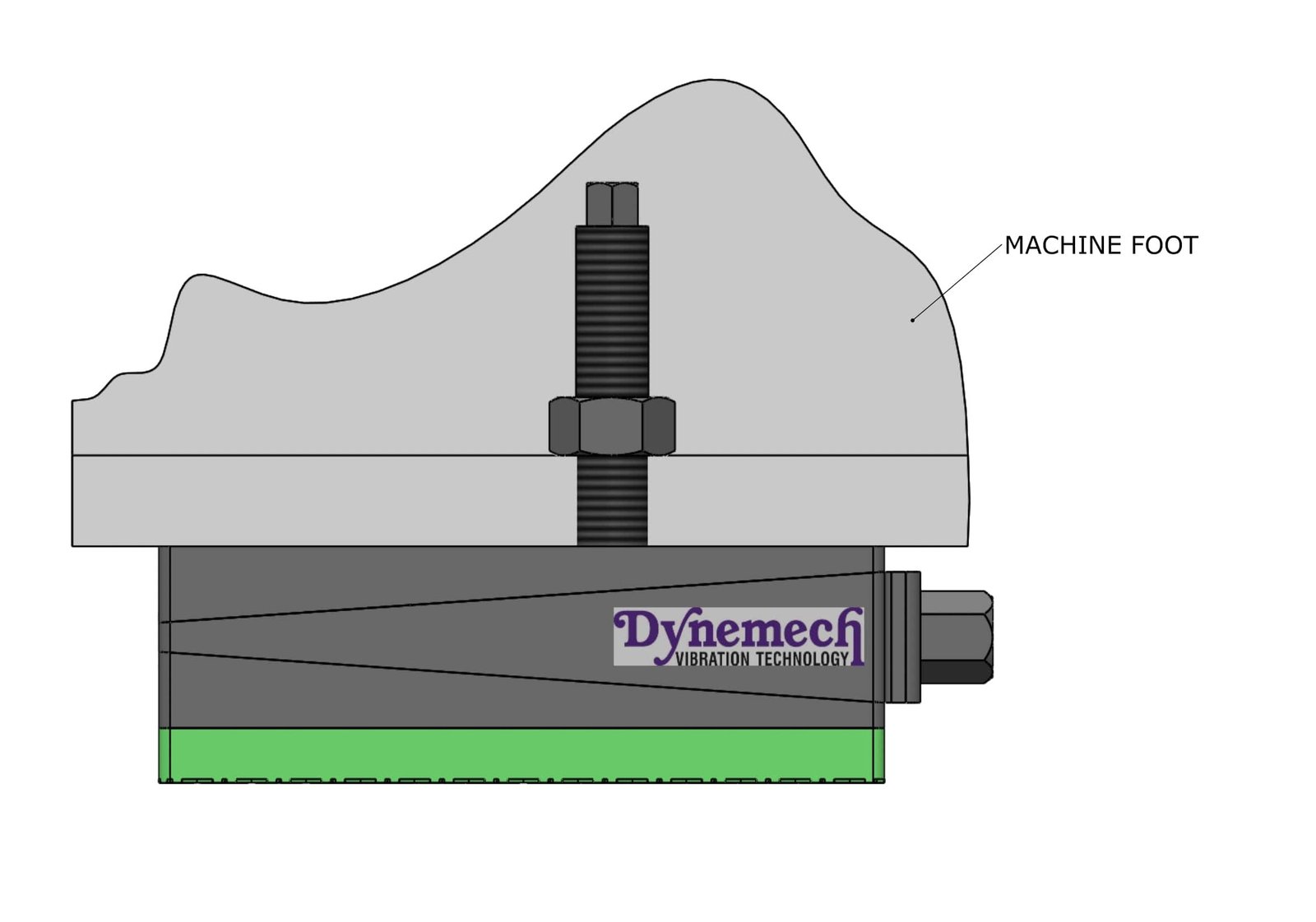

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Load Capacity (Kg/Pc) | 2250 |

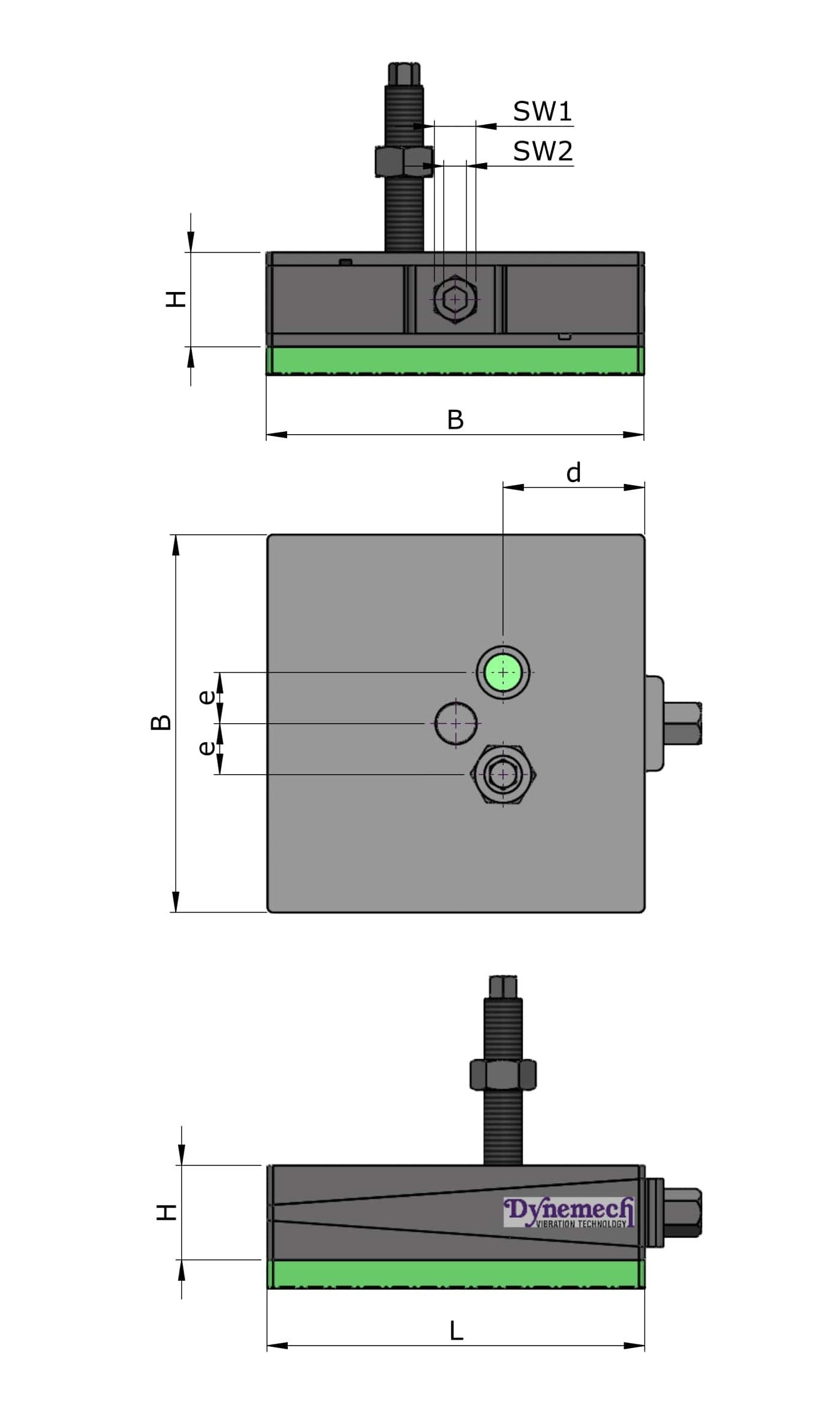

| Length L (Mm) | 150 |
| Width B (Mm) | 150 |
| Height H At Mean Position (Mm) | 58 |

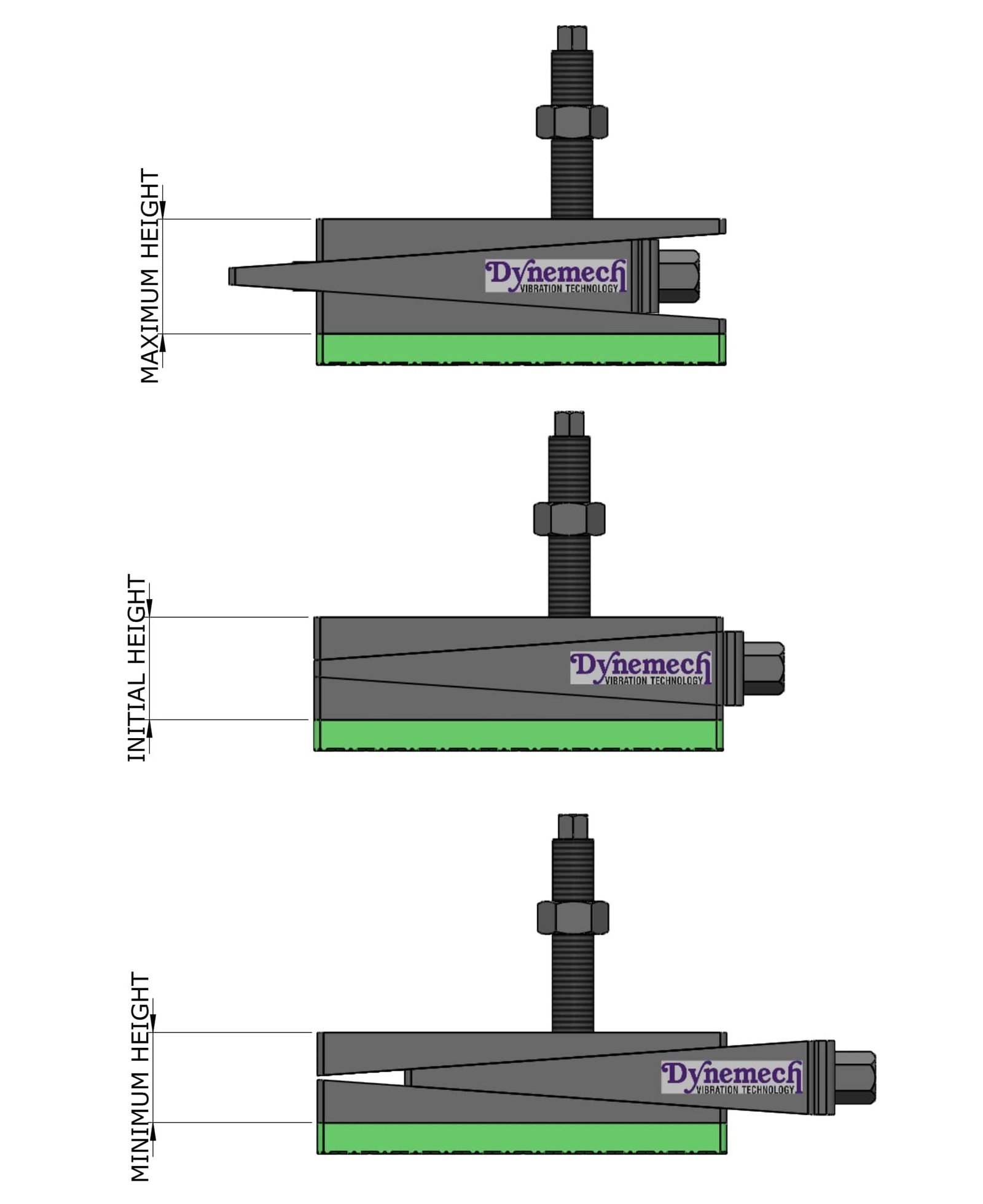

| Adjustment Range (Mm) | +5/-5 |
| Bottom Pad Type | Da2 |
| Bottom Pad Thickness (Mm) | 8 |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | 0.9 |
| Natural Frequency At Max Load (Hz) | 45 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 60 |
| Bolt Size (Mm) | M18 |
| E (Mm) | 23 |
