DBP0-hs3-135-FG-M12x1.75x150-S-Z-8-DG
Dynemech Wedge mounts, Series DBP-100 have a height of 100mm at mean position to help proper cleaning and repairing under the machines, with specs similar to series DB.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc. |
| Load Capacity (Kg/Pc) | 2800 |

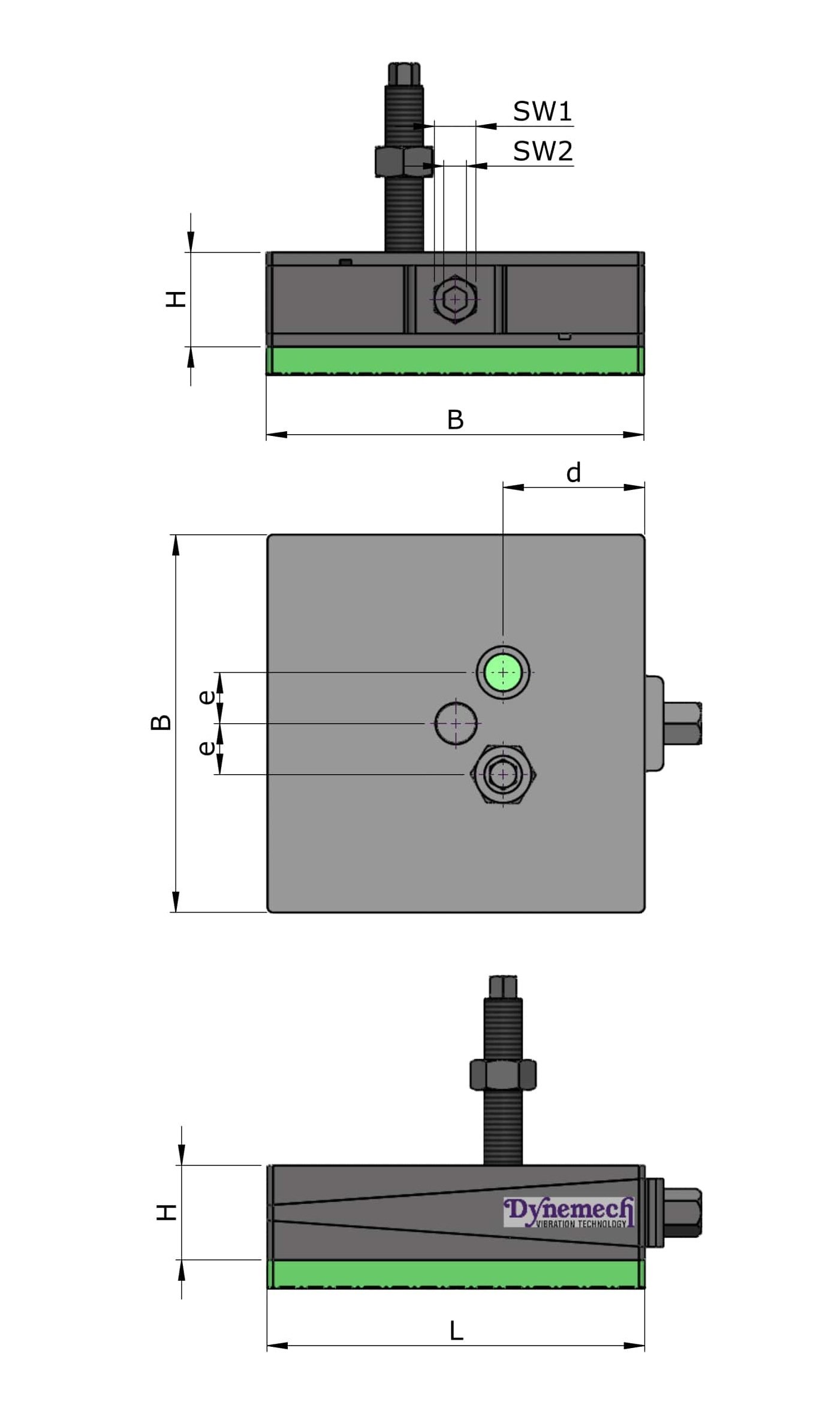

| Length L (Mm) | 100 |
| Width B (Mm) | 100 |
| Height H At Mean Position (Mm) | 135 |

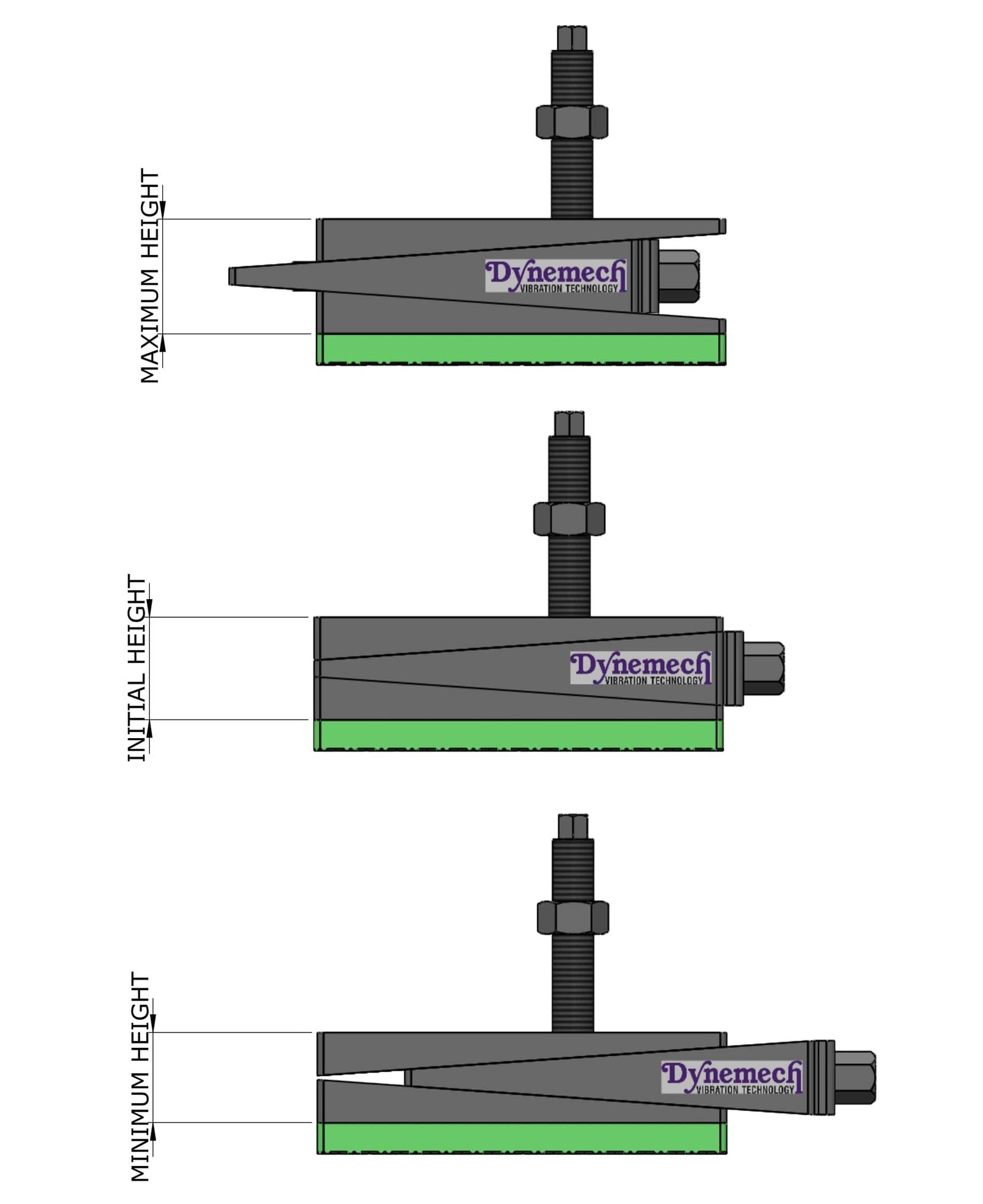

| Adjustment Range (Mm) | +3/-3 |
| Bottom Pad Type | Dhs3 |
| Bottom Pad Thickness (Mm) | 50 |
| Sw1 (Mm) | 19 |
| Sw2 (Mm) | 10 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 7 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
| D (Mm) | 42 |
| Bolt Size (Mm) | M12 |
| E (Mm) | 23 |
