DF
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.

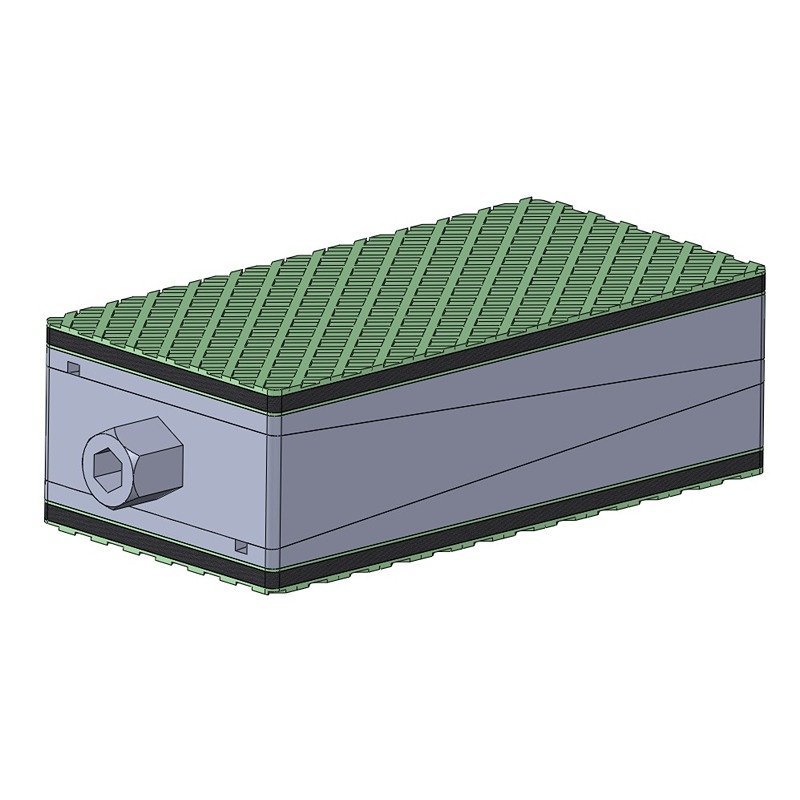

DF-u
Product
DF-u
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-U-A2-FG-DG | 400 | 105 | 55 | 60 | +4/-4 | Du | 15 | Da2 | 8 | 16 | 8 | 1.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF2-U-A2-FG-DG | 900 | 150 | 75 | 63 | +5/-5 | Du | 15 | Da2 | 8 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF3-U-A2-FG-DG | 1500 | 200 | 100 | 70 | +5/-5 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF4-U-A2-FG-DG | 3200 | 200 | 200 | 73 | +6/-6 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF5-U-A2-FG-DG | 4000 | 200 | 250 | 93 | +9/-9 | Du | 15 | Da2 | 8 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF6-U-A2-FG-DG | 6400 | 250 | 320 | 98 | +9/-9 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF7-U-A2-FG-DG | 9600 | 300 | 400 | 98 | +10/-10 | Du | 15 | Da2 | 8 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DF8-U-A2-FG-DG | 16000 | 400 | 500 | 103 | +10/-10 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
DF-u-10
Product
DF-u-10
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-U-10-A2-FG-DG | 400 | 105 | 55 | 55 | +4/-4 | Du-10 | 10 | Da2 | 8 | 16 | 8 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF2-U-10-A2-FG-DG | 900 | 150 | 75 | 58 | +5/-5 | Du-10 | 10 | Da2 | 8 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF3-U-10-A2-FG-DG | 1500 | 200 | 100 | 65 | +5/-5 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF4-U-10-A2-FG-DG | 3200 | 200 | 200 | 68 | +6/-6 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF5-U-10-A2-FG-DG | 4000 | 200 | 250 | 88 | +9/-9 | Du-10 | 10 | Da2 | 8 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF6-U-10-A2-FG-DG | 6400 | 250 | 320 | 93 | +9/-9 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF7-U-10-A2-FG-DG | 9600 | 300 | 400 | 93 | +10/-10 | Du-10 | 10 | Da2 | 8 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DF8-U-10-A2-FG-DG | 16000 | 400 | 500 | 98 | +10/-10 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
DF-u-12
Product
DF-u-12
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-U-12-A2-FG-DG | 400 | 105 | 55 | 57 | +4/-4 | Du-12 | 12 | Da2 | 8 | 16 | 8 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF2-U-12-A2-FG-DG | 900 | 150 | 75 | 60 | +5/-5 | Du-12 | 12 | Da2 | 8 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF3-U-12-A2-FG-DG | 1500 | 200 | 100 | 67 | +5/-5 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF4-U-12-A2-FG-DG | 3200 | 200 | 200 | 70 | +6/-6 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF5-U-12-A2-FG-DG | 4000 | 200 | 250 | 90 | +9/-9 | Du-12 | 12 | Da2 | 8 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF6-U-12-A2-FG-DG | 6400 | 250 | 320 | 95 | +9/-9 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF7-U-12-A2-FG-DG | 9600 | 300 | 400 | 95 | +10/-10 | Du-12 | 12 | Da2 | 8 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DF8-U-12-A2-FG-DG | 16000 | 400 | 500 | 100 | +10/-10 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |

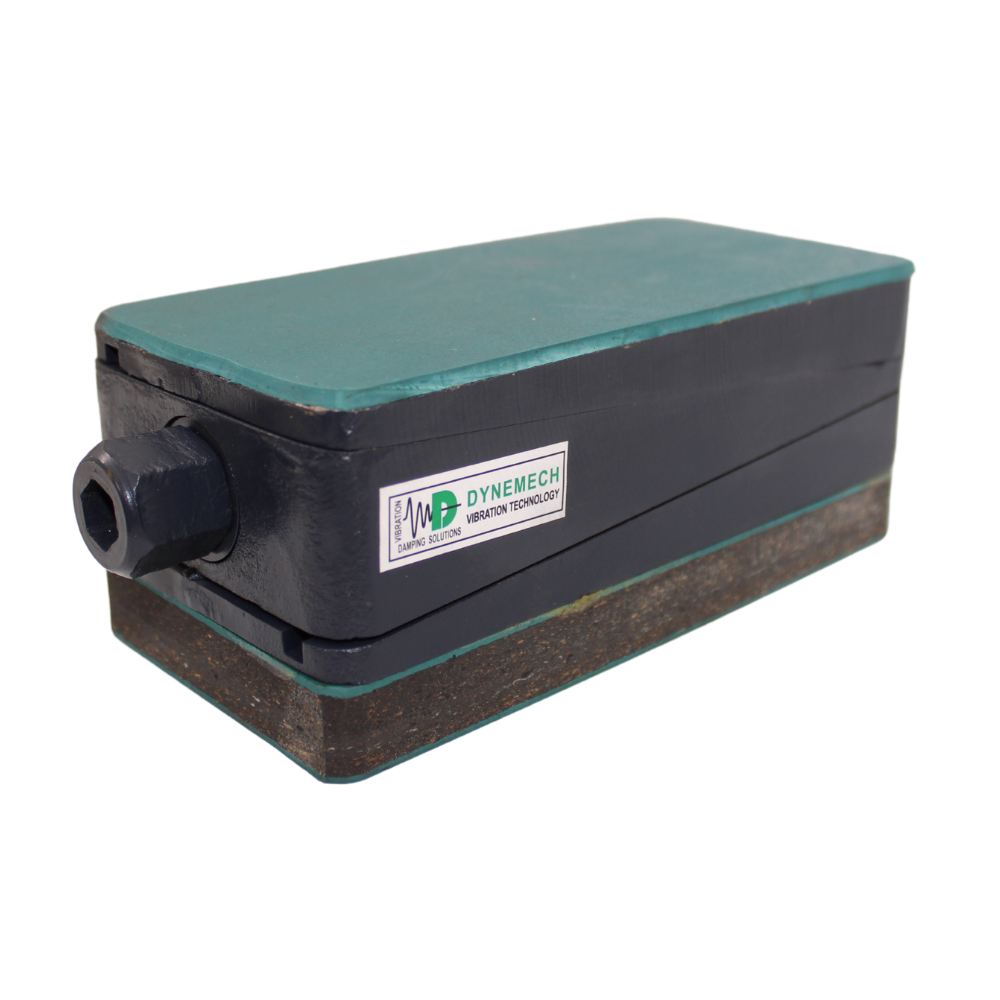

DF-m
Product
DF-m
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Lathe Machines, Machining Centres, Milling Machines, Precision Grinding Machines,Drilling Machines, Turning Centres, Transfer Lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-M-A1-FG-DG | 500 | 105 | 55 | 54 | +4/-4 | Dm | 15 | Da1 | 2 | 16 | 8 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF2-M-A1-FG-DG | 1200 | 150 | 75 | 57 | +5/-5 | Dm | 15 | Da1 | 2 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF3-M-A1-FG-DG | 2000 | 200 | 100 | 64 | +5/-5 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF4-M-A1-FG-DG | 4000 | 200 | 200 | 67 | +6/-6 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF5-M-A1-FG-DG | 5000 | 200 | 250 | 87 | +9/-9 | Dm | 15 | Da1 | 2 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF6-M-A1-FG-DG | 8000 | 250 | 320 | 92 | +9/-9 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF7-M-A1-FG-DG | 12000 | 300 | 400 | 92 | +10/-10 | Dm | 15 | Da1 | 2 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DF8-M-A1-FG-DG | 20000 | 400 | 500 | 97 | +10/-10 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |

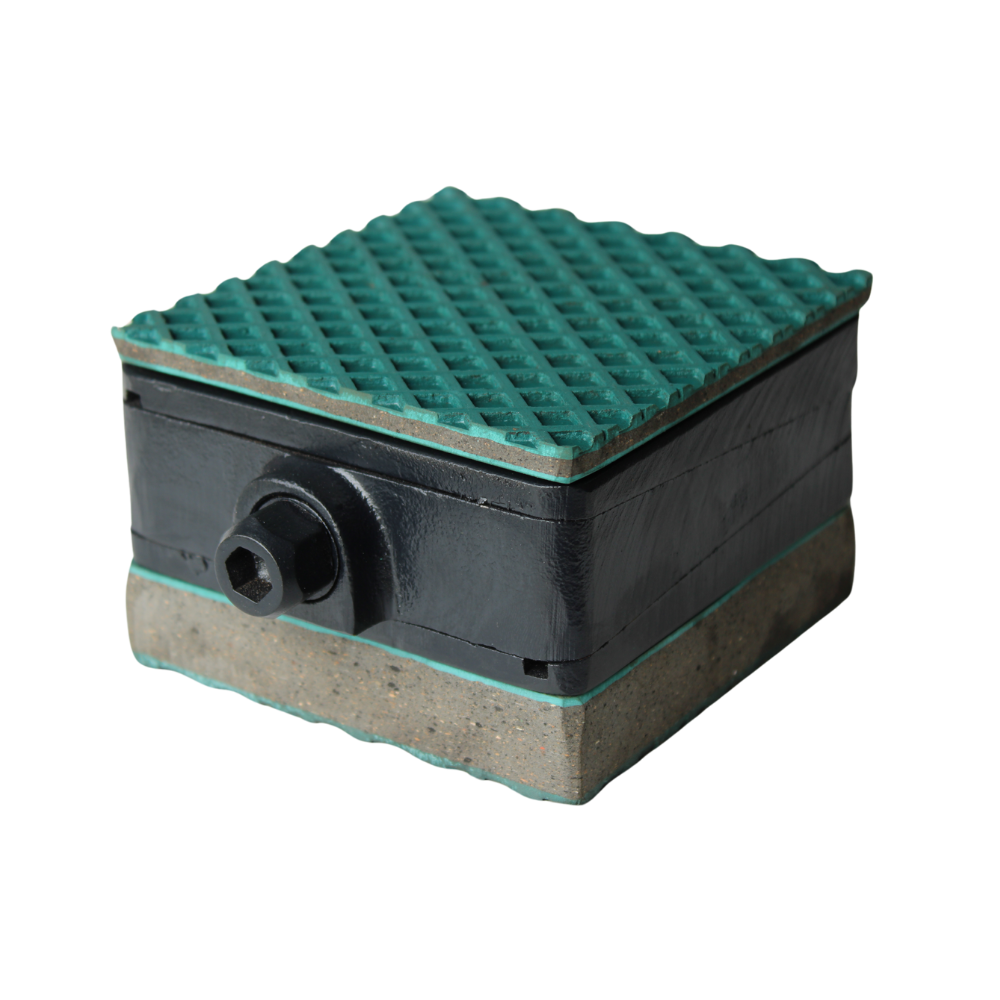

DF-i
Product
DF-i
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-i-A2-FG-DG | 600 | 105 | 55 | 70 | +4/-4 | Di | 25 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF2-i-A2-FG-DG | 1500 | 150 | 75 | 73 | +5/-5 | Di | 25 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF3-i-A2-FG-DG | 2500 | 200 | 100 | 80 | +5/-5 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF4-i-A2-FG-DG | 5200 | 200 | 200 | 83 | +6/-6 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF5-i-A2-FG-DG | 6500 | 200 | 250 | 103 | +9/-9 | Di | 25 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF6-i-A2-FG-DG | 10000 | 250 | 320 | 108 | +9/-9 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF7-i-A2-FG-DG | 15000 | 300 | 400 | 108 | +10/-10 | Di | 25 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF8-i-A2-FG-DG | 26000 | 400 | 500 | 113 | +10/-10 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

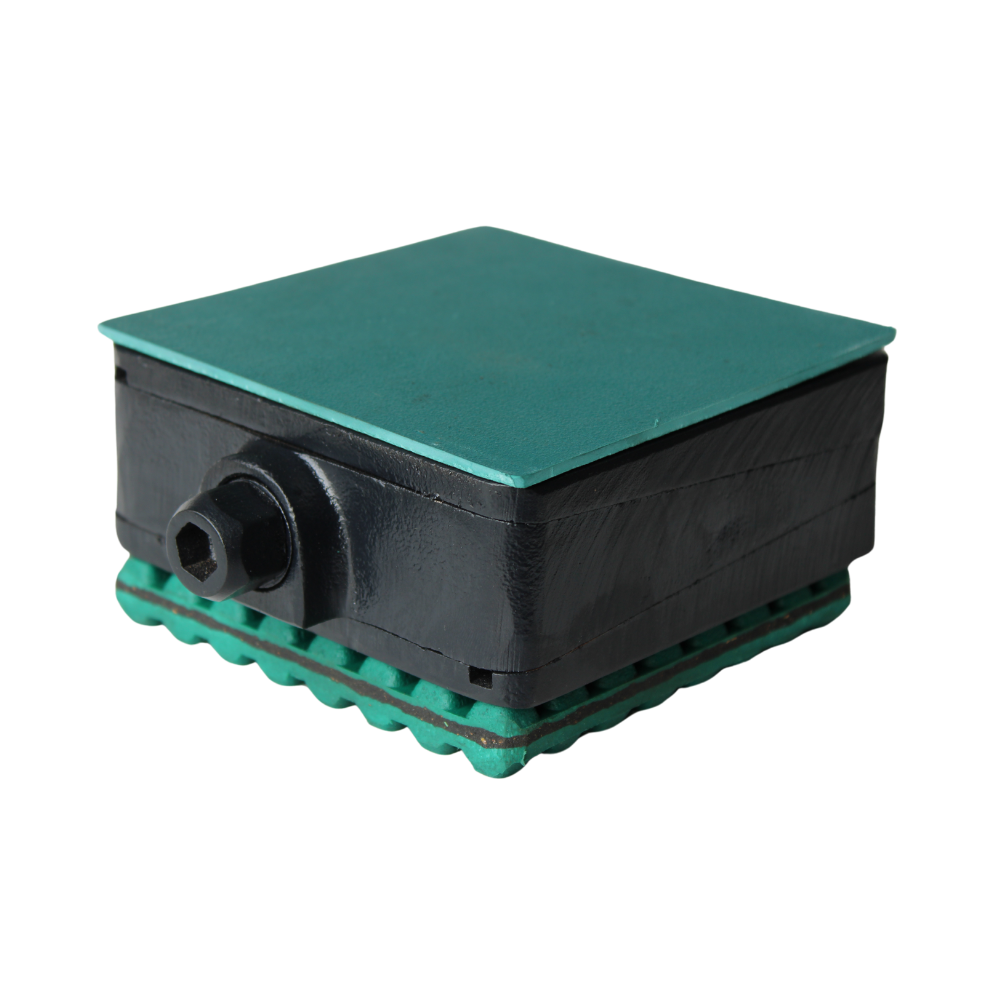

DF-p1
Product
DF-p1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Passive vibration control of measuring & Testing Machines, Grinders etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-p1-A1-FG-DG | 230 | 105 | 55 | 54 | +4/-4 | Dp1 | 15 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF2-p1-A1-FG-DG | 450 | 150 | 75 | 57 | +5/-5 | Dp1 | 15 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF3-p1-A1-FG-DG | 800 | 200 | 100 | 64 | +5/-5 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF4-p1-A1-FG-DG | 1600 | 200 | 200 | 67 | +6/-6 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF5-p1-A1-FG-DG | 2000 | 200 | 250 | 87 | +9/-9 | Dp1 | 15 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF6-p1-A1-FG-DG | 3200 | 250 | 320 | 92 | +9/-9 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF7-p1-A1-FG-DG | 4800 | 300 | 400 | 92 | +10/-10 | Dp1 | 15 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF8-p1-A1-FG-DG | 8000 | 400 | 500 | 97 | +10/-10 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

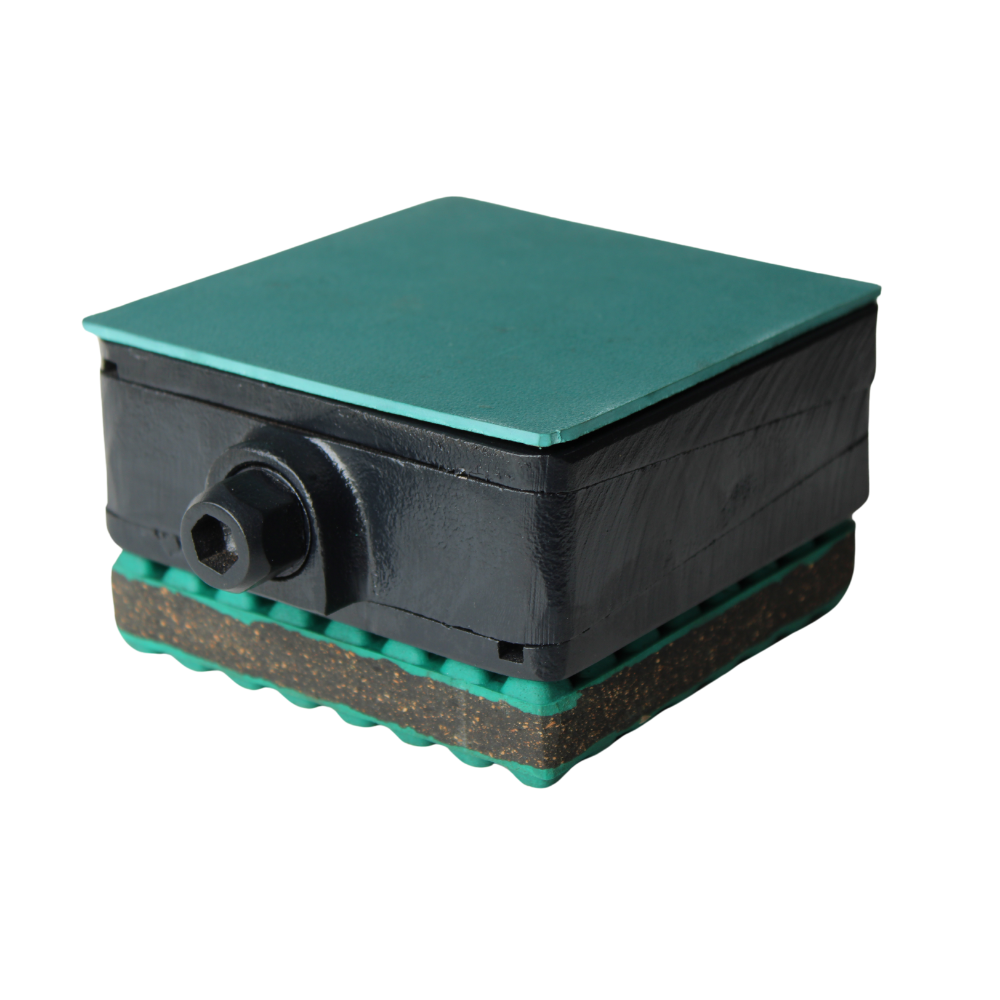

DF-p2
Product
DF-p2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-p2-A1-FG-DG | 180 | 105 | 55 | 59 | +4/-4 | Dp2 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF2-p2-A1-FG-DG | 400 | 150 | 75 | 62 | +5/-5 | Dp2 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF3-p2-A1-FG-DG | 725 | 200 | 100 | 69 | +5/-5 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF4-p2-A1-FG-DG | 1450 | 200 | 200 | 72 | +6/-6 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF5-p2-A1-FG-DG | 1800 | 200 | 250 | 92 | +9/-9 | Dp2 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF6-p2-A1-FG-DG | 2900 | 250 | 320 | 97 | +9/-9 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF7-p2-A1-FG-DG | 4400 | 300 | 400 | 97 | +10/-10 | Dp2 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DF8-p2-A1-FG-DG | 7500 | 400 | 500 | 102 | +10/-10 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
DF-p3
Product
DF-p3
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Active & Passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-p3-A1-FG-DG | 340 | 105 | 55 | 63 | +4/-4 | Dp3 | 24 | Da1 | 2 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF2-p3-A1-FG-DG | 670 | 150 | 75 | 66 | +5/-5 | Dp3 | 24 | Da1 | 2 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF3-p3-A1-FG-DG | 1200 | 200 | 100 | 73 | +5/-5 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF4-p3-A1-FG-DG | 2400 | 200 | 200 | 76 | +6/-6 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF5-p3-A1-FG-DG | 3000 | 200 | 250 | 96 | +9/-9 | Dp3 | 24 | Da1 | 2 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF6-p3-A1-FG-DG | 4800 | 250 | 320 | 101 | +9/-9 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF7-p3-A1-FG-DG | 7200 | 300 | 400 | 101 | +10/-10 | Dp3 | 24 | Da1 | 2 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF8-p3-A1-FG-DG | 12000 | 400 | 500 | 106 | +10/-10 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

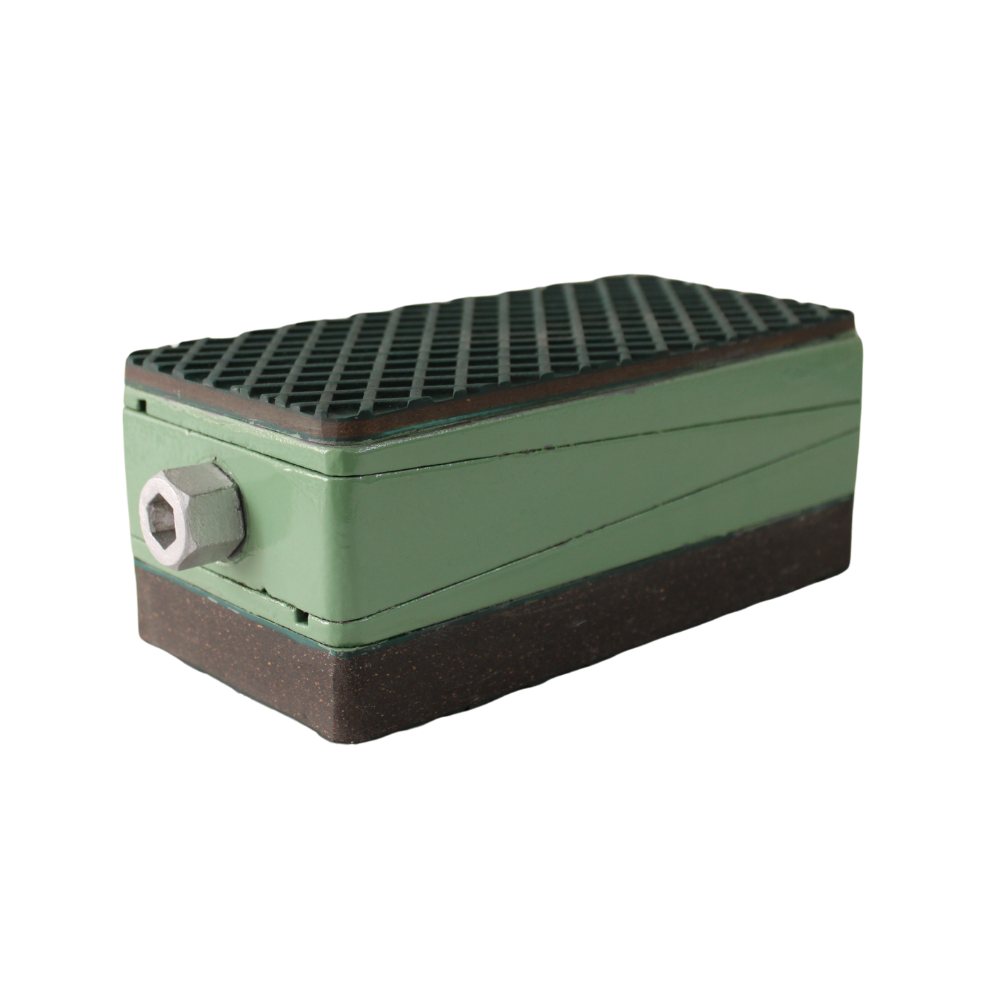

DF-s1
Product
DF-s1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
The DF-S1 effectively controls both outgoing vibrations from production machinery to the floor and incoming vibrations from external sources, ensuring machine stability and precision.
Application
Active & Passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-s1-A1-FG-DG | 280 | 105 | 55 | 59 | +4/-4 | Ds1 | 20 | Da1 | 2 | 16 | 8 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF2-s1-A1-FG-DG | 560 | 150 | 75 | 62 | +5/-5 | Ds1 | 20 | Da1 | 2 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF3-s1-A1-FG-DG | 1000 | 200 | 100 | 69 | +5/-5 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF4-s1-A1-FG-DG | 2000 | 200 | 200 | 72 | +6/-6 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF5-s1-A1-FG-DG | 2500 | 200 | 250 | 92 | +9/-9 | Ds1 | 20 | Da1 | 2 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF6-s1-A1-FG-DG | 4000 | 250 | 320 | 97 | +9/-9 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF7-s1-A1-FG-DG | 6000 | 300 | 400 | 97 | +10/-10 | Ds1 | 20 | Da1 | 2 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DF8-s1-A1-FG-DG | 10000 | 400 | 500 | 102 | +10/-10 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
DF-s2
Product
DF-s2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Medium Presses, Stamping machines, also well suited for high speed rotating machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-s2-A1-FG-DG | 350 | 105 | 55 | 64 | +4/-4 | Ds2 | 25 | Da1 | 2 | 16 | 8 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF2-s2-A1-FG-DG | 800 | 150 | 75 | 67 | +5/-5 | Ds2 | 25 | Da1 | 2 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF3-s2-A1-FG-DG | 1400 | 200 | 100 | 74 | +5/-5 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF4-s2-A1-FG-DG | 2800 | 200 | 200 | 77 | +6/-6 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF5-s2-A1-FG-DG | 3500 | 200 | 250 | 97 | +9/-9 | Ds2 | 25 | Da1 | 2 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF6-s2-A1-FG-DG | 5500 | 250 | 320 | 102 | +9/-9 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF7-s2-A1-FG-DG | 8500 | 300 | 400 | 102 | +10/-10 | Ds2 | 25 | Da1 | 2 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DF8-s2-A1-FG-DG | 14000 | 400 | 500 | 107 | +10/-10 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |

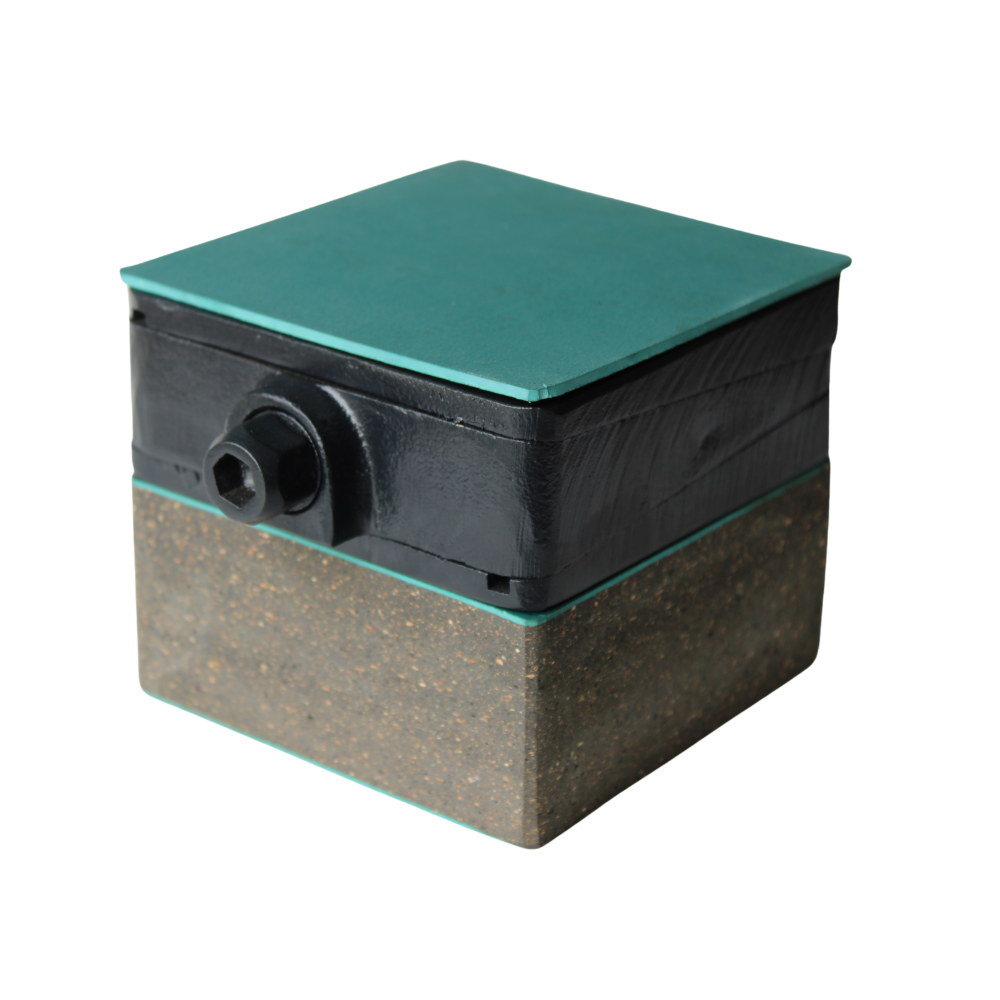

DF-hs1
Product
DF-hs1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-hs1-A2-FG-DG | 1155 | 105 | 55 | 110 | +4/-4 | Dhs1 | 65 | Da2 | 8 | 16 | 8 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF2-hs1-A2-FG-DG | 2250 | 150 | 75 | 113 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF3-hs1-A2-FG-DG | 4000 | 200 | 100 | 120 | +5/-5 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF4-hs1-A2-FG-DG | 8000 | 200 | 200 | 123 | +6/-6 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF5-hs1-A2-FG-DG | 10000 | 200 | 250 | 143 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF6-hs1-A2-FG-DG | 16000 | 250 | 320 | 148 | +9/-9 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF7-hs1-A2-FG-DG | 24000 | 300 | 400 | 148 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DF8-hs1-A2-FG-DG | 40000 | 400 | 500 | 153 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
DF-hs2
Product
DF-hs2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-hs2-A1-FG-DG | 460 | 105 | 55 | 104 | +4/-4 | Dhs2 | 65 | Da1 | 2 | 16 | 8 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF2-hs2-A1-FG-DG | 900 | 150 | 75 | 107 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF3-hs2-A1-FG-DG | 1600 | 200 | 100 | 114 | +5/-5 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF4-hs2-A1-FG-DG | 3200 | 200 | 200 | 117 | +6/-6 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF5-hs2-A1-FG-DG | 4000 | 200 | 250 | 137 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF6-hs2-A1-FG-DG | 6400 | 250 | 320 | 142 | +9/-9 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF7-hs2-A1-FG-DG | 9600 | 300 | 400 | 142 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DF8-hs2-A1-FG-DG | 16000 | 400 | 500 | 147 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
DF-hs3
Product
DF-hs3
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-hs3-A2-FG-DG | 1600 | 105 | 55 | 95 | +4/-4 | Dhs3 | 50 | Da2 | 8 | 16 | 8 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF2-hs3-A2-FG-DG | 3100 | 150 | 75 | 98 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF3-hs3-A2-FG-DG | 5600 | 200 | 100 | 105 | +5/-5 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF4-hs3-A2-FG-DG | 11200 | 200 | 200 | 108 | +6/-6 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF5-hs3-A2-FG-DG | 14000 | 200 | 250 | 128 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF6-hs3-A2-FG-DG | 22400 | 250 | 320 | 133 | +9/-9 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF7-hs3-A2-FG-DG | 33600 | 300 | 400 | 133 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DF8-hs3-A2-FG-DG | 56000 | 400 | 500 | 138 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
DF-hs4
Product
DF-hs4
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-hs4-A1-FG-DG | 690 | 105 | 55 | 89 | +4/-4 | Dhs4 | 50 | Da1 | 2 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF2-hs4-A1-FG-DG | 1300 | 150 | 75 | 92 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF3-hs4-A1-FG-DG | 2400 | 200 | 100 | 99 | +5/-5 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF4-hs4-A1-FG-DG | 4800 | 200 | 200 | 102 | +6/-6 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF5-hs4-A1-FG-DG | 6000 | 200 | 250 | 122 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF6-hs4-A1-FG-DG | 9600 | 250 | 320 | 127 | +9/-9 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF7-hs4-A1-FG-DG | 14400 | 300 | 400 | 127 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF8-hs4-A1-FG-DG | 24000 | 400 | 500 | 132 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DF-hs5
Product
DF-hs5
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For all heavy-duty industrial applications where high vibration isolation is required. Suitable for rotating and vertical impact generating machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-hs5-A2-FG-DG | 1600 | 105 | 55 | 125 | +4/-4 | Dhs5 | 80 | Da2 | 8 | 16 | 8 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF2-hs5-A2-FG-DG | 3100 | 150 | 75 | 128 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF3-hs5-A2-FG-DG | 5600 | 200 | 100 | 135 | +5/-5 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF4-hs5-A2-FG-DG | 11200 | 200 | 200 | 138 | +6/-6 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF5-hs5-A2-FG-DG | 14000 | 200 | 250 | 158 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF6-hs5-A2-FG-DG | 22400 | 250 | 320 | 163 | +9/-9 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF7-hs5-A2-FG-DG | 33600 | 300 | 400 | 163 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DF8-hs5-A2-FG-DG | 56000 | 400 | 500 | 168 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DF-h
Product
DF-h
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-h-A2-FG-DG | 1740 | 105 | 55 | 60 | +4/-4 | Dh | 15 | Da2 | 8 | 16 | 8 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF2-h-A2-FG-DG | 3380 | 150 | 75 | 63 | +5/-5 | Dh | 15 | Da2 | 8 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF3-h-A2-FG-DG | 6000 | 200 | 100 | 70 | +5/-5 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF4-h-A2-FG-DG | 12000 | 200 | 200 | 73 | +6/-6 | Dh | 15 | Da2 | 8 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF5-h-A2-FG-DG | 15000 | 200 | 250 | 93 | +9/-9 | Dh | 15 | Da2 | 8 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF6-h-A2-FG-DG | 24000 | 250 | 320 | 98 | +9/-9 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF7-h-A2-FG-DG | 36000 | 300 | 400 | 98 | +10/-10 | Dh | 15 | Da2 | 8 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DF8-h-A2-FG-DG | 60000 | 400 | 500 | 103 | +10/-10 | Dh | 15 | Da2 | 8 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |

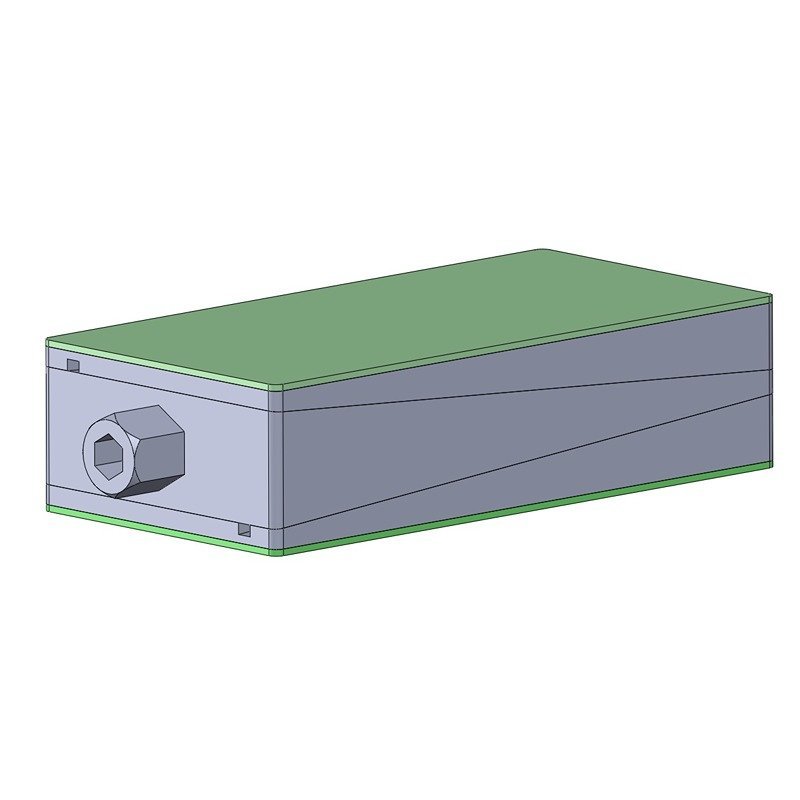

DF-a1
Product
DF-a1
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For Precision levelling of machines. Top and bottom anti-skid plate Da1 ensures stability
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-a1-A1-FG-DG | 1030 | 105 | 55 | 41 | +4/-4 | Da1 | 2 | Da1 | 2 | 16 | 8 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF2-a1-A1-FG-DG | 2000 | 150 | 75 | 44 | +5/-5 | Da1 | 2 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF3-a1-A1-FG-DG | 3600 | 200 | 100 | 51 | +5/-5 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF4-a1-A1-FG-DG | 7200 | 200 | 200 | 54 | +6/-6 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF5-a1-A1-FG-DG | 9000 | 200 | 250 | 74 | +9/-9 | Da1 | 2 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF6-a1-A1-FG-DG | 14400 | 250 | 320 | 79 | +9/-9 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF7-a1-A1-FG-DG | 21600 | 300 | 400 | 79 | +10/-10 | Da1 | 2 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DF8-a1-A1-FG-DG | 36000 | 400 | 500 | 84 | +10/-10 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
DF-a2
Product
DF-a2
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Application
For Precision levelling of machines. Top and bottom anti-skid plate Da2 ensures stability
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-a2-A2-FG-DG | 570 | 105 | 55 | 53 | +4/-4 | Da2 | 8 | Da2 | 8 | 16 | 8 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF2-a2-A2-FG-DG | 1120 | 150 | 75 | 56 | +5/-5 | Da2 | 8 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF3-a2-A2-FG-DG | 2000 | 200 | 100 | 63 | +5/-5 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF4-a2-A2-FG-DG | 4000 | 200 | 200 | 66 | +6/-6 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF5-a2-A2-FG-DG | 5000 | 200 | 250 | 86 | +9/-9 | Da2 | 8 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF6-a2-A2-FG-DG | 8000 | 250 | 320 | 91 | +9/-9 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF7-a2-A2-FG-DG | 12000 | 300 | 400 | 91 | +10/-10 | Da2 | 8 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DF8-a2-A2-FG-DG | 20000 | 400 | 500 | 96 | +10/-10 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |

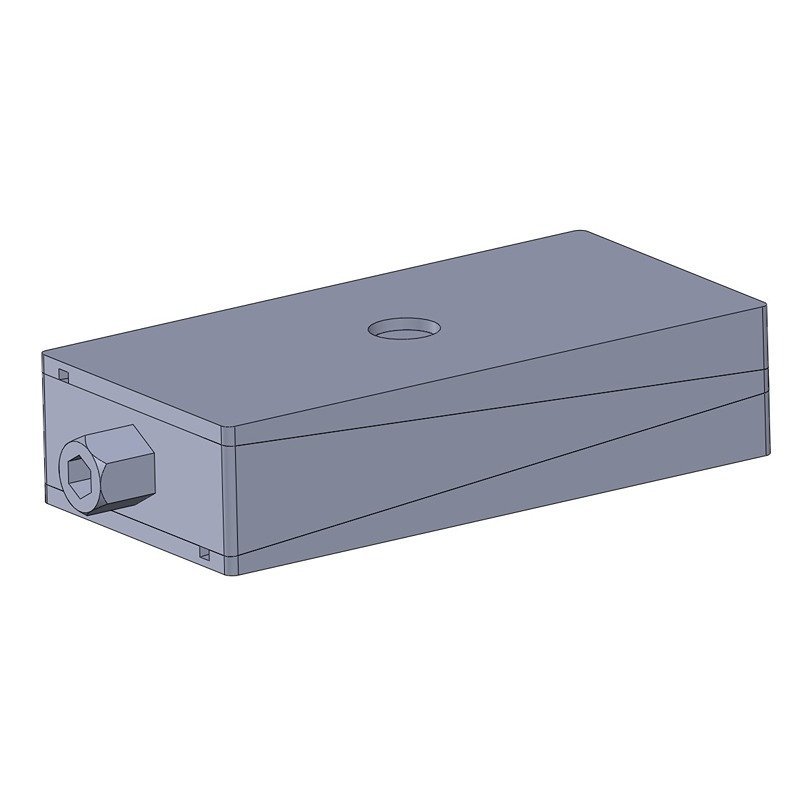

DF
Product
DF
Description
Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Top Pad Type | Sw1 (Mm) | Sw2 (Mm) | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Bottom Pad Thickness (Mm) | Top Pad Thickness (Mm) | Coeff Of Friction Against Concrete |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF1-FG-DG | 1200 | 105 | 55 | 37 | +4/-4 | X | X | 16 | 8 | X | From -16 to 90 | Dark Grey/Green | — | — | — |
| DF2-FG-DG | 3000 | 150 | 75 | 40 | +5/-5 | X | X | 19 | 10 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF3-FG-DG | 5000 | 200 | 100 | 47 | +5/-5 | X | X | 22 | 12 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF4-FG-DG | 10400 | 200 | 200 | 50 | +6/-6 | X | X | 22 | 12 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF5-FG-DG | 13000 | 200 | 250 | 70 | +9/-9 | X | X | 27 | 14 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF6-FG-DG | 20000 | 250 | 320 | 75 | +9/-9 | X | X | 32 | 18 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF7-FG-DG | 30000 | 300 | 400 | 75 | +10/-10 | X | X | 32 | 18 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
| DF8-FG-DG | 40000 | 400 | 500 | 80 | +10/-10 | X | X | 39 | 22 | X | From -16 to 90 | Dark Grey/Green | X | X | X |
