DF1-p2-A1-FG-DG

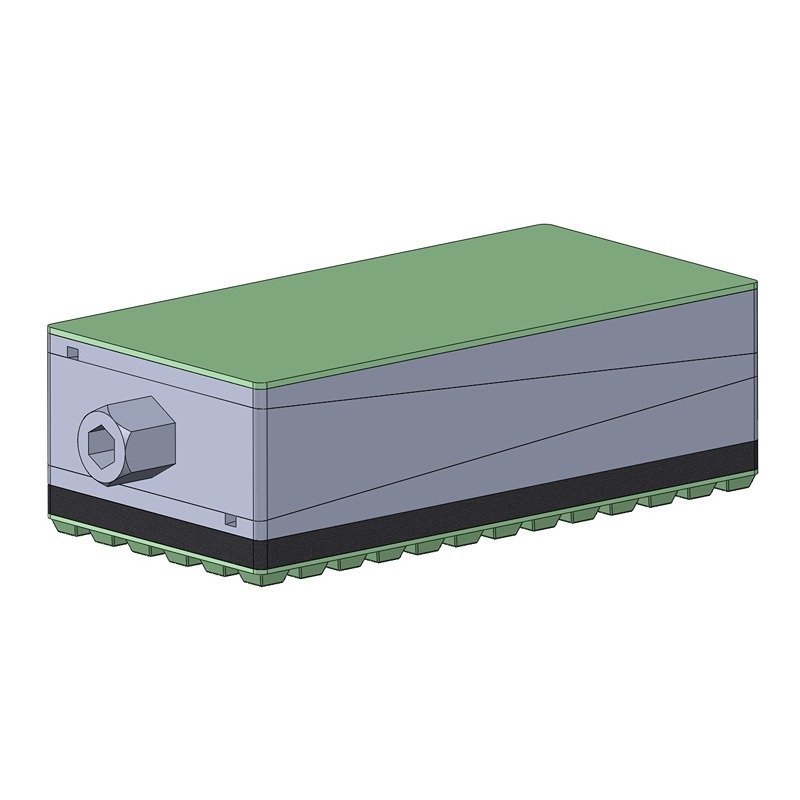

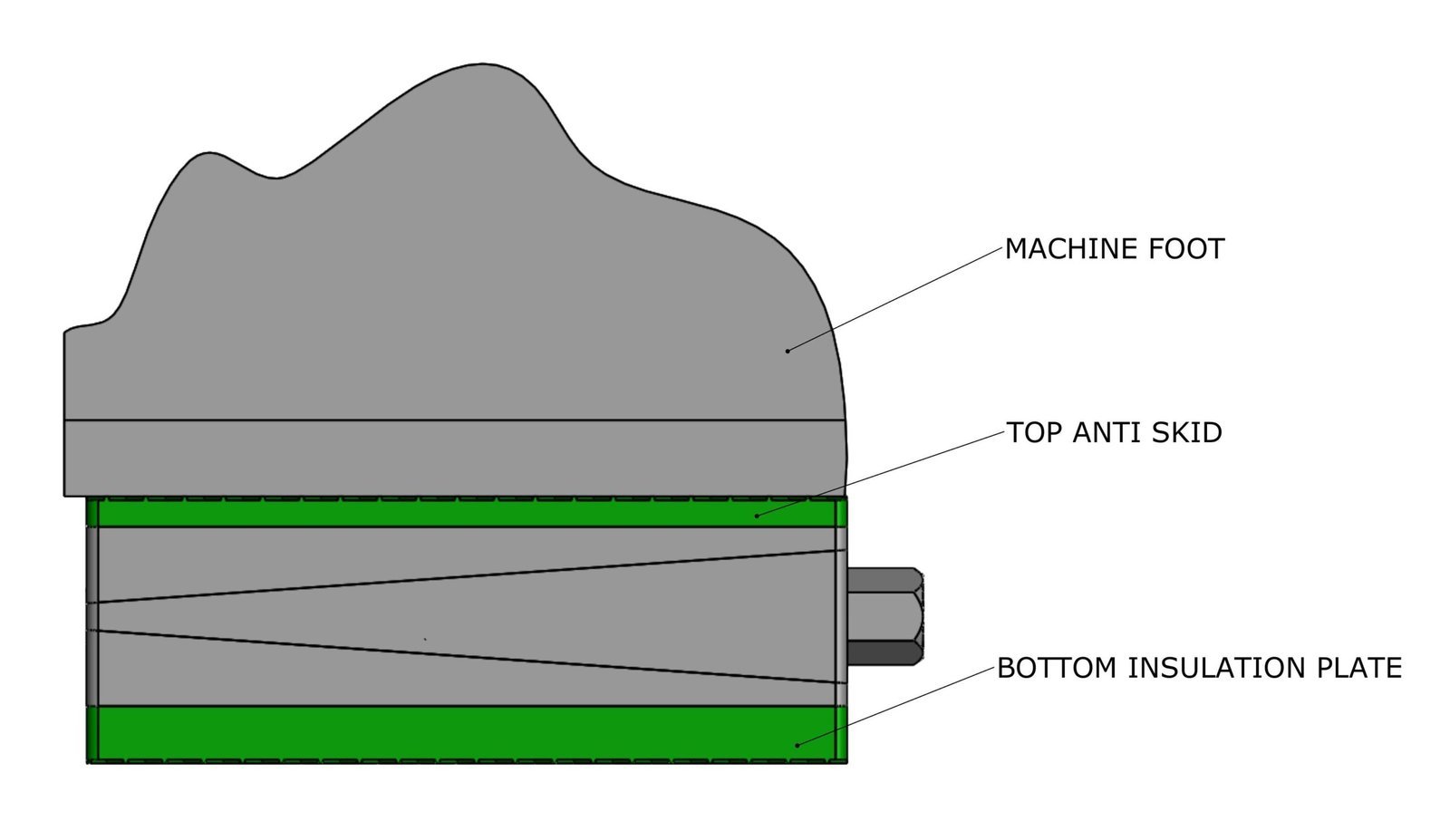

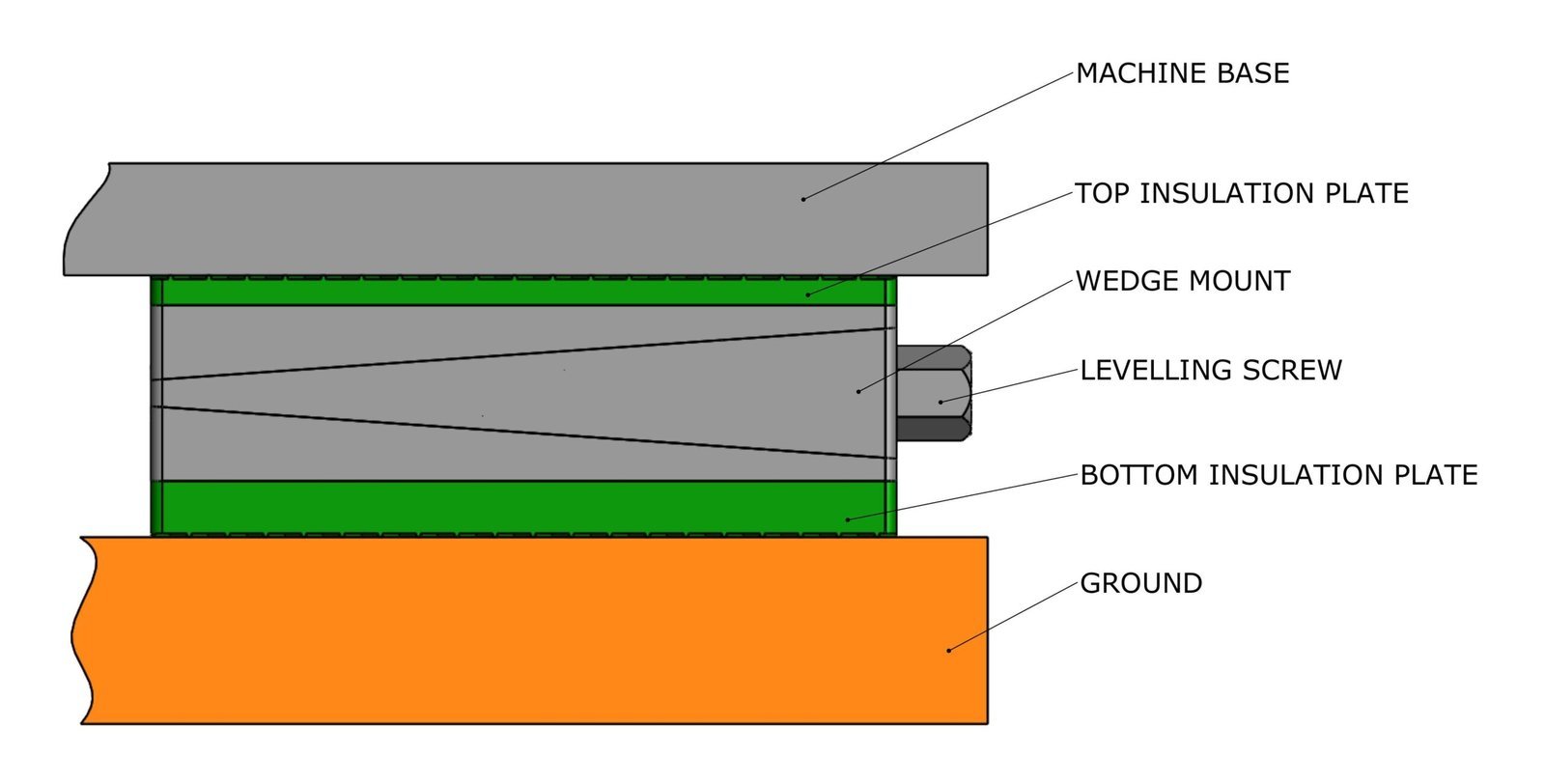

Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Anti - skid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity.Vibration reduction is possible through assembling respective Dynemech Insulation plates.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc. |
| Load Capacity (Kg/Pc) | 180 |
| Length L (Mm) | 105 |
| Width B (Mm) | 55 |
| Height H At Mean Position (Mm) | 59 |
| Adjustment Range (Mm) | +4/-4 |
| Bottom Pad Type | Dp2 |
| Bottom Pad Thickness (Mm) | 20 |
| Top Pad Type | Da1 |
| Top Pad Thickness (Mm) | 2 |

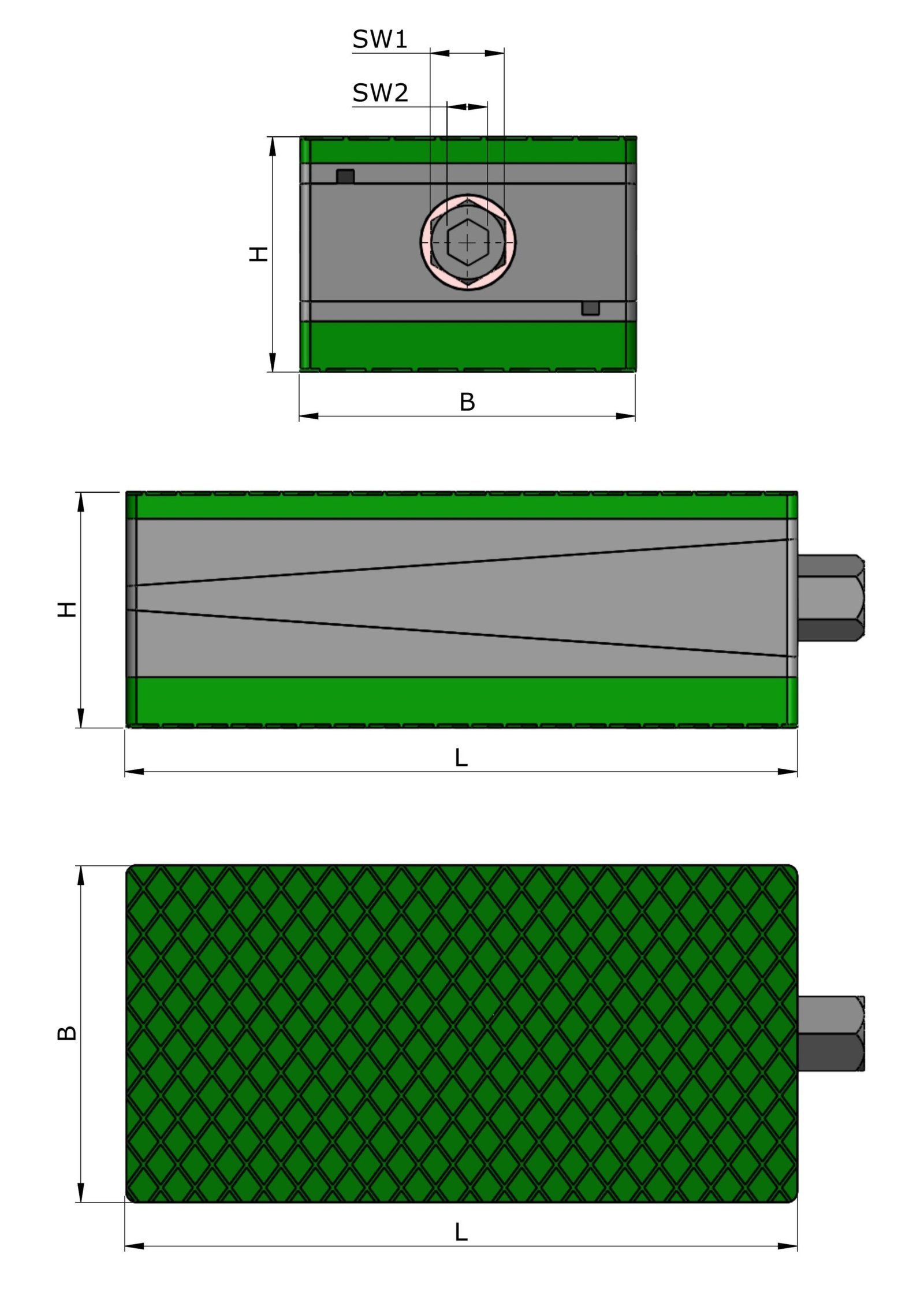

| Sw1 (Mm) | 16 |
| Sw2 (Mm) | 8 |
| Coeff Of Friction Against Concrete | 0.8 |
| Natural Frequency At Max Load (Hz) | 12 |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
