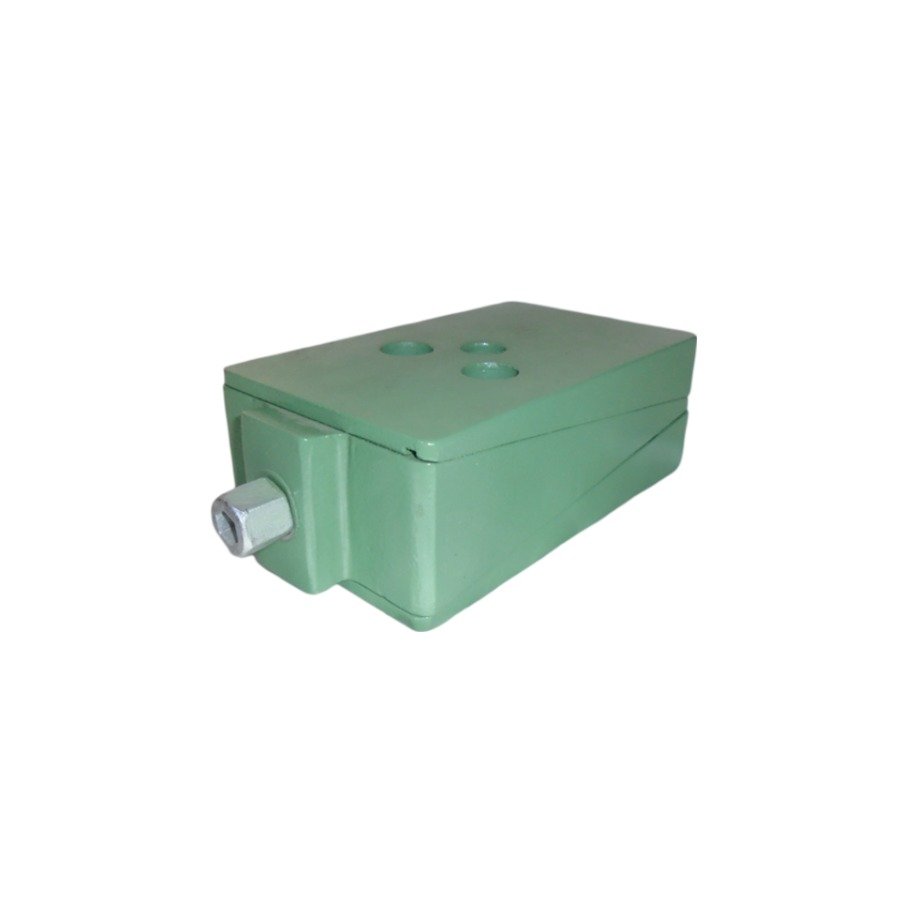

DFHP-150
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.

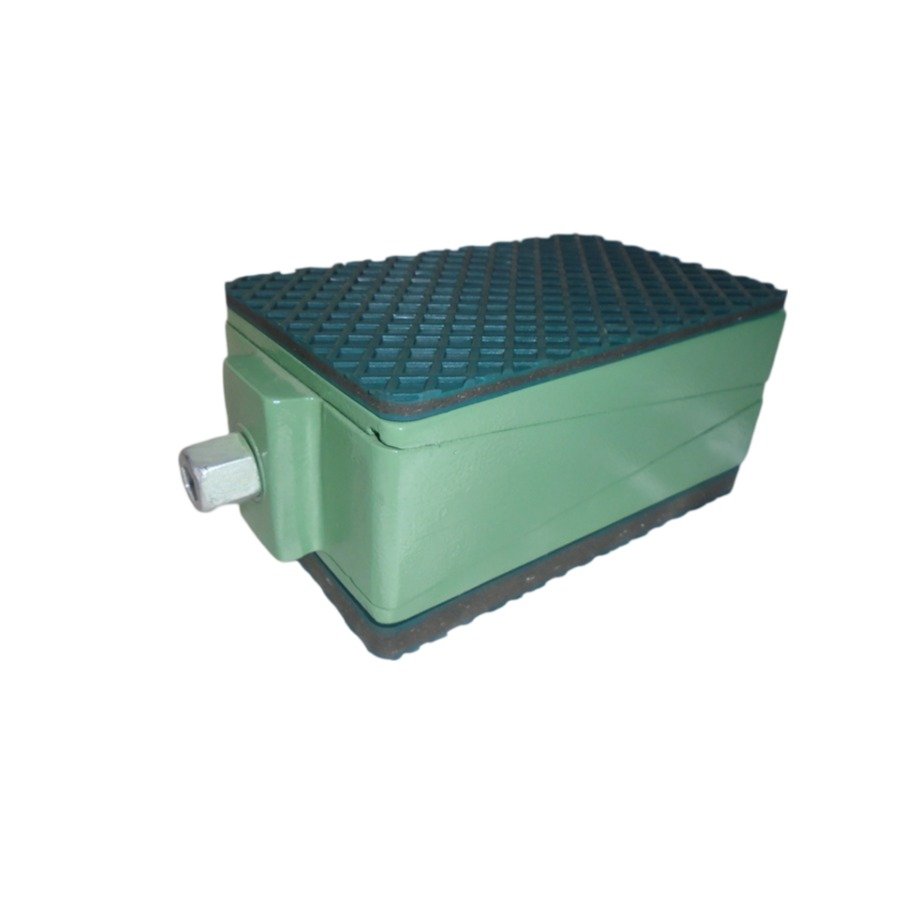

DFHP-u-150
Product
DFHP-u-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-u-a2-158-FG-DG | 2250 | 200 | 125 | 158 | +8/-8 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFHP2-u-a2-158-FG-DG | 2700 | 200 | 150 | 158 | +10/-10 | Du | 15 | Da2 | 8 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
| DFHP3-u-a2-158-FG-DG | 4284 | 280 | 170 | 158 | +12.5/-12.5 | Du | 15 | Da2 | 8 | 39 | 22 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green |
DFHP-u-10-150
Product
DFHP-u-10-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-u-10-a2-153-FG-DG | 2250 | 200 | 125 | 153 | +8/-8 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DFHP2-u-10-a2-153-FG-DG | 2700 | 200 | 150 | 153 | +10/-10 | Du-10 | 10 | Da2 | 8 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
| DFHP3-u-10-a2-153-FG-DG | 4284 | 280 | 170 | 153 | +12.5/-12.5 | Du-10 | 10 | Da2 | 8 | 39 | 22 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green |
DFHP-u-12-150
Product
DFHP-u-12-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Tool room machines, plastic injection moulding machines, pressure die casting machines, shaper, printing and textile machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-u-12-a2-155-FG-DG | 2250 | 200 | 125 | 155 | +8/-8 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DFHP2-u-12-a2-155-FG-DG | 2700 | 200 | 150 | 155 | +10/-10 | Du-12 | 12 | Da2 | 8 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |
| DFHP3-u-12-a2-155-FG-DG | 4284 | 280 | 170 | 155 | +12.5/-12.5 | Du-12 | 12 | Da2 | 8 | 39 | 22 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green |

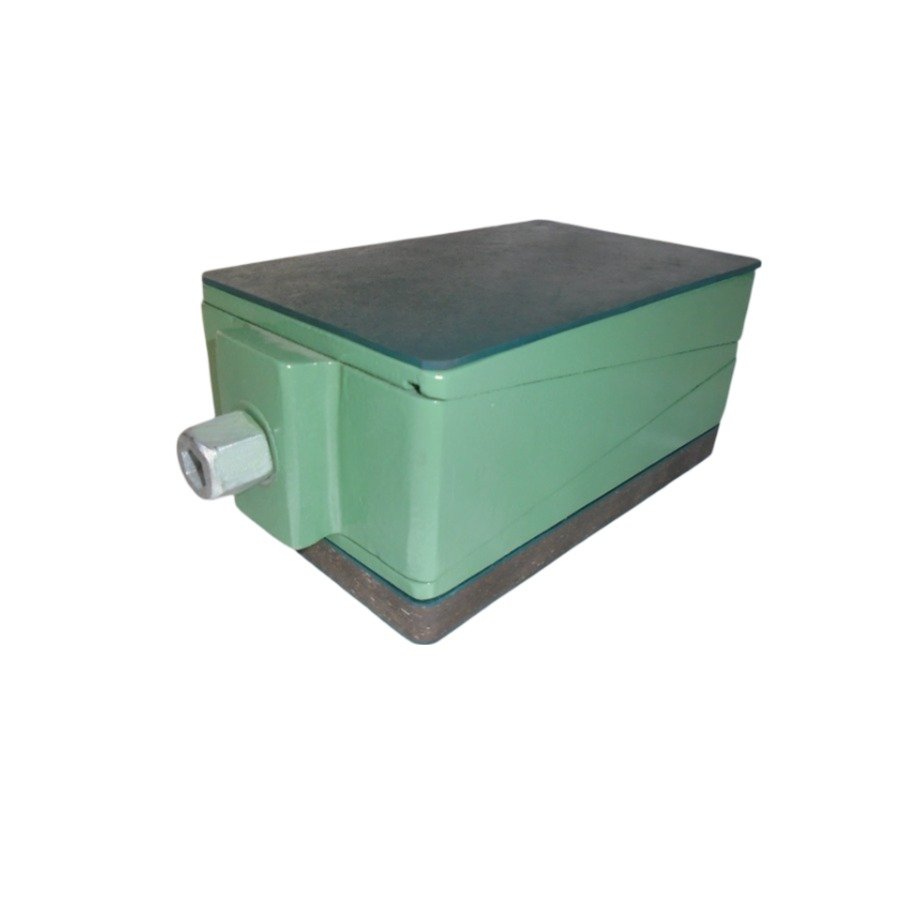

DFHP-m-150
Product
DFHP-m-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Lathe machines, Machining centres, Miling machines, precision grinding machines, drilling machines, turning centres, transfer lines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-m-a1-152-FG-DG | 2500 | 200 | 125 | 152 | +8/-8 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFHP2-m-a1-152-FG-DG | 3000 | 200 | 150 | 152 | +10/-10 | Dm | 15 | Da1 | 2 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |
| DFHP3-m-a1-152-FG-DG | 4760 | 280 | 170 | 152 | +12.5/-12.5 | Dm | 15 | Da1 | 2 | 39 | 22 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green |

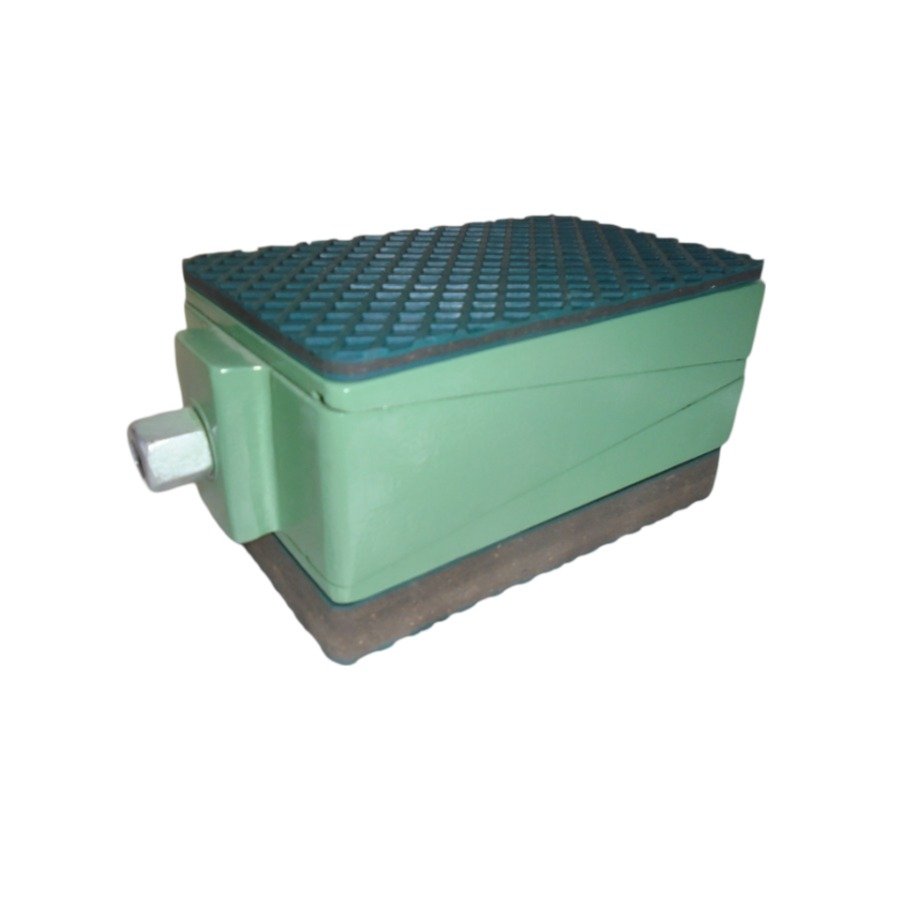

DFHP-i-150
Product
DFHP-i-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Power Presses, Stamping Machines,Shearing Machines, Punching Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-i-a2-168-FG-DG | 3500 | 200 | 125 | 168 | +8/-8 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP2-i-a2-168-FG-DG | 4200 | 200 | 150 | 168 | +10/-10 | Di | 25 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP3-i-a2-168-FG-DG | 6664 | 280 | 170 | 168 | +12.5/-12.5 | Di | 25 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

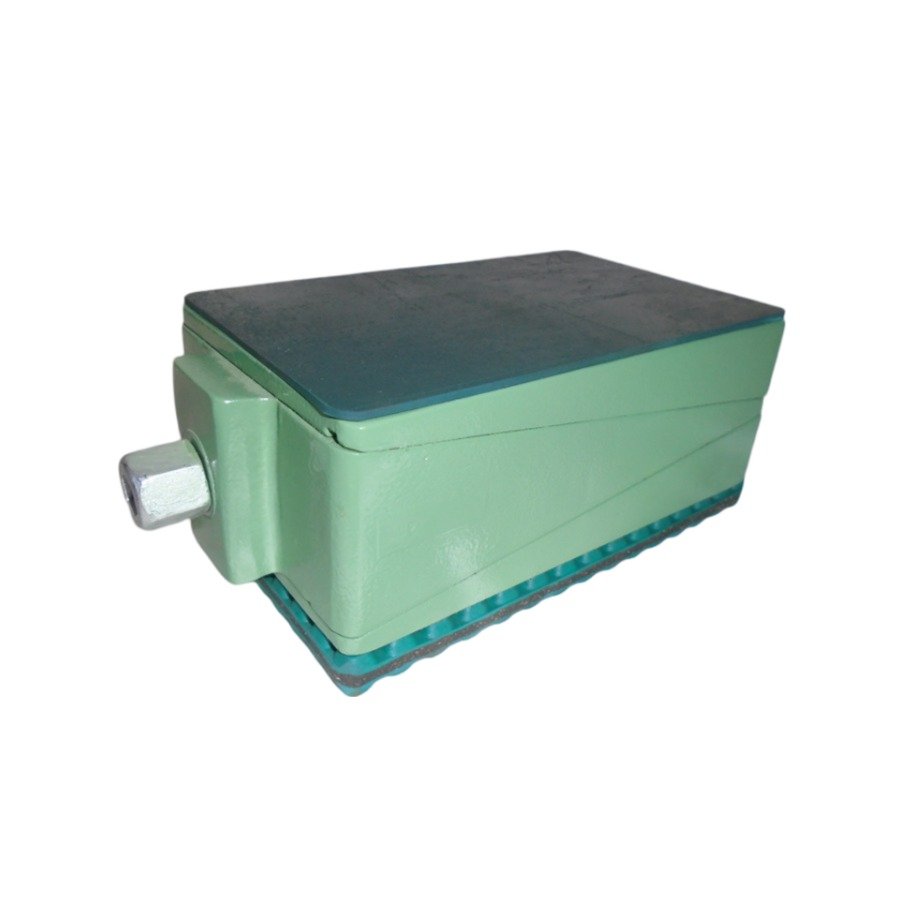

DFHP-p1-150
Product
DFHP-p1-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Passive vibration control of measuring & Testing Machines, Grinders etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-p1-a1-152-FG-DG | 1000 | 200 | 125 | 152 | +8/-8 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP2-p1-a1-152-FG-DG | 1200 | 200 | 150 | 152 | +10/-10 | Dp1 | 15 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP3-p1-a1-152-FG-DG | 1900 | 280 | 170 | 152 | +12.5/-12.5 | Dp1 | 15 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

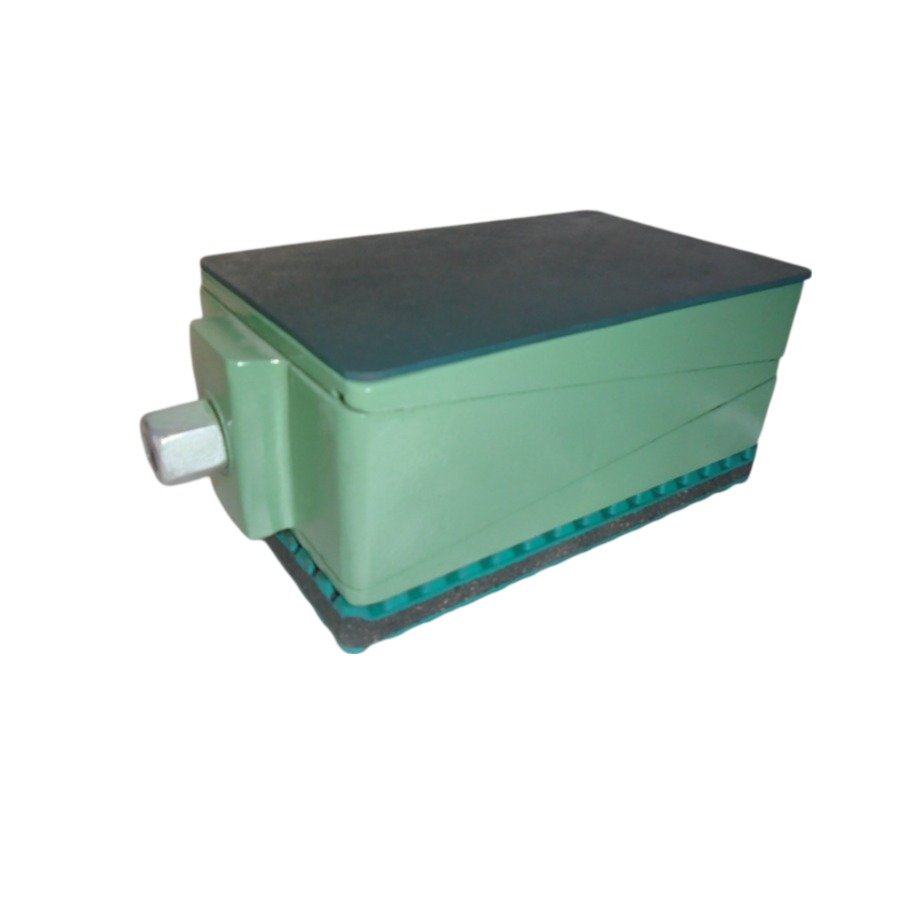

DFHP-p2-150
Product
DFHP-p2-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-p2-a1-157-FG-DG | 1250 | 200 | 125 | 157 | +8/-8 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFHP2-p2-a1-157-FG-DG | 1500 | 200 | 150 | 157 | +10/-10 | Dp2 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |
| DFHP3-p2-a1-157-FG-DG | 2380 | 280 | 170 | 157 | +12.5/-12.5 | Dp2 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green |

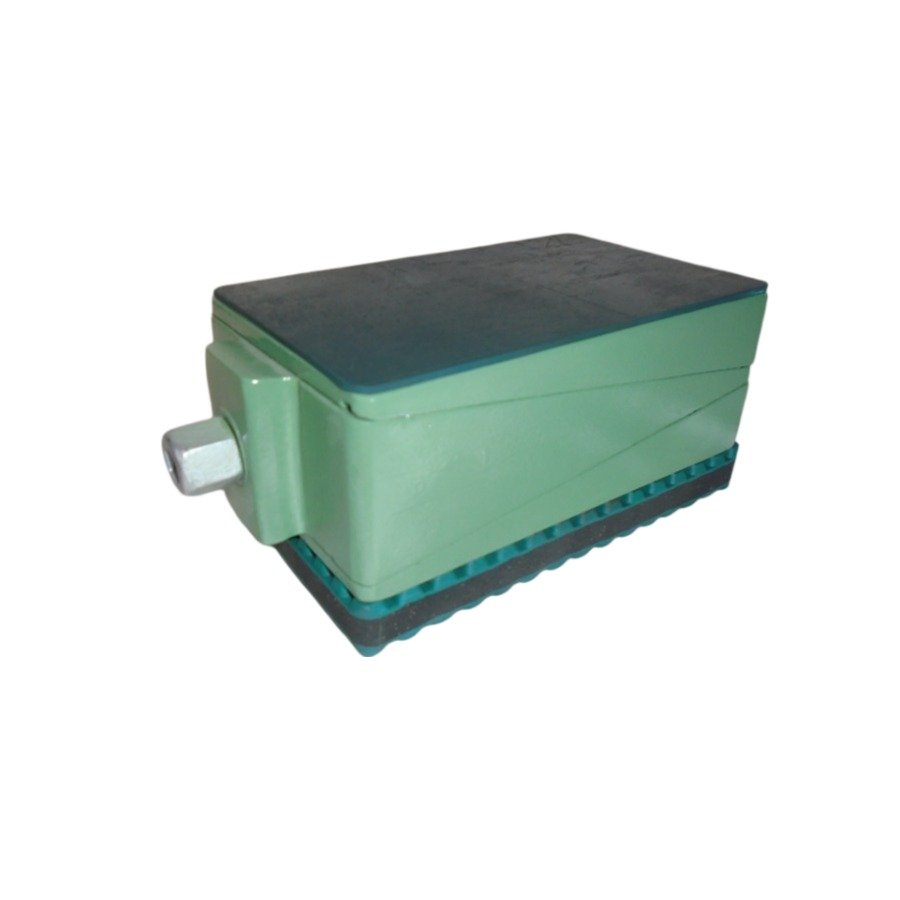

DFHP-p3-150
Product
DFHP-p3-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-p3-a1-161-FG-DG | 1500 | 200 | 125 | 161 | +8/-8 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP2-p3-a1-161-FG-DG | 1800 | 200 | 150 | 161 | +10/-10 | Dp3 | 24 | Da1 | 2 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP3-p3-a1-161-FG-DG | 2860 | 280 | 170 | 161 | +12.5/-12.5 | Dp3 | 24 | Da1 | 2 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

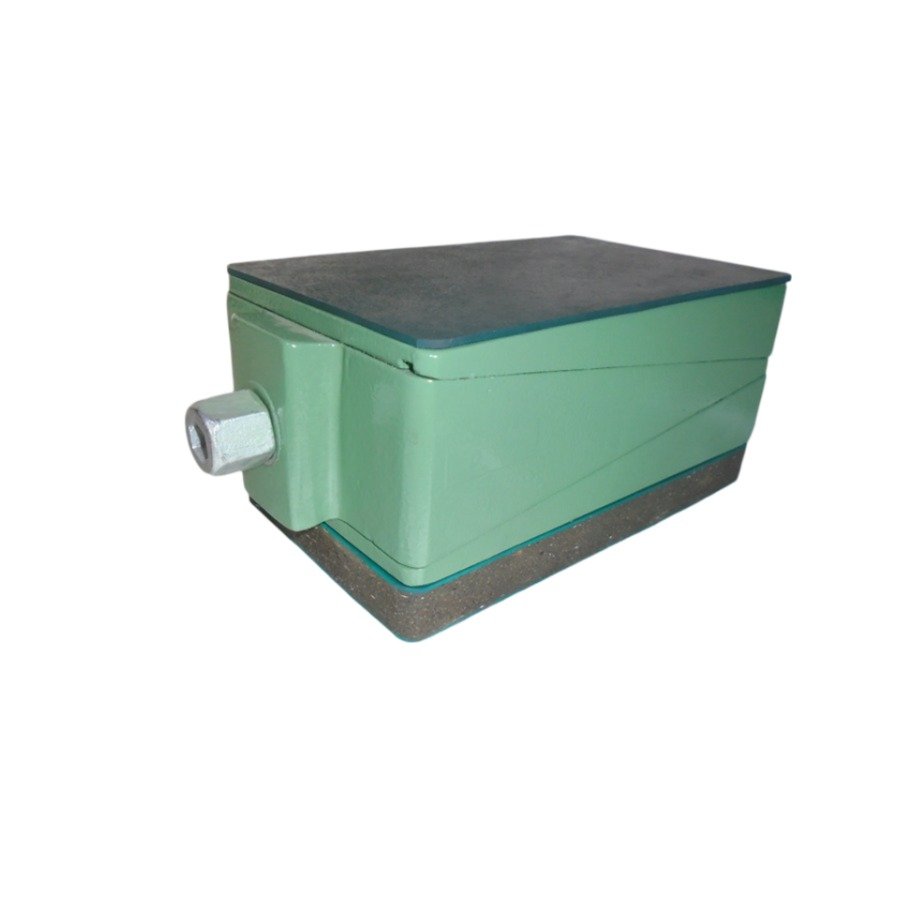

DFHP-s1-150
Product
DFHP-s1-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Active & Passive vibration isolation of metrology and production machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-s1-a1-157-FG-DG | 1250 | 200 | 125 | 157 | +8/-8 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFHP2-s1-a1-157-FG-DG | 1500 | 200 | 150 | 157 | +10/-10 | Ds1 | 20 | Da1 | 2 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |
| DFHP3-s1-a1-157-FG-DG | 2380 | 280 | 170 | 157 | +12.5/-12.5 | Ds1 | 20 | Da1 | 2 | 39 | 22 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green |

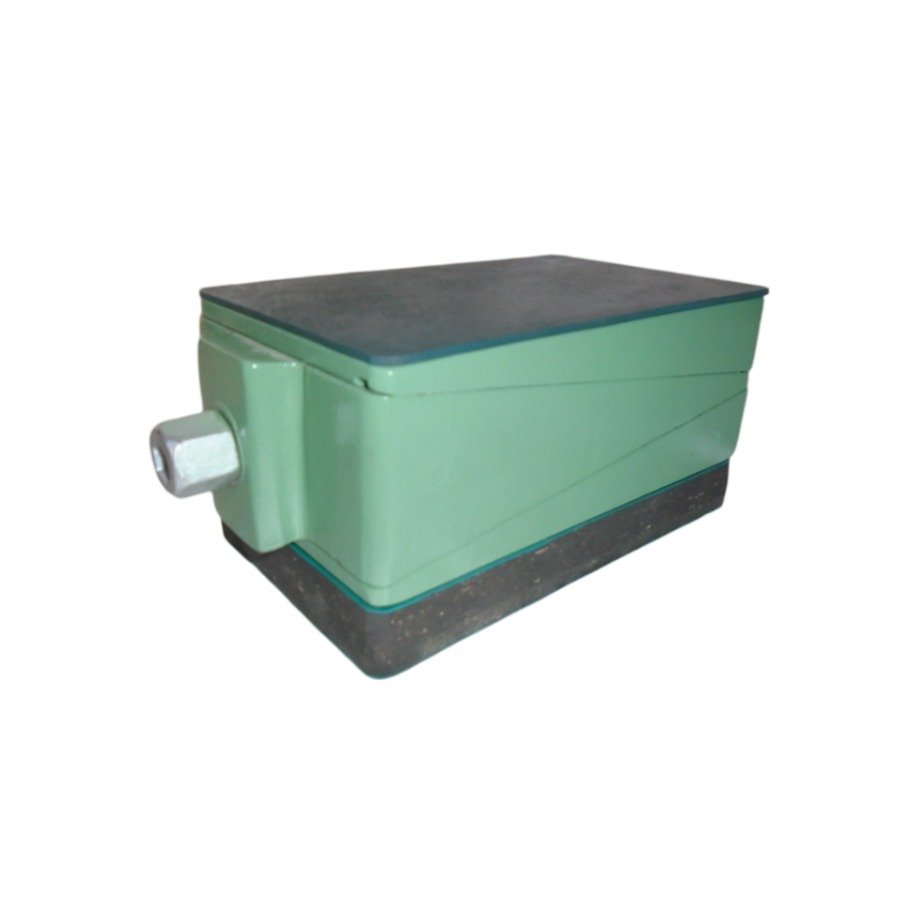

DFHP-s2-150
Product
DFHP-s2-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Medium Presses, Stamping machines, also well suited for high speed rotating machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-s2-a1-162-FG-DG | 2000 | 200 | 125 | 162 | +8/-8 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFHP2-s2-a1-162-FG-DG | 2400 | 200 | 150 | 162 | +10/-10 | Ds2 | 25 | Da1 | 2 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
| DFHP3-s2-a1-162-FG-DG | 3800 | 280 | 170 | 162 | +12.5/-12.5 | Ds2 | 25 | Da1 | 2 | 39 | 22 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green |
DFHP-hs1-150
Product
DFHP-hs1-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-hs1-a2-208-FG-DG | 5000 | 200 | 125 | 208 | +8/-8 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFHP2-hs1-a2-208-FG-DG | 6000 | 200 | 150 | 208 | +10/-10 | Dhs1 | 65 | Da2 | 8 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |
| DFHP3-hs1-a2-208-FG-DG | 9520 | 280 | 170 | 208 | +12.5/-12.5 | Dhs1 | 65 | Da2 | 8 | 39 | 22 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green |

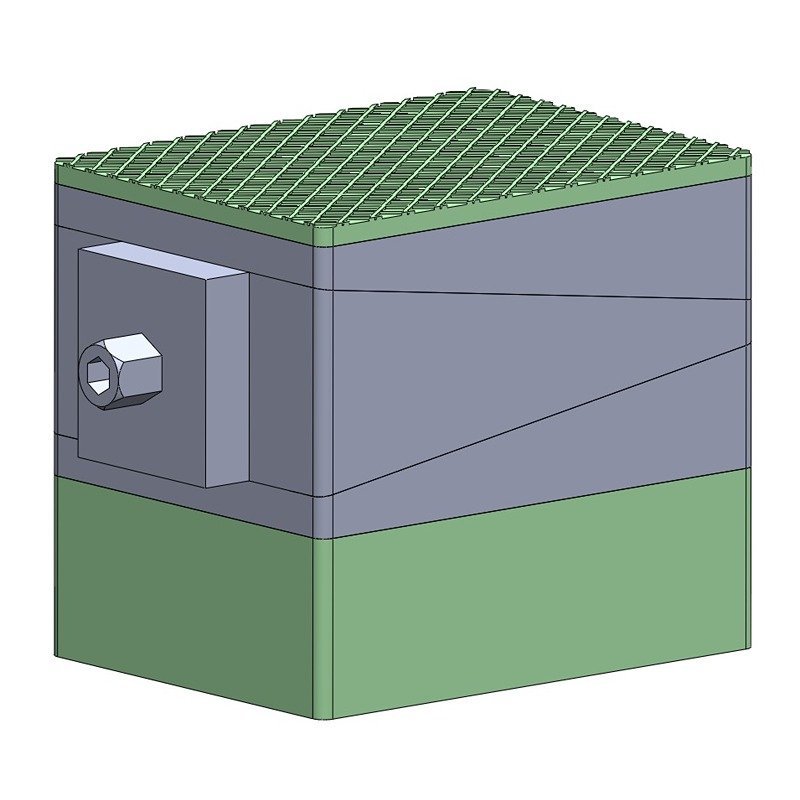

DFHP-hs2-150
Product
DFHP-hs2-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-hs2-a1-202-FG-DG | 2000 | 200 | 125 | 202 | +8/-8 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFHP2-hs2-a1-202-FG-DG | 2400 | 200 | 150 | 202 | +10/-10 | Dhs2 | 65 | Da1 | 2 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
| DFHP3-hs2-a1-202-FG-DG | 3800 | 280 | 170 | 202 | +12.5/-12.5 | Dhs2 | 65 | Da1 | 2 | 39 | 22 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green |
DFHP-hs3-150
Product
DFHP-hs3-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-hs3-a2-193-FG-DG | 7000 | 200 | 125 | 193 | +8/-8 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP2-hs3-a2-193-FG-DG | 8400 | 200 | 150 | 193 | +10/-10 | Dhs3 | 50 | Da2 | 8 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |
| DFHP3-hs3-a2-193-FG-DG | 13330 | 280 | 170 | 193 | +12.5/-12.5 | Dhs3 | 50 | Da2 | 8 | 39 | 22 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green |

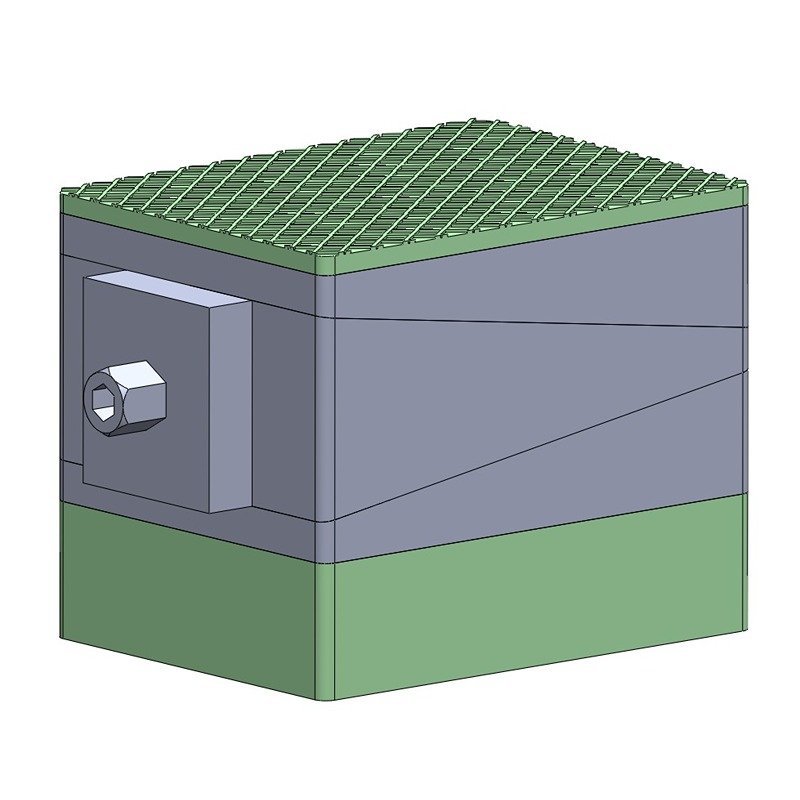

DFHP-hs4-150
Product
DFHP-hs4-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-hs4-a1-187-FG-DG | 3000 | 200 | 125 | 187 | +8/-8 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFHP2-hs4-a1-187-FG-DG | 3600 | 200 | 150 | 187 | +10/-10 | Dhs4 | 50 | Da1 | 2 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFHP3-hs4-a1-187-FG-DG | 5700 | 280 | 170 | 187 | +12.5/-12.5 | Dhs4 | 50 | Da1 | 2 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |

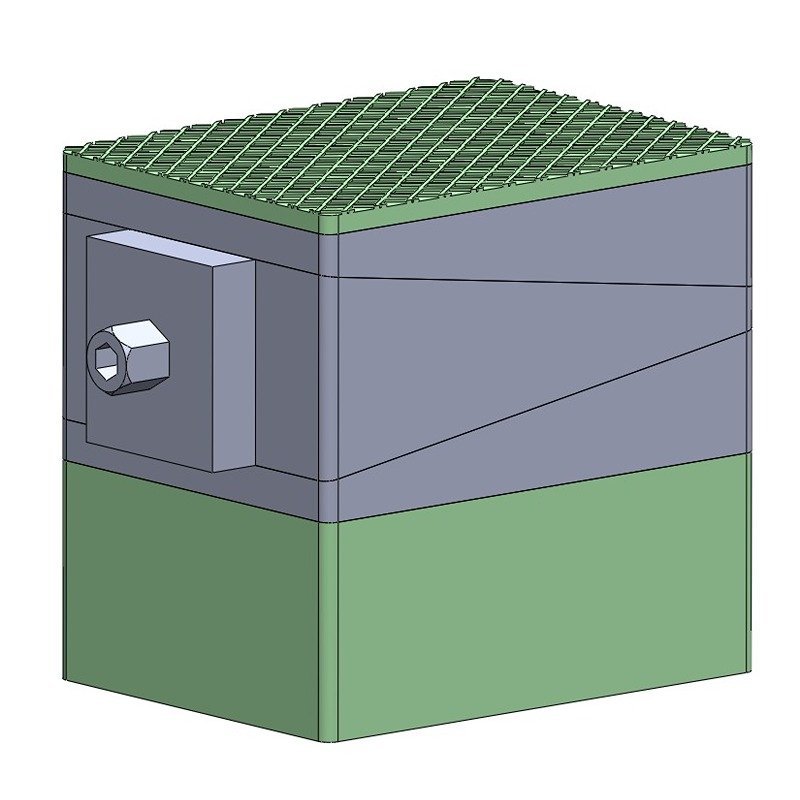

DFHP-hs5-150
Product
DFHP-hs5-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-hs5-a2-223-FG-DG | 7000 | 200 | 125 | 223 | +8/-8 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFHP2-hs5-a2-223-FG-DG | 8400 | 200 | 150 | 223 | +10/-10 | Dhs5 | 80 | Da2 | 8 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
| DFHP3-hs5-a2-223-FG-DG | 13330 | 280 | 170 | 223 | +12.5/-12.5 | Dhs5 | 80 | Da2 | 8 | 39 | 22 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green |
DFHP-h-150
Product
DFHP-h-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-h-a1-152-FG-DG | 7500 | 200 | 125 | 152 | +8/-8 | Dh | 15 | Da1 | 2 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFHP2-h-a1-152-FG-DG | 9000 | 200 | 150 | 152 | +10/-10 | Dh | 15 | Da1 | 2 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |
| DFHP3-h-a1-152-FG-DG | 14000 | 280 | 170 | 152 | +12.5/-12.5 | Dh | 15 | Da1 | 2 | 39 | 22 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green |

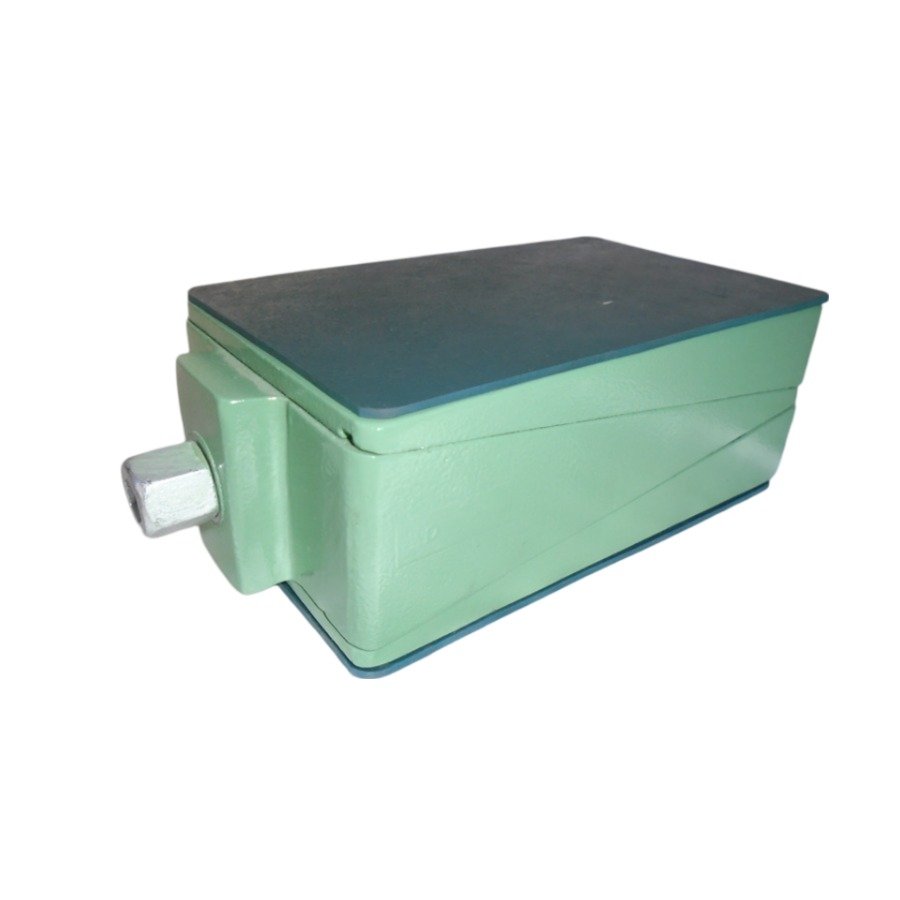

DFHP-a1-150
Product
DFHP-a1-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-a1-a1-139-FG-DG | 4500 | 200 | 125 | 139 | +8/-8 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DFHP2-a1-a1-139-FG-DG | 5400 | 200 | 150 | 139 | +10/-10 | Da1 | 2 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |
| DFHP3-a1-a1-139-FG-DG | 8570 | 280 | 170 | 139 | +12.5/-12.5 | Da1 | 2 | Da1 | 2 | 39 | 22 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green |

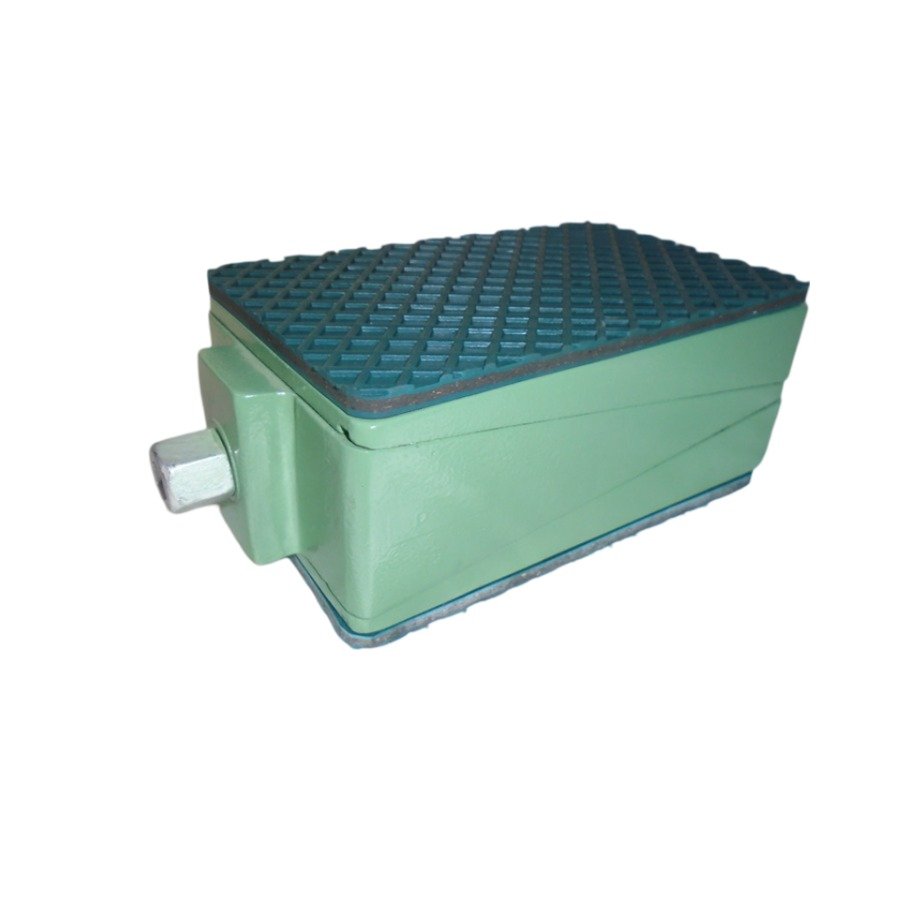

DFHP-a2-150
Product
DFHP-a2-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
Extrusion Machine, Pressure Die, Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-a2-a2-151-FG-DG | 2500 | 200 | 125 | 151 | +8/-8 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DFHP2-a2-a2-151-FG-DG | 3000 | 200 | 150 | 151 | +10/-10 | Da2 | 8 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
| DFHP3-a2-a2-151-FG-DG | 4760 | 280 | 170 | 151 | +12.5/-12.5 | Da2 | 8 | Da2 | 8 | 39 | 22 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green |
DFHP-150
Product
DFHP-150
Description
Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Application
For levelling of all Precicion Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Top Pad Type | Top Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFHP1-135-FG-DG | 13000 | 200 | 125 | 135 | +8/-8 | X | X | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green |
| DFHP2-135-FG-DG | 16000 | 200 | 150 | 135 | +10/-10 | X | X | X | X | 22 | 12 | X | X | From -16 to 90 | Dark Grey/Green |
| DFHP3-135-FG-DG | 23800 | 280 | 170 | 135 | +12.5/-12.5 | X | X | X | X | 39 | 22 | X | X | From -16 to 90 | Dark Grey/Green |
