DFHP2-135-FG-DG

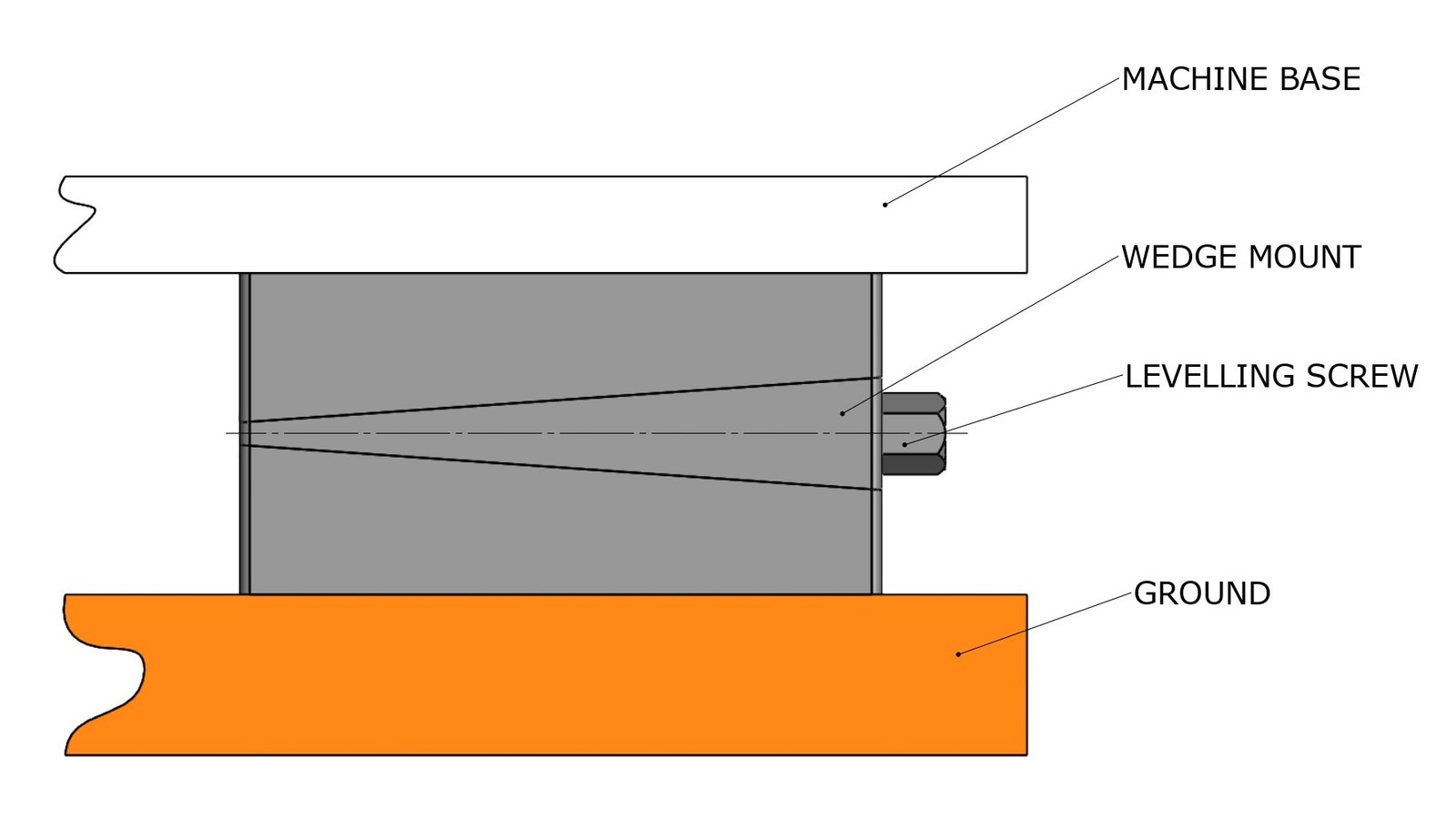

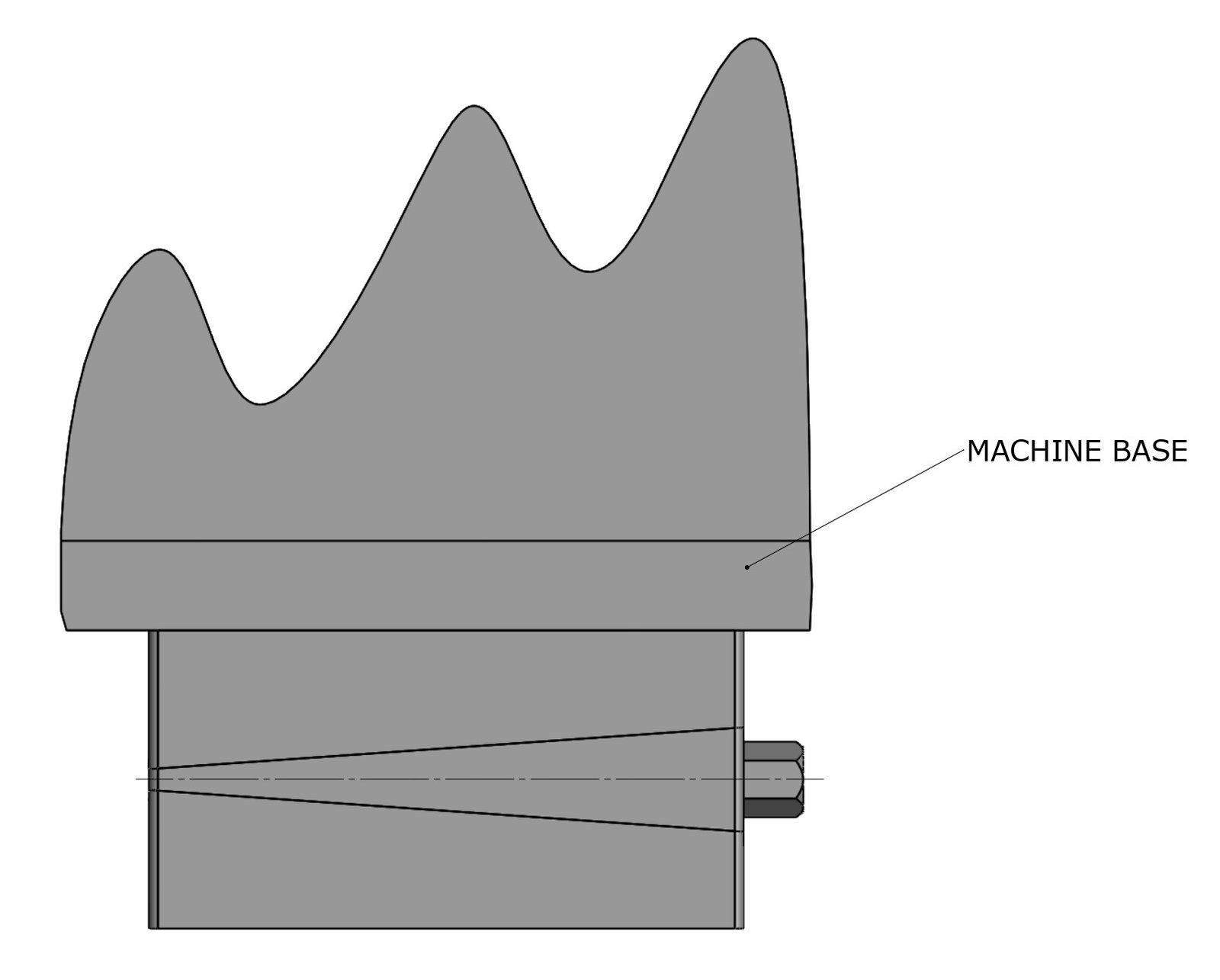

Dynemech Wedge Mounts, Series DFPH-150 are sturdy in construction and installed as free standing. They are designed for very heavy and long bedded machines. DFPH has a height of 100mm to meet TPM requirement. Respective insulation plates are assembled to meet various applications.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precicion Machines. |
| Load Capacity (Kg/Pc) | 16000 |

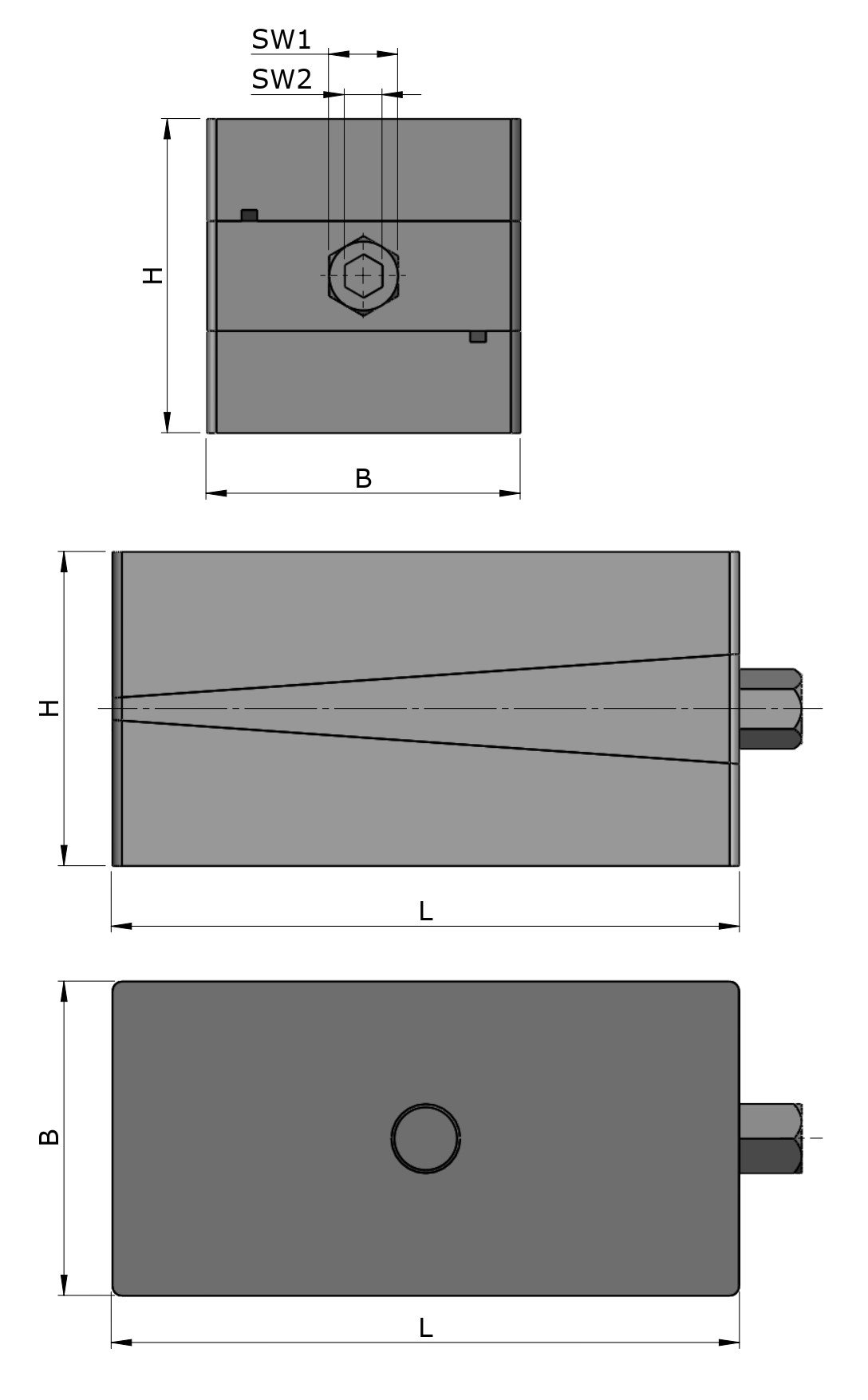

| Length L (Mm) | 200 |
| Width B (Mm) | 150 |
| Height H At Mean Position (Mm) | 135 |

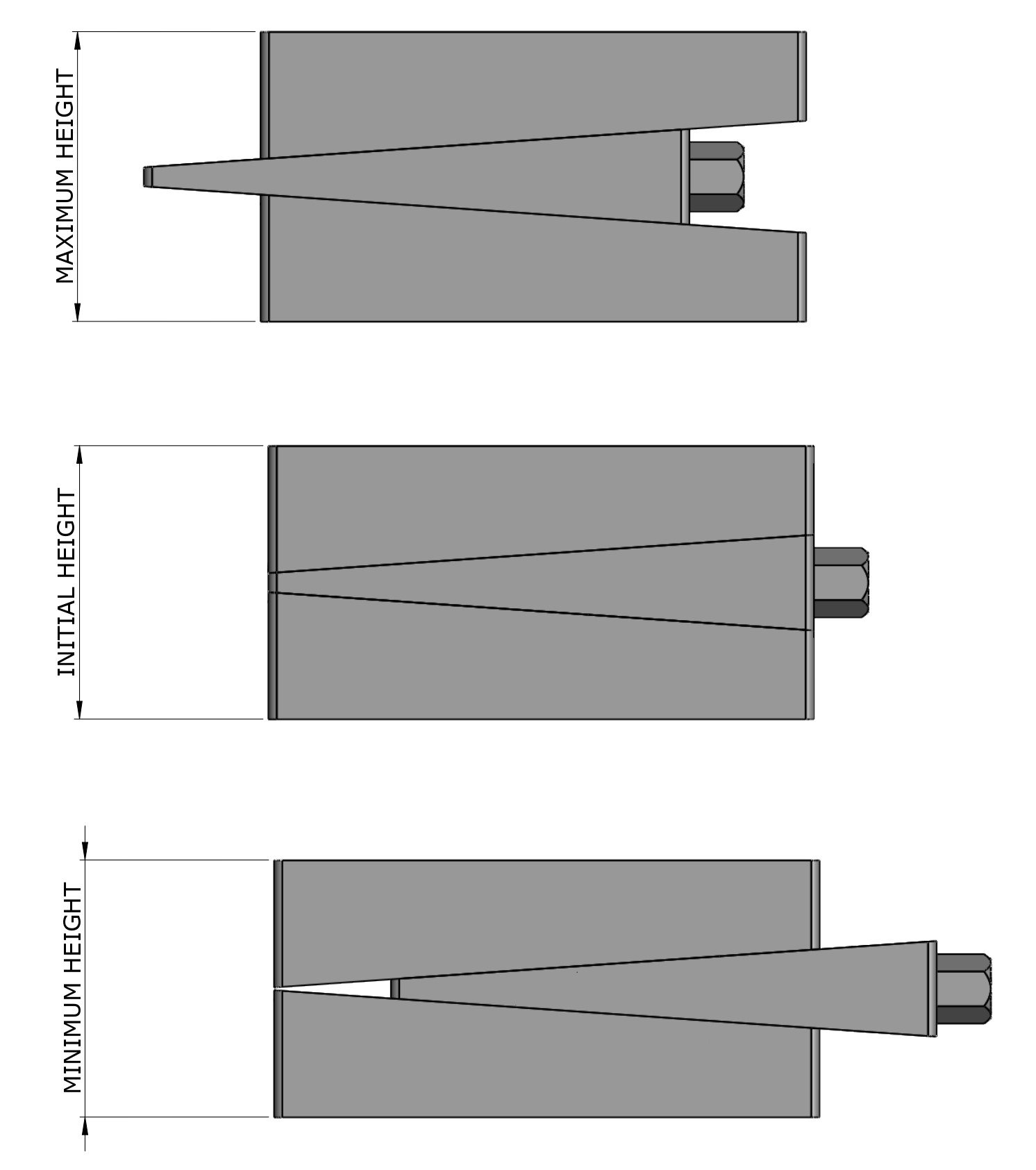

| Adjustment Range (Mm) | +10/-10 |
| Bottom Pad Type | X |
| Bottom Pad Thickness (Mm) | X |
| Top Pad Type | X |
| Top Pad Thickness (Mm) | X |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Coeff Of Friction Against Concrete | X |
| Natural Frequency At Max Load (Hz) | X |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey/Green |
