DFP-p2-100 | Vibration Mounts India

Dynemech Wedge Mounts, Series DFP-100 are designed for industrial machine tools that require precision levelling. Series DFP, have a height of 100mm at mean position to help proper cleaning and repairing under the machine. All other specifications are similar to Series DF.

Measuring & Testing Machines, SurfacePlates, Hardness Testers, Microscopes,EDM Machines, Profile Projectors etc.

8 Models

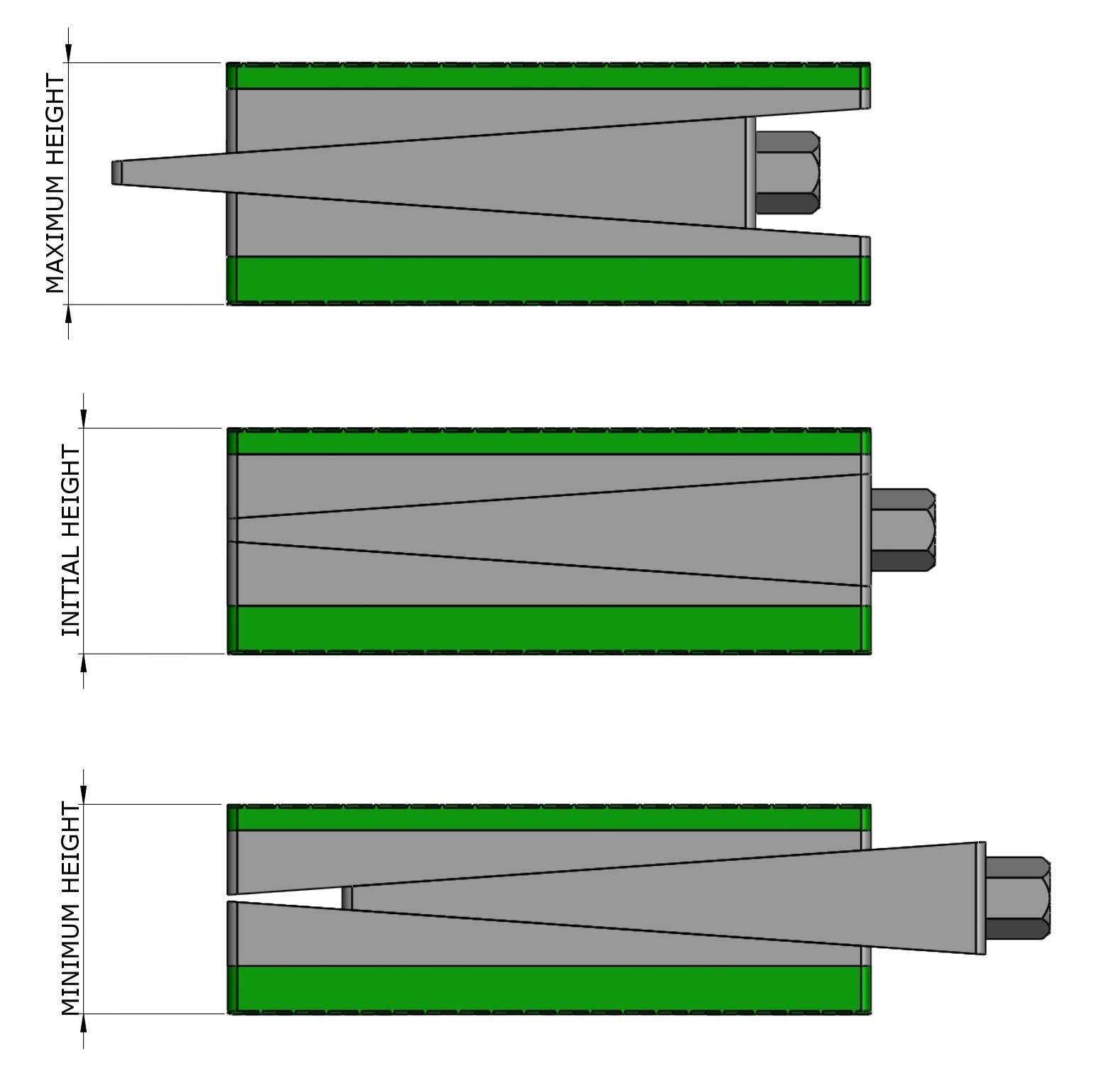

Model	Load Capacity (Kg/Pc)	Length L (Mm)	Width B (Mm)	Height H At Mean Position (Mm)	Adjustment Range (Mm)	Bottom Pad Type	Bottom Pad Thickness (Mm)	Top Pad Type	Top Pad Thickness (Mm)	Sw1 (Mm)	Sw2 (Mm)	Coeff Of Friction Against Concrete	Natural Frequency At Max Load (Hz)	Temperature Range (°C)	Color
DFP1-p2-107-A1-FG-DG	180	105	55	107	+4/-4	Dp2	20	Da1	2	16	8	0.8	12	From -16 to 90	Dark Grey/Green
DFP2-p2-107-A1-FG-DG	400	150	75	107	+5/-5	Dp2	20	Da1	2	19	10	0.8	12	From -16 to 90	Dark Grey/Green
DFP3-p2-107-A1-FG-DG	725	200	100	107	+5/-5	Dp2	20	Da1	2	22	12	0.8	12	From -16 to 90	Dark Grey/Green
DFP4-p2-107-A1-FG-DG	1450	200	200	107	+6/-6	Dp2	20	Da1	2	22	12	0.8	12	From -16 to 90	Dark Grey/Green
DFP5-p2-107-A1-FG-DG	1800	200	250	107	+9/-9	Dp2	20	Da1	2	27	14	0.8	12	From -16 to 90	Dark Grey/Green
DFP6-p2-107-A1-FG-DG	2900	250	320	107	+9/-9	Dp2	20	Da1	2	32	18	0.8	12	From -16 to 90	Dark Grey/Green
DFP7-p2-107-A1-FG-DG	4400	300	400	107	+10/-10	Dp2	20	Da1	2	32	18	0.8	12	From -16 to 90	Dark Grey/Green
DFP8-p2-107-A1-FG-DG	7500	400	500	107	+10/-10	Dp2	20	Da1	2	39	22	0.8	12	From -16 to 90	Dark Grey/Green
