DTH

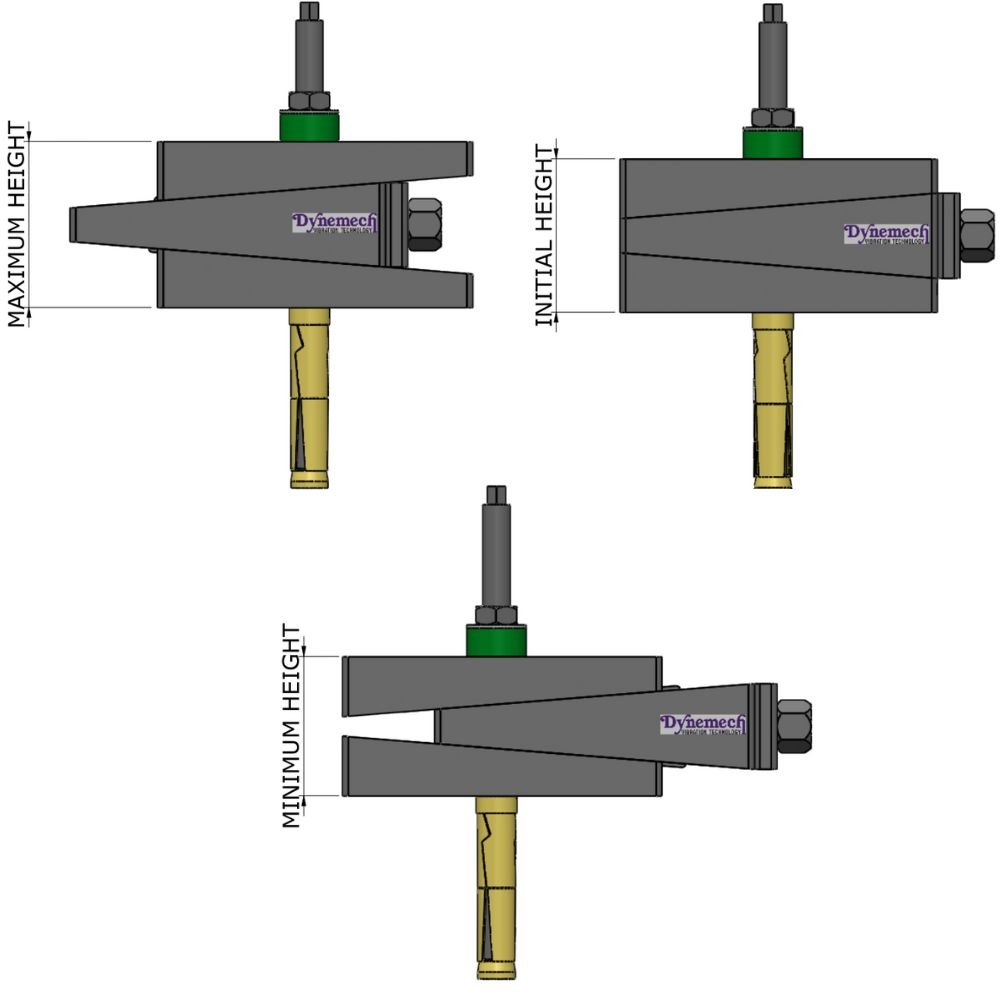

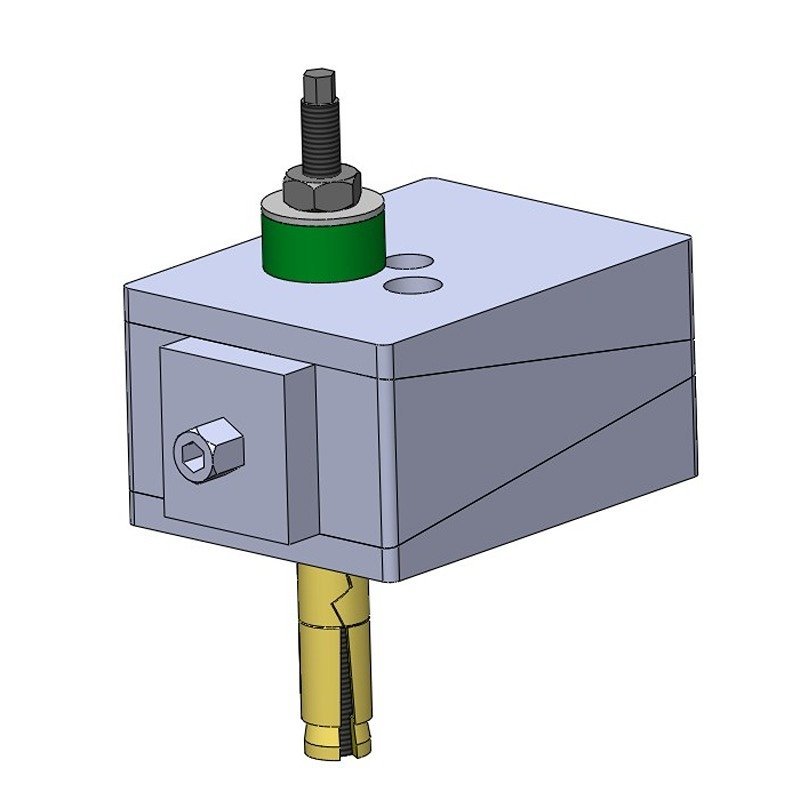

Dynemech Wedge mounts, Series DTH mounts are sturdy in construction. Designed for machines with high axial dynamic forces and must be anchored to the ground. High levelling adjustment avoids the need of extra shims for installations on steep slope surfaces.
Application
For levelling of all Precicion Machines.
Documents
3 Models
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Adjustment Range (Mm) | Sw1 (Mm) | Sw2 (Mm) | Temperature Range (°C) | Color | D (Mm) | E (Mm) | Bore (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTH1-25T-FG-DG | 13000 | 200 | 125 | 73 | +8/-8 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTH2-25T-FG-DG | 16000 | 200 | 150 | 105 | +10/-10 | 22 | 12 | From -16 to 90 | Dark Grey/Green | 75 | 25 | 25 |
| DTH3-28T-FG-DG | 23000 | 280 | 170 | 135 | +12.5/-12.5 | 39 | 22 | From -16 to 90 | Dark Grey/Green | 145 | 30 | 28 |
