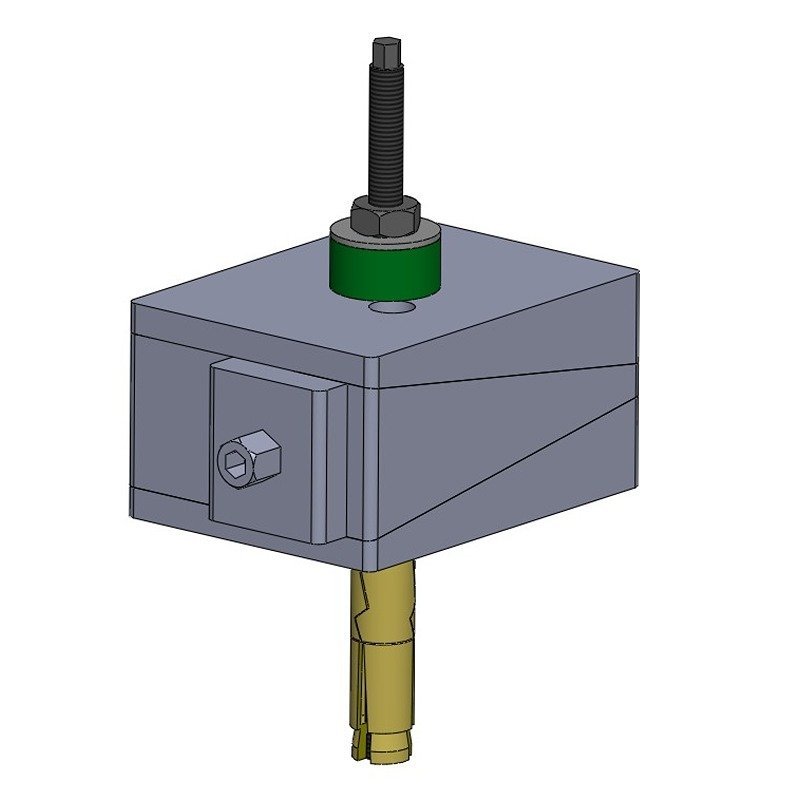

DTSP
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.

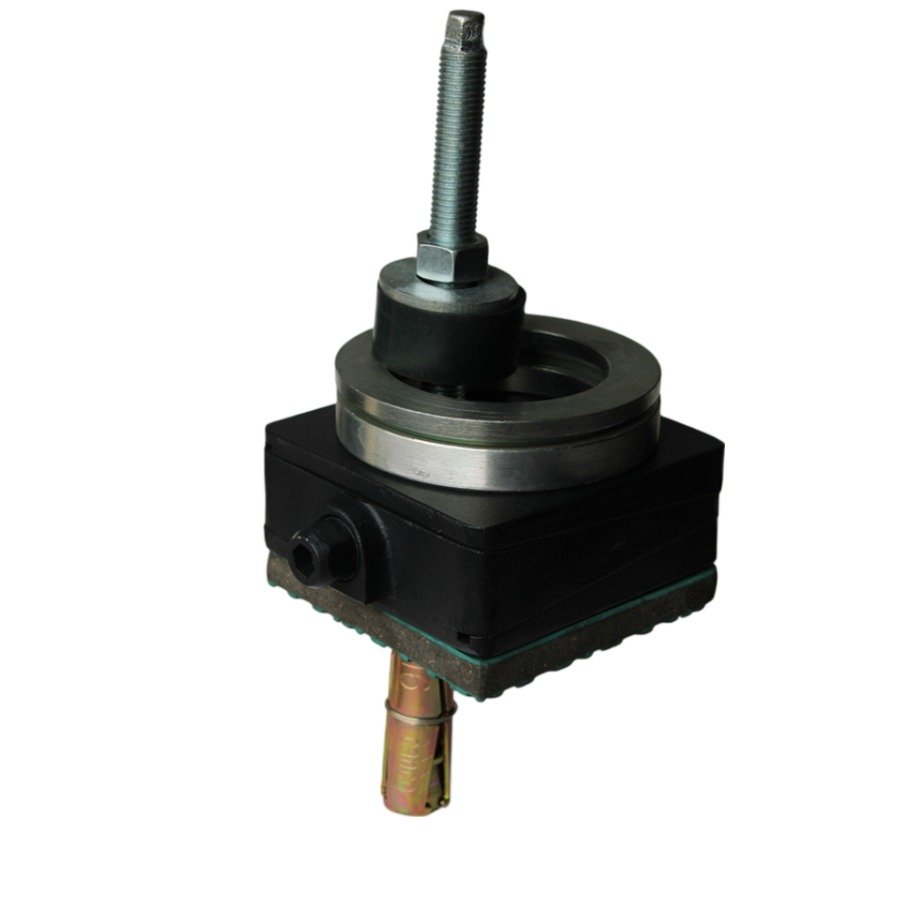

DTSP-u
Product
DTSP-u
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-u-22T-FG-GR | 1200 | 115 | 115 | 59 | Du | 15 | 19 | 10 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-u-22T-FG-GR | 2000 | 150 | 150 | 65 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-u-28T-FG-GR | 3600 | 200 | 200 | 65 | Du | 15 | 22 | 12 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-u-28T-FG-GR | 4500 | 200 | 250 | 85 | Du | 15 | 27 | 14 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-u-28T-FG-GR | 7200 | 250 | 320 | 90 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-u-30T-FG-GR | 10000 | 300 | 400 | 90 | Du | 15 | 32 | 18 | 0.9 | 18 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-u-10
Product
DTSP-u-10
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-u-10-22T-FG-GR | 1200 | 115 | 115 | 54 | Du-10 | 10 | 19 | 10 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-u-10-22T-FG-GR | 2000 | 150 | 150 | 60 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-u-10-28T-FG-GR | 3600 | 200 | 200 | 60 | Du-10 | 10 | 22 | 12 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-u-10-28T-FG-GR | 4500 | 200 | 250 | 80 | Du-10 | 10 | 27 | 14 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-u-10-28T-FG-GR | 7200 | 250 | 320 | 85 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-u-10-30T-FG-GR | 10000 | 300 | 400 | 85 | Du-10 | 10 | 32 | 18 | 0.9 | 25 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-u-12
Product
DTSP-u-12
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-u-12-22T-FG-GR | 1200 | 115 | 115 | 56 | Du-12 | 12 | 19 | 10 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-u-12-22T-FG-GR | 2000 | 150 | 150 | 62 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-u-12-28T-FG-GR | 3600 | 200 | 200 | 62 | Du-12 | 12 | 22 | 12 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-u-12-28T-FG-GR | 4500 | 200 | 250 | 82 | Du-12 | 12 | 27 | 14 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-u-12-28T-FG-GR | 7200 | 250 | 320 | 87 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-u-12-30T-FG-GR | 10000 | 300 | 400 | 87 | Du-12 | 12 | 32 | 18 | 0.9 | 20 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-m
Product
DTSP-m
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-m-22T-FG-GR | 1300 | 115 | 115 | 59 | Dm | 15 | 19 | 10 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-m-22T-FG-GR | 2250 | 150 | 150 | 65 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-m-28T-FG-GR | 4000 | 200 | 200 | 65 | Dm | 15 | 22 | 12 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-m-28T-FG-GR | 5000 | 200 | 250 | 85 | Dm | 15 | 27 | 14 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-m-28T-FG-GR | 8000 | 250 | 320 | 90 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-m-30T-FG-GR | 8500 | 300 | 400 | 90 | Dm | 15 | 32 | 18 | 0.7 | 30 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

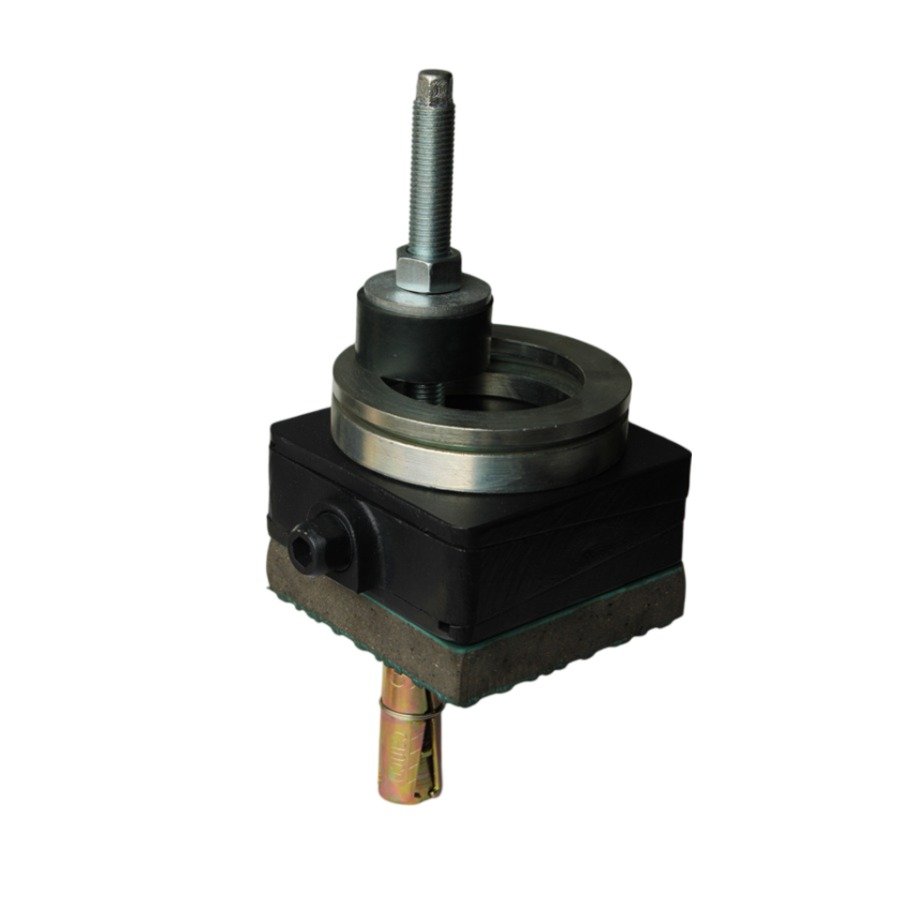

DTSP-i
Product
DTSP-i
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-i-22T-FG-GR | 1800 | 115 | 115 | 69 | Di | 25 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-i-22T-FG-GR | 2900 | 150 | 150 | 75 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-i-28T-FG-GR | 5200 | 200 | 200 | 75 | Di | 25 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-i-28T-FG-GR | 6500 | 200 | 250 | 95 | Di | 25 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-i-28T-FG-GR | 10000 | 250 | 320 | 100 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-i-30T-FG-GR | 15000 | 300 | 400 | 100 | Di | 25 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-p1
Product
DTSP-p1
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-p1-22T-FG-GR | 530 | 115 | 115 | 59 | Dp1 | 15 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-p1-22T-FG-GR | 900 | 150 | 150 | 65 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-p1-28T-FG-GR | 1600 | 200 | 200 | 65 | Dp1 | 15 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-p1-28T-FG-GR | 2000 | 200 | 250 | 85 | Dp1 | 15 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-p1-28T-FG-GR | 3200 | 250 | 320 | 90 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-p1-30T-FG-GR | 4800 | 300 | 400 | 90 | Dp1 | 15 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

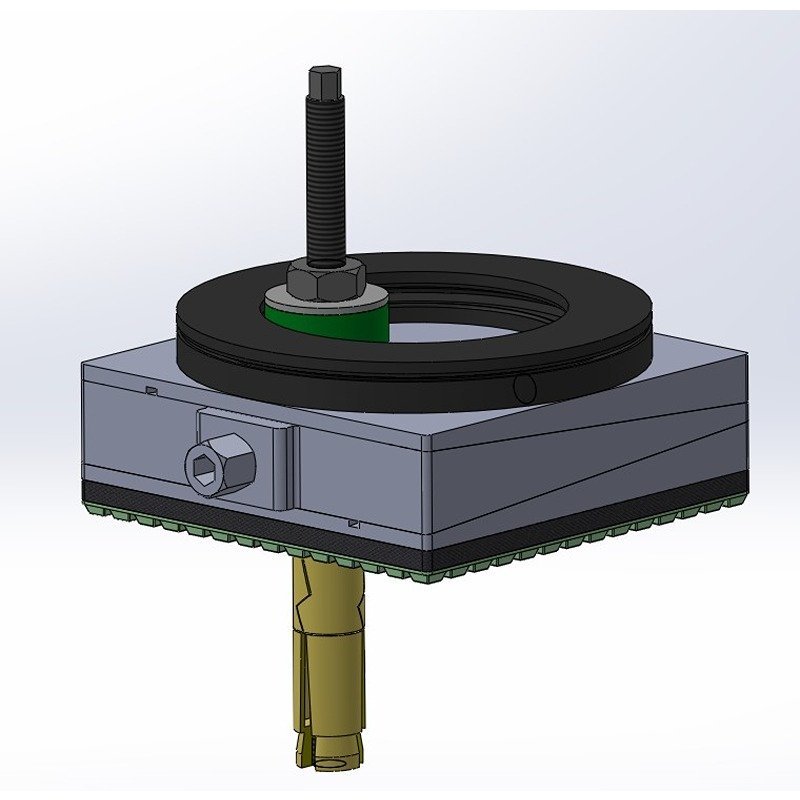

DTSP-p2
Product
DTSP-p2
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Medium Presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed Machines on upper floors.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-p2-22T-FG-GR | 660 | 115 | 115 | 64 | Dp2 | 20 | 19 | 10 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-p2-22T-FG-GR | 1125 | 150 | 150 | 70 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-p2-28T-FG-GR | 2000 | 200 | 200 | 70 | Dp2 | 20 | 22 | 12 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-p2-28T-FG-GR | 2500 | 200 | 250 | 90 | Dp2 | 20 | 27 | 14 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-p2-28T-FG-GR | 4000 | 250 | 320 | 95 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-p2-30T-FG-GR | 6000 | 300 | 400 | 95 | Dp2 | 20 | 32 | 18 | 0.8 | 12 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-p3
Product
DTSP-p3
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Tool Room Machines on suspended Floors, Light Weight Presses, Compressors etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-p3-22T-FG-GR | 800 | 115 | 115 | 68 | Dp3 | 24 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-p3-22T-FG-GR | 1350 | 150 | 150 | 74 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-p3-28T-FG-GR | 2400 | 200 | 200 | 74 | Dp3 | 24 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-p3-28T-FG-GR | 3000 | 200 | 250 | 94 | Dp3 | 24 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-p3-28T-FG-GR | 4800 | 250 | 320 | 99 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-p3-30T-FG-GR | 7200 | 300 | 400 | 99 | Dp3 | 24 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-s1
Product
DTSP-s1
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-s1-22T-FG-GR | 660 | 115 | 115 | 64 | Ds1 | 20 | 19 | 10 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-s1-22T-FG-GR | 1120 | 150 | 150 | 70 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-s1-28T-FG-GR | 2000 | 200 | 200 | 70 | Ds1 | 20 | 22 | 12 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-s1-28T-FG-GR | 2500 | 200 | 250 | 90 | Ds1 | 20 | 27 | 14 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-s1-28T-FG-GR | 4000 | 250 | 320 | 95 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-s1-30T-FG-GR | 6000 | 300 | 400 | 95 | Ds1 | 20 | 32 | 18 | 0.8 | 15 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

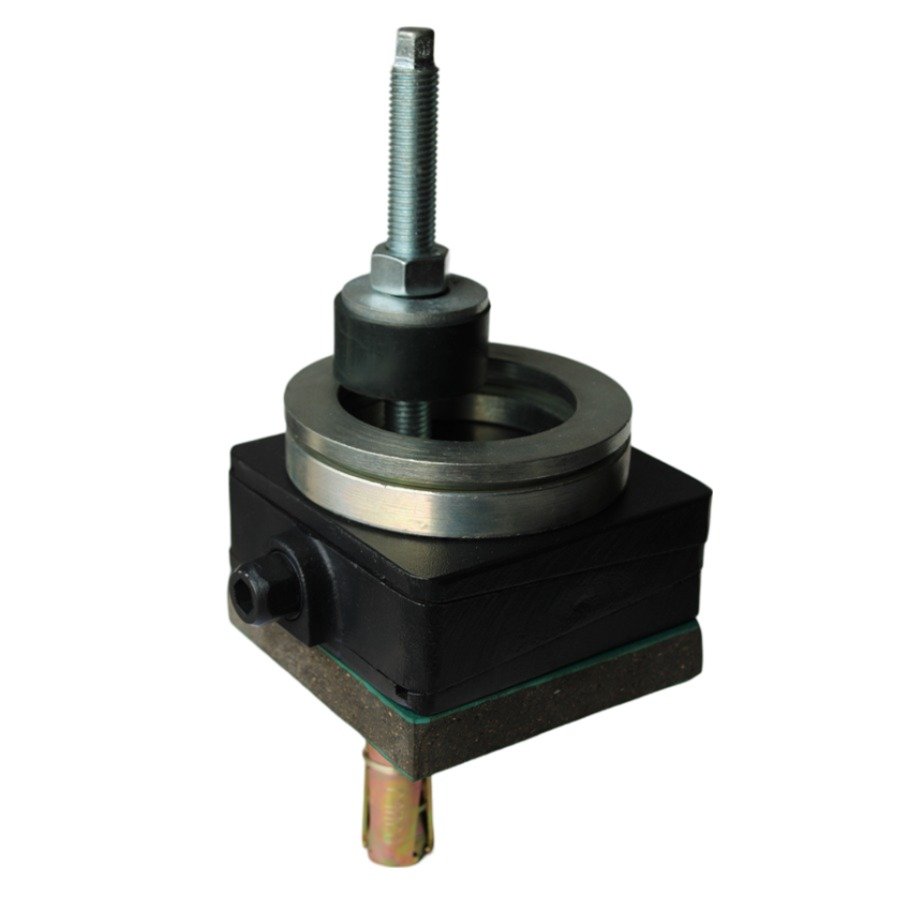

DTSP-s2
Product
DTSP-s2
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-s2-22T-FG-GR | 950 | 115 | 115 | 69 | Ds2 | 25 | 19 | 10 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-s2-22T-FG-GR | 1600 | 150 | 150 | 75 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-s2-28T-FG-GR | 2800 | 200 | 200 | 75 | Ds2 | 25 | 22 | 12 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-s2-28T-FG-GR | 3500 | 200 | 250 | 95 | Ds2 | 25 | 27 | 14 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-s2-28T-FG-GR | 5500 | 250 | 320 | 100 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-s2-30T-FG-GR | 8500 | 300 | 400 | 100 | Ds2 | 25 | 32 | 18 | 0.8 | 8 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-hs1
Product
DTSP-hs1
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-hs1-22T-FG-GR | 2600 | 115 | 115 | 109 | Dhs1 | 65 | 19 | 10 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-hs1-22T-FG-GR | 4500 | 150 | 150 | 115 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-hs1-28T-FG-GR | 8000 | 200 | 200 | 115 | Dhs1 | 65 | 22 | 12 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-hs1-28T-FG-GR | 10000 | 200 | 250 | 135 | Dhs1 | 65 | 27 | 14 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-hs1-28T-FG-GR | 16000 | 250 | 320 | 140 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-hs1-30T-FG-GR | 24000 | 300 | 400 | 140 | Dhs1 | 65 | 32 | 18 | 0.8 | 6 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-hs2
Product
DTSP-hs2
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-hs2-22T-FG-GR | 1060 | 115 | 115 | 109 | Dhs2 | 65 | 19 | 10 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-hs2-22T-FG-GR | 1800 | 150 | 150 | 115 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-hs2-28T-FG-GR | 3200 | 200 | 200 | 115 | Dhs2 | 65 | 22 | 12 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-hs2-28T-FG-GR | 4000 | 200 | 250 | 135 | Dhs2 | 65 | 27 | 14 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-hs2-28T-FG-GR | 6400 | 250 | 320 | 140 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-hs2-30T-FG-GR | 9600 | 300 | 400 | 140 | Dhs2 | 65 | 32 | 18 | 0.8 | 4 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

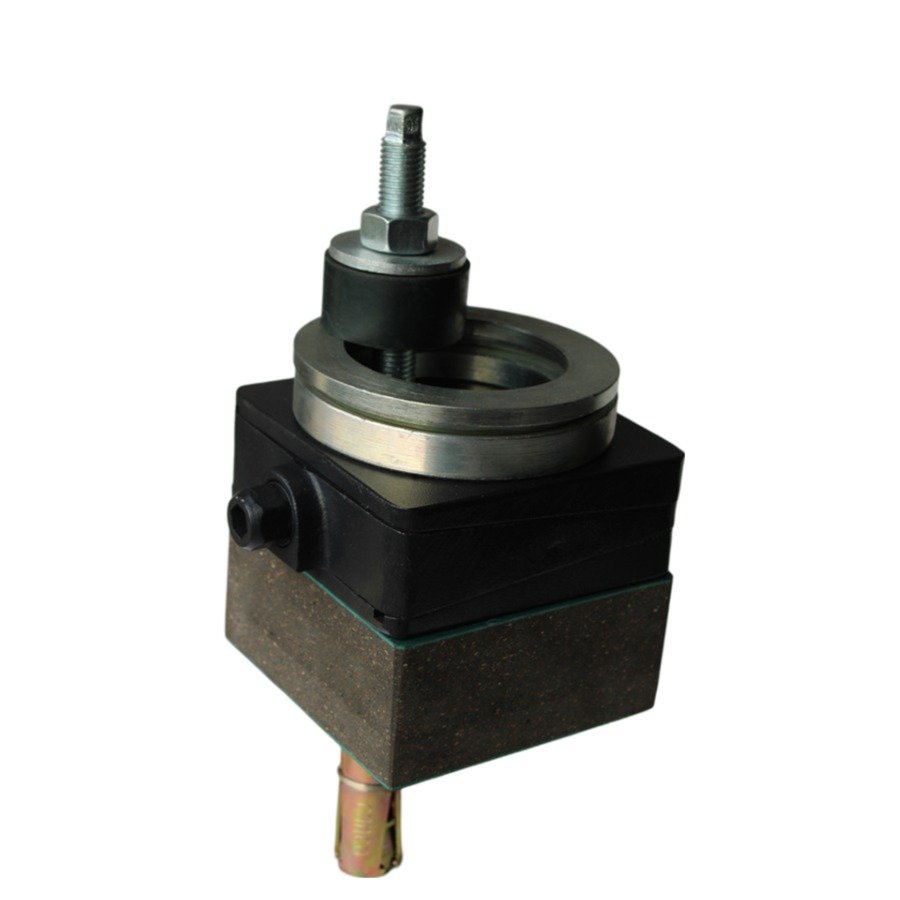

DTSP-hs3
Product
DTSP-hs3
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-hs3-22T-FG-GR | 3700 | 115 | 115 | 94 | Dhs3 | 50 | 19 | 10 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-hs3-22T-FG-GR | 6300 | 150 | 150 | 100 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-hs3-28T-FG-GR | 11200 | 200 | 200 | 100 | Dhs3 | 50 | 22 | 12 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-hs3-28T-FG-GR | 14000 | 200 | 250 | 120 | Dhs3 | 50 | 27 | 14 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-hs3-28T-FG-GR | 22400 | 250 | 320 | 125 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-hs3-30T-FG-GR | 33600 | 300 | 400 | 125 | Dhs3 | 50 | 32 | 18 | 0.8 | 7 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-hs4
Product
DTSP-hs4
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses, crushers etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-hs4-22T-FG-GR | 1600 | 115 | 115 | 94 | Dhs4 | 50 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-hs4-22T-FG-GR | 2700 | 150 | 150 | 100 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-hs4-28T-FG-GR | 4800 | 200 | 200 | 100 | Dhs4 | 50 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-hs4-28T-FG-GR | 6000 | 200 | 250 | 120 | Dhs4 | 50 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-hs4-28T-FG-GR | 9600 | 250 | 320 | 125 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-hs4-30T-FG-GR | 14400 | 300 | 400 | 125 | Dhs4 | 50 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP-hs5
Product
DTSP-hs5
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Forging Hammers, Heavy Gen Sets, Heavy Industrial machines, Test Rigs, Heavy presses etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-hs5-22T-FG-GR | 3700 | 115 | 115 | 124 | Dhs5 | 80 | 19 | 10 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-hs5-22T-FG-GR | 6300 | 150 | 150 | 130 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-hs5-28T-FG-GR | 11200 | 200 | 200 | 130 | Dhs5 | 80 | 22 | 12 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-hs5-28T-FG-GR | 14000 | 200 | 250 | 150 | Dhs5 | 80 | 27 | 14 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-hs5-28T-FG-GR | 22400 | 250 | 320 | 155 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-hs5-30T-FG-GR | 33600 | 300 | 400 | 155 | Dhs5 | 80 | 32 | 18 | 0.8 | 5 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

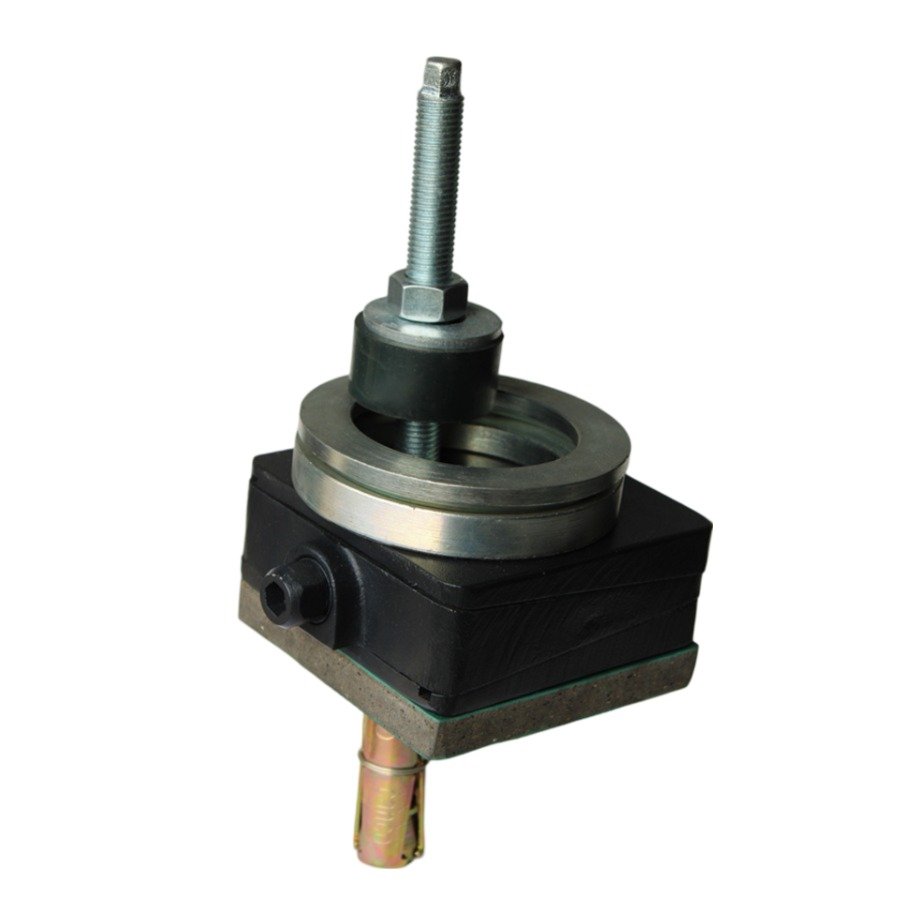

DTSP-h
Product
DTSP-h
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Very Heavy and long bed machines, long machining centres, planners etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-h-22T-FG-GR | 3970 | 115 | 115 | 59 | Dh | 15 | 19 | 10 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-h-22T-FG-GR | 6750 | 150 | 150 | 65 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-h-28T-FG-GR | 12000 | 200 | 200 | 65 | Dh | 15 | 22 | 12 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-h-28T-FG-GR | 15000 | 200 | 250 | 85 | Dh | 15 | 27 | 14 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-h-28T-FG-GR | 24000 | 250 | 320 | 90 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-h-30T-FG-GR | 36000 | 300 | 400 | 90 | Dh | 15 | 32 | 18 | 0.6 | 45 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

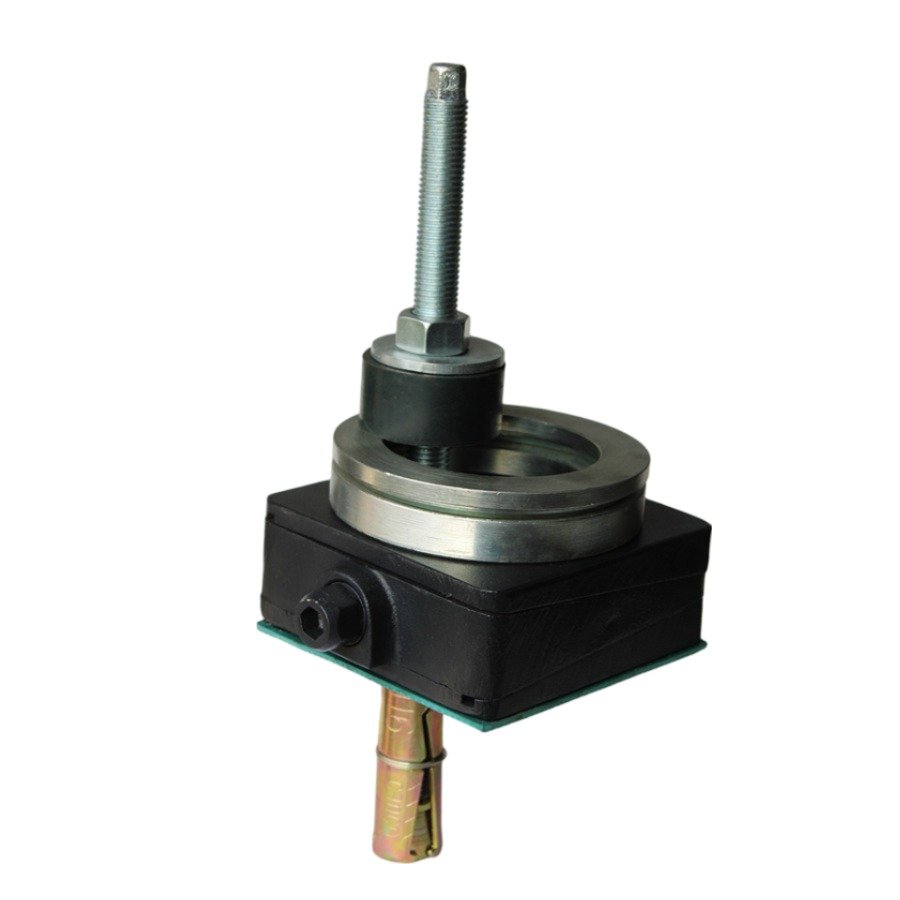

DTSP-a1
Product
DTSP-a1
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Extrusion Machine, Pressure Die Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-a1-22T-FG-GR | 2380 | 115 | 115 | 46 | Da1 | 2 | 19 | 10 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-a1-22T-FG-GR | 4050 | 150 | 150 | 52 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-a1-28T-FG-GR | 7200 | 200 | 200 | 52 | Da1 | 2 | 22 | 12 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-a1-28T-FG-GR | 9000 | 200 | 250 | 72 | Da1 | 2 | 27 | 14 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-a1-28T-FG-GR | 14400 | 250 | 320 | 77 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-a1-30T-FG-GR | 21600 | 300 | 400 | 77 | Da1 | 2 | 32 | 18 | 0.8 | 70 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |

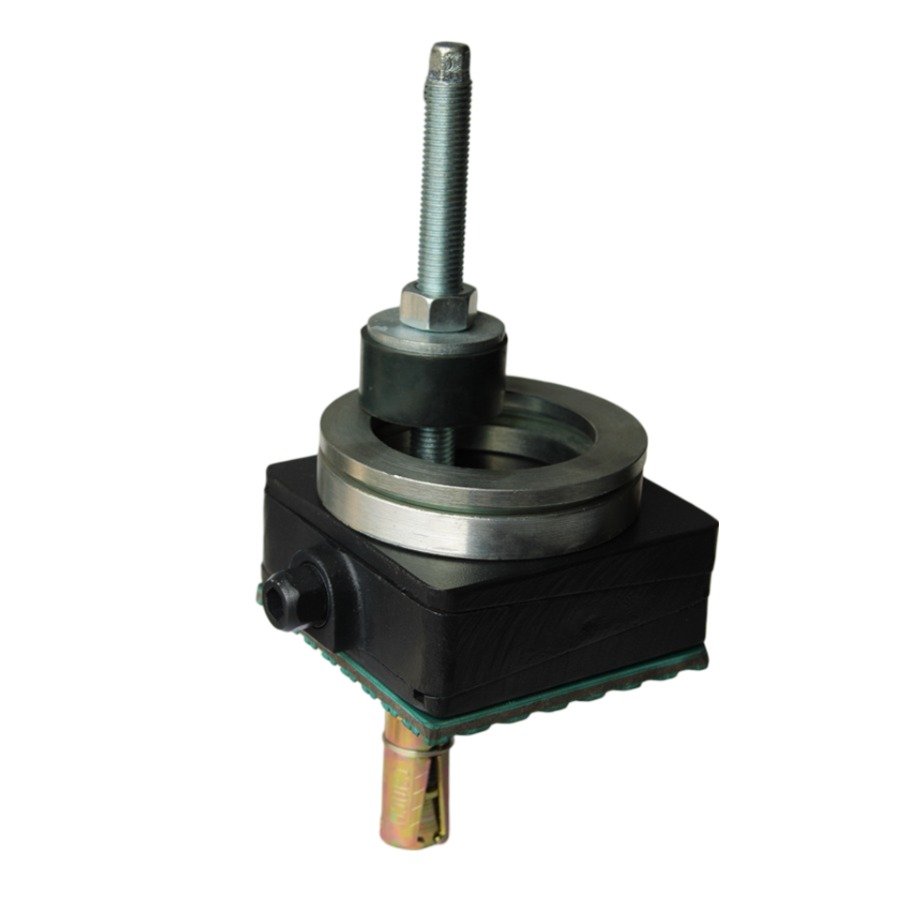

DTSP-a2
Product
DTSP-a2
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
Extrusion Machine, Pressure Die Casting Machine, Injection Moulding Machines, CNC Turning Machines, VMC Machines, Grinding Machines Etc.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Bottom Pad Thickness (Mm) | Sw1 (Mm) | Sw2 (Mm) | Coeff Of Friction Against Concrete | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-a2-22T-FG-GR | 1320 | 115 | 115 | 52 | Da2 | 8 | 19 | 10 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-a2-22T-FG-GR | 2250 | 150 | 150 | 58 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-a2-28T-FG-GR | 4000 | 200 | 200 | 58 | Da2 | 8 | 22 | 12 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-a2-28T-FG-GR | 5000 | 200 | 250 | 78 | Da2 | 8 | 27 | 14 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-a2-28T-FG-GR | 8000 | 250 | 320 | 83 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-a2-30T-FG-GR | 12000 | 300 | 400 | 83 | Da2 | 8 | 32 | 18 | 0.9 | 45 | From -16 to 90 | Dark Grey/Green | +10/-10 | 148 | 300 | 50 | 30 | 32 |
DTSP
Product
DTSP
Description
SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Application
For levelling of all Precision Machines.
Documents
| Model | Load Capacity (Kg/Pc) | Length L (Mm) | Width B (Mm) | Height H At Mean Position (Mm) | Bottom Pad Type | Sw1 (Mm) | Sw2 (Mm) | Natural Frequency At Max Load (Hz) | Temperature Range (°C) | Color | Adjst Range With Anchor Nut (Mm) | D (Mm) | Dia (Mm) | E (Mm) | Bore (Mm) | H (Mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DTSP1-22T-FG-GR | 3600 | 115 | 115 | 44 | X | 19 | 10 | X | From -16 to 90 | Dark Grey | +4/-4 | 50 | 110 | 24 | 22 | 19 |
| DTSP2-22T-FG-GR | 5800 | 150 | 150 | 50 | X | 22 | 12 | X | From -16 to 90 | Dark Grey | +5/-5 | 60 | 150 | 23 | 22 | 20 |
| DTSP3-28T-FG-GR | 10400 | 200 | 200 | 50 | X | 22 | 12 | X | From -16 to 90 | Dark Grey | +6/-6 | 75 | 200 | 27 | 28 | 22 |
| DTSP4-28T-FG-GR | 13000 | 200 | 250 | 70 | X | 27 | 14 | X | From -16 to 90 | Dark Grey | +9/-9 | 95 | 200 | 27 | 28 | 22 |
| DTSP5-28T-FG-GR | 20000 | 250 | 320 | 75 | X | 32 | 18 | X | From -16 to 90 | Dark Grey | +9/-9 | 125 | 250 | 55 | 28 | 28 |
| DTSP6-30T-FG-GR | 30000 | 300 | 400 | 75 | X | 32 | 18 | X | From -16 to 90 | Dark Grey | +10/-10 | 148 | 300 | 50 | 30 | 32 |
