DTSP2-22T-FG-GR

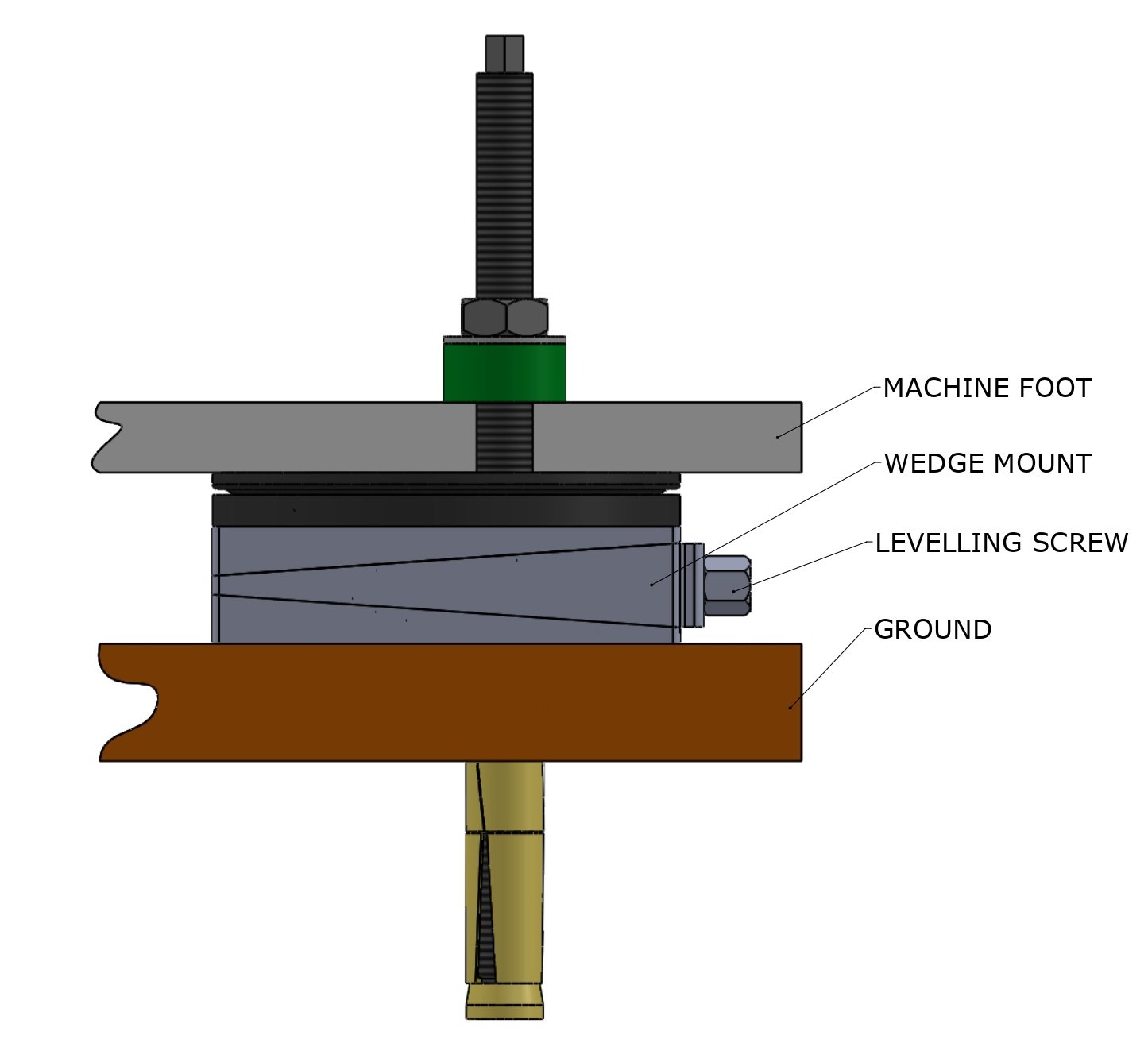

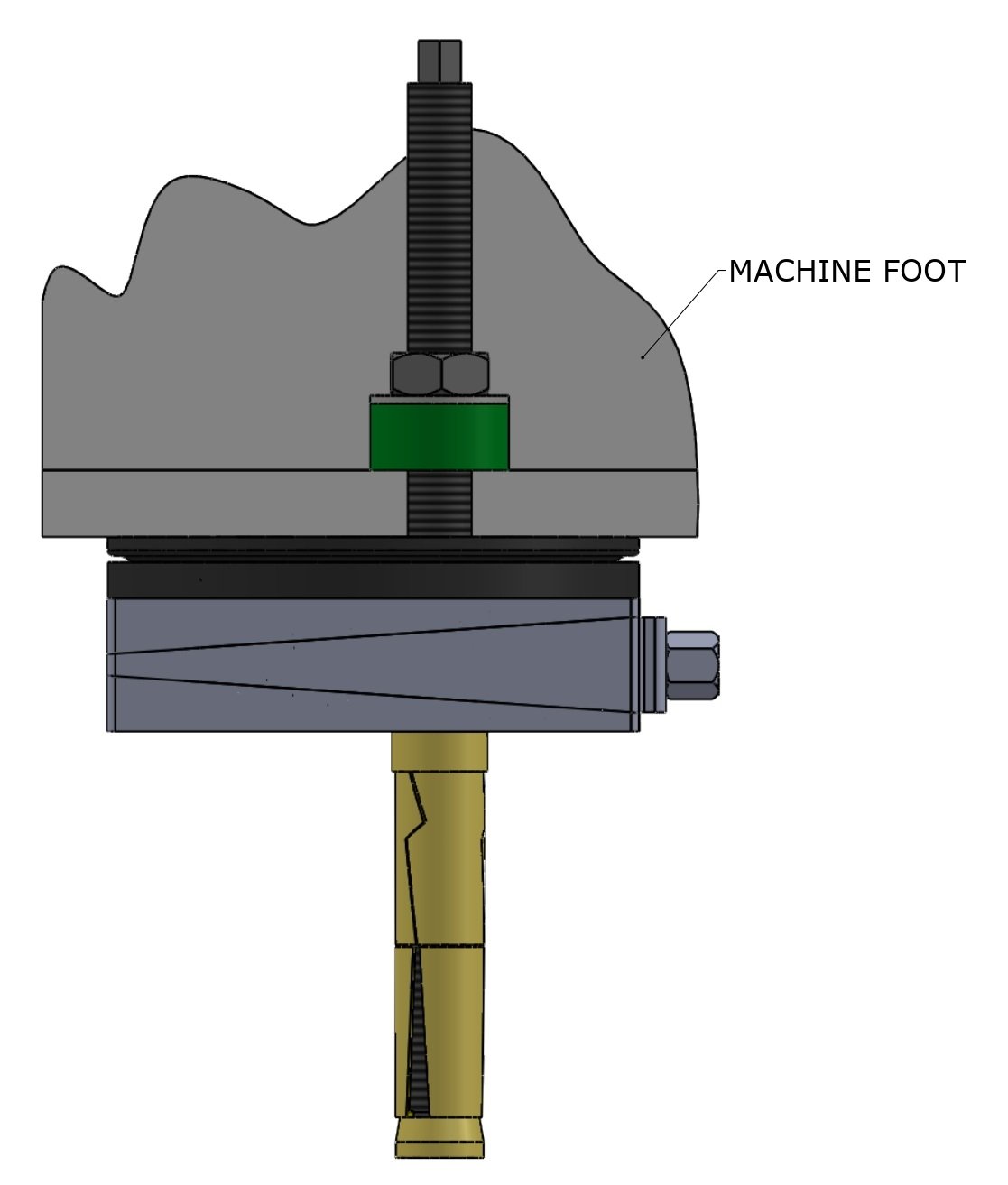

SPHERICAL POSITIONERS are designed to transmit the load of the machine to the ground through wedge mounts at 90 degrees despite the angle difference between machine base and foundation. The pressure on the insulation plates remains even. Thus, better alignment is possible. Variations are available for free standing and bolt on machine bases either with or without insulation damping. Dynemech is open to the idea of developing Customer specific requirements.
Images
Technical Data
Specifications
| Specification | Value |
|---|---|
| Applications | For levelling of all Precicion Machines. |
| Load Capacity (Kg/Pc) | 5800 |

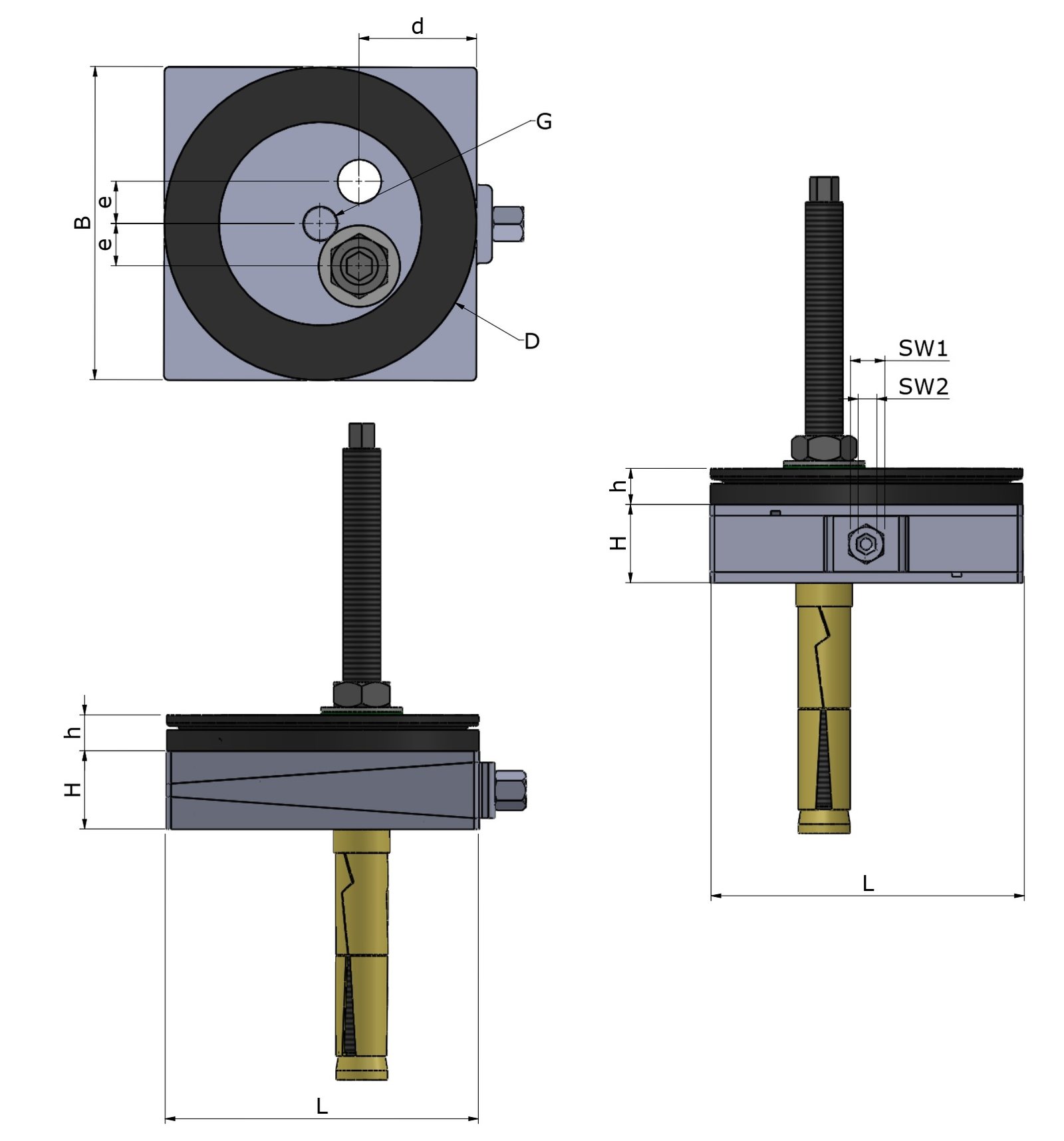

| Length L (Mm) | 150 |
| Width B (Mm) | 150 |
| Height H At Mean Position (Mm) | 50 |
| Bottom Pad Type | X |
| Sw1 (Mm) | 22 |
| Sw2 (Mm) | 12 |
| Natural Frequency At Max Load (Hz) | X |
| Temperature Range (°C) | From -16 to 90 |
| Color | Dark Grey |

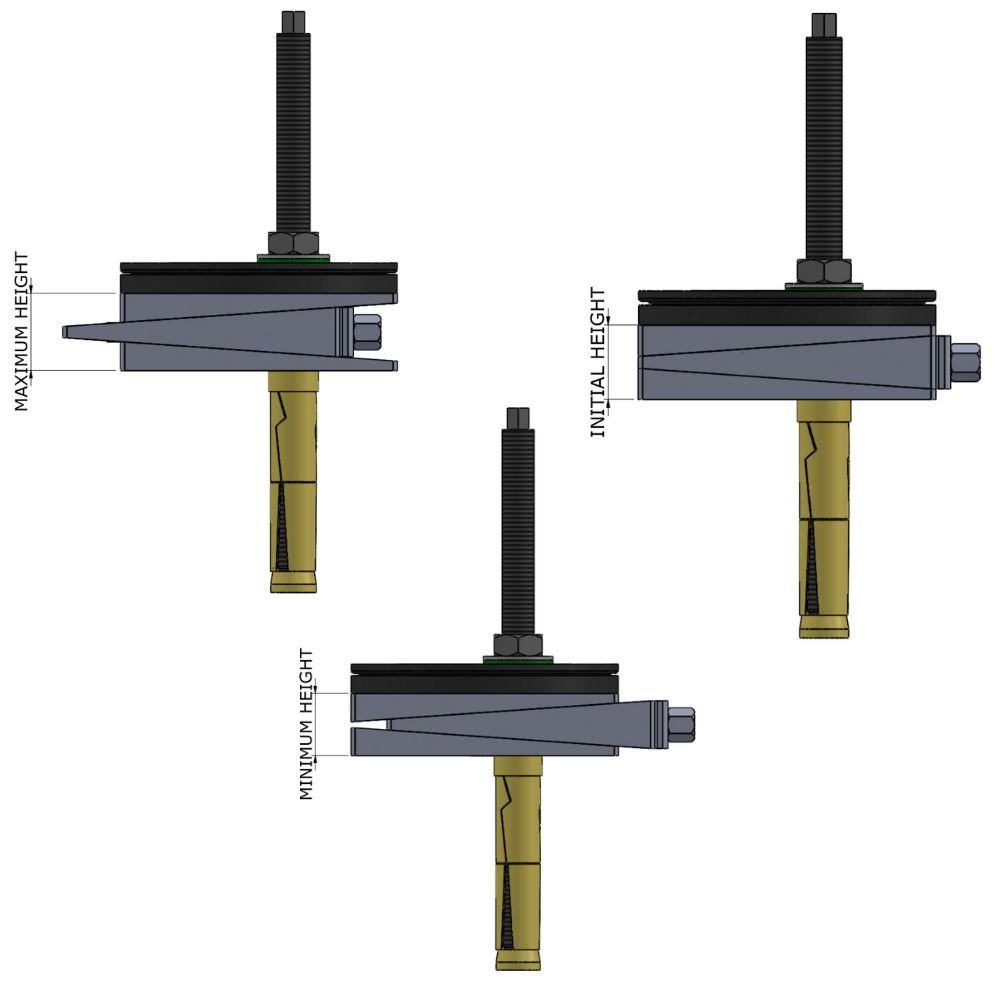

| Adjst Range With Anchor Nut (Mm) | +5/-5 |
| D (Mm) | 60 |
| Dia (Mm) | 150 |
| E (Mm) | 23 |
| Bore (Mm) | 22 |
| H (Mm) | 20 |
